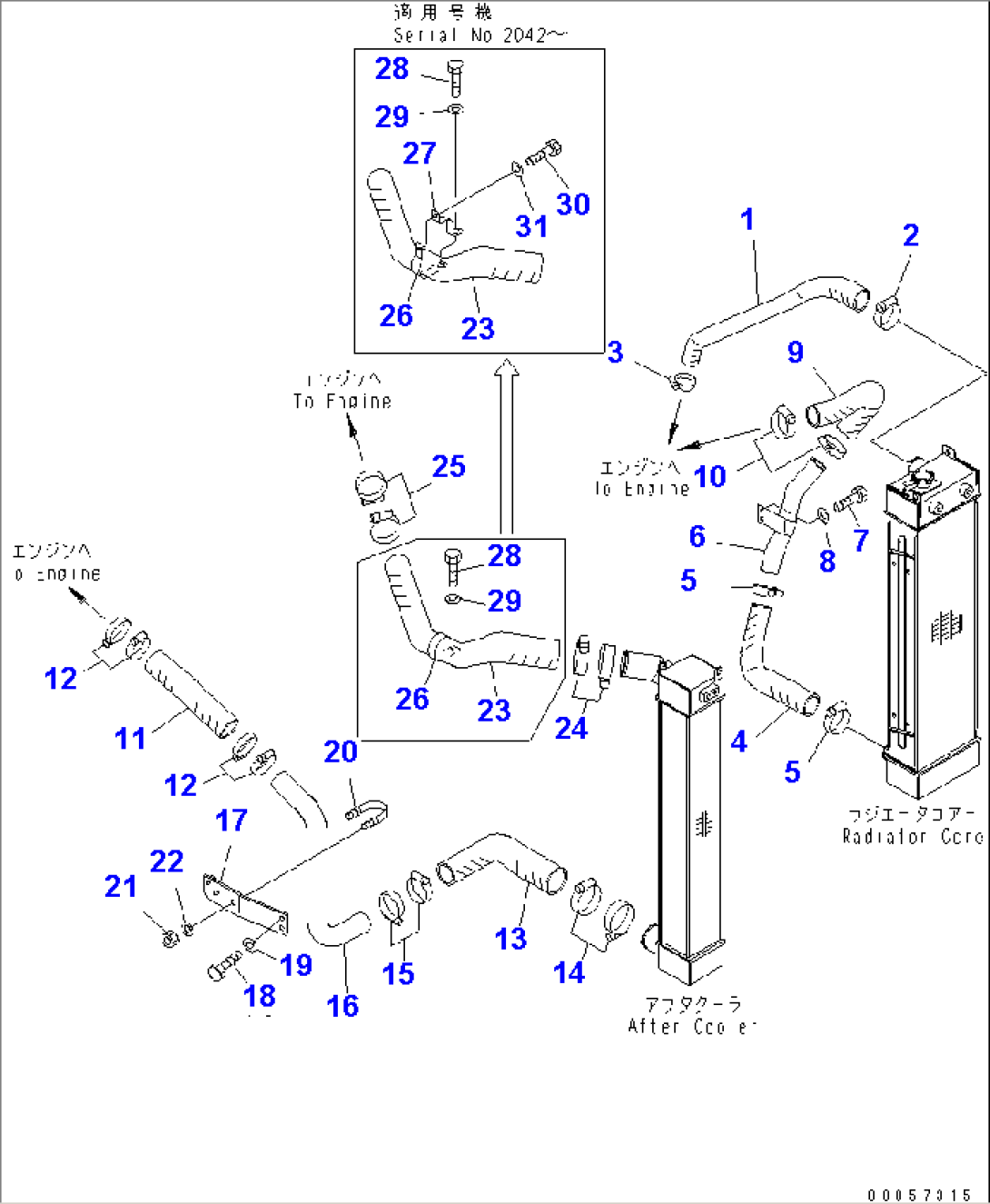

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-03-13310 | HOSE | 1501- | |
| 2 | 07289-00055 | CLAMP | 1501- | |
| 3 | 07289-00045 | CLAMP | 1501- | |
| 4 | 22B-03-13320 | HOSE | 1501- | |
| 5 | 07289-00055 | CLAMP | 1501- | |
| 6 | 22B-03-13360 | TUBE | 1501- | |
| 7 | 01010-81025 | BOLT | 1501- | |
| 8 | 01643-31032 | WASHER | 1501- | |
| 9 | 22B-03-13350 | HOSE | 1501- | |
| 10 | 07289-00055 | CLAMP | 1501- | |
| 11 | 22B-01-13110 | HOSE | 1501- | |
| 12 | 07299-00055 | CLAMP | 1501- | |
| 13 | 22B-01-13130 | HOSE | 1501- | |
| 14 | 07299-00070 | CLAMP | 1501- | |
| 15 | 07299-00055 | CLAMP | 1501- | |
| 16 | 22B-01-13140 | TUBE | 1501- | |
| 17 | 22B-01-13170 | PLATE | 1501- | |
| 18 | 01010-81020 | BOLT | 1501- | |
| 19 | 01643-31032 | WASHER | 1501- | |
| 20 | 07283-35150 | CLIP | 1501- | |
| 21 | 01597-01009 | NUT | 1501- | |
| 22 | 01643-31032 | WASHER | 1501- | |
| 23 | 22B-01-13120 | HOSE | 1501- | |
| 24 | 07299-00070 | CLAMP | 1501- | |
| 25 | 07299-00055 | CLAMP | 1501- | |
| 26 | 22B-01-13260 | CLIP | 2042- | |
| 26 | 208-62-38370 | CLIP | 1501-2041 | |
| 27 | 22B-01-13270 | CLIP | 2042- | |
| 28 | 01010-81030 | BOLT | 2042- | |
| 28 | 01010-81025 | BOLT | 1501-2041 | |
| 29 | 01643-31032 | WASHER | 1501- | |
| 30 | 01010-81020 | BOLT | 2042- | |
| 31 | 01643-31032 | WASHER | 2042- |
