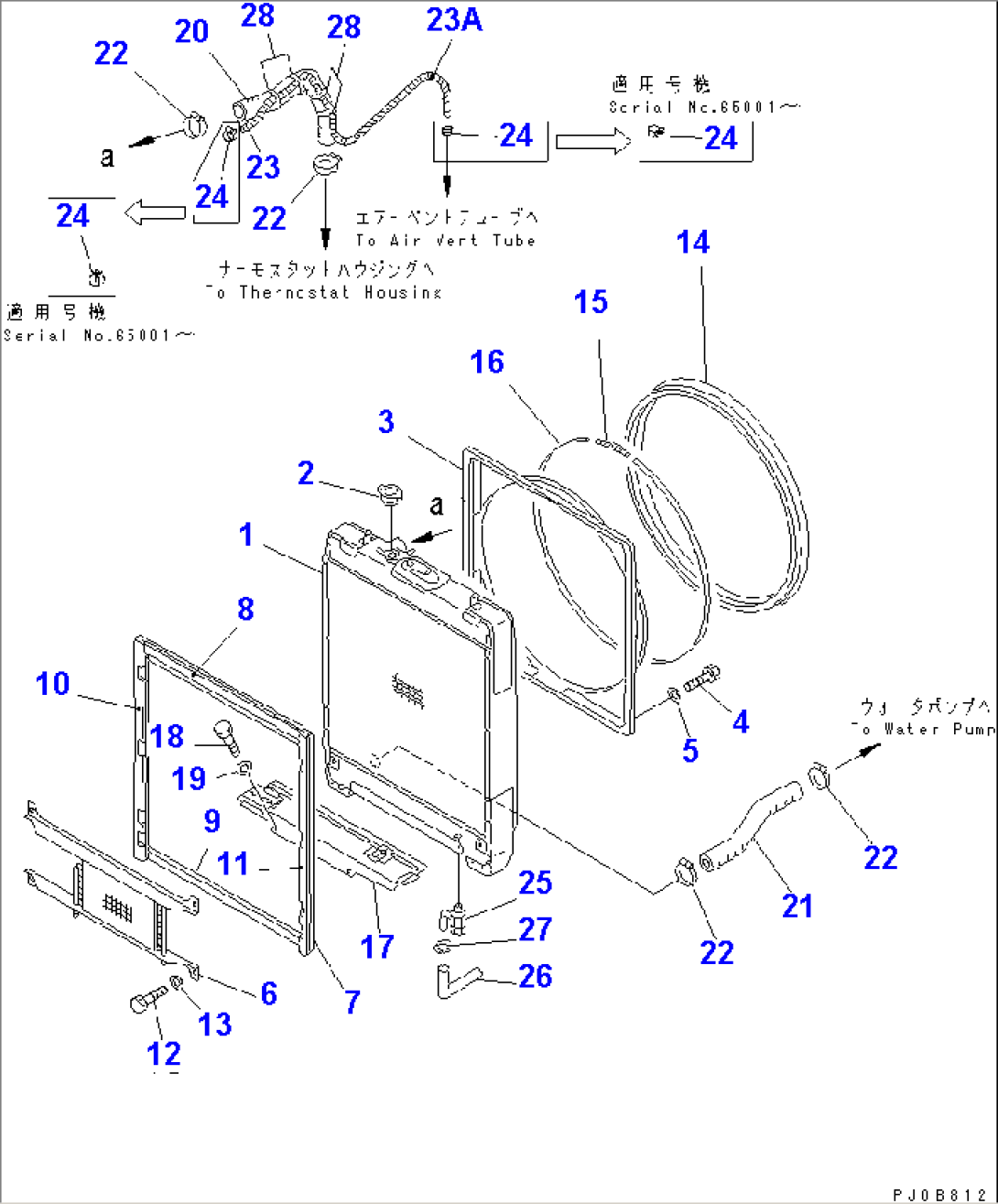

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-03-11214 | RADIATOR ASS'Y | 3377- | |
| 14X-03-11213 | RADIATOR ASS'Y | 3034-3376 | ||
| 2 | 14X-03-11140 | CAP | 3034- | |
| 3 | 14X-03-14212 | SHROUD | 3034- | |
| 4 | 01010-81020 | BOLT | 3034- | |
| 5 | 01643-31032 | WASHER | 3034- | |
| 6 | 14Z-03-11231 | OIL COOLER ASS'Y | 3475- | |
| 14Z-03-11230 | OIL COOLER ASS'Y | 3034-3474 | ||
| 7 | 14X-03-16111 | PLATE | 3034- | |
| 8 | 14X-03-16121 | SHEET | 3034- | |
| 9 | 14X-03-16131 | SHEET | 3034- | |
| 10 | 14X-03-16141 | SHEET | 3034- | |
| 11 | 14X-03-16151 | SHEET | 3034- | |
| 12 | 01010-81020 | BOLT | 3034- | |
| 13 | 01643-31032 | WASHER | 3034- | |
| 14 | 14X-03-14230 | SEAL | 3034- | |
| 15 | 14X-03-14121 | CLAMP | 3034- | |
| 16 | 14X-03-14220 | BAND | 3034- | |
| 17 | 14X-03-16182 | BAFFLE | 3034- | |
| 18 | 01010-81225 | BOLT | 3034- | |
| 19 | 01643-31232 | WASHER | 3034- | |
| 20 | 14X-03-15211 | HOSE | 3034- | |
| 21 | 14X-03-15220 | HOSE | 3034- | |
| 22 | 07289-00070 | CLAMP | 4001- | |
| 208-09-11120 | CLAMP | 3034-400 | ||
| 23 | 07261-20909 | HOSE | 3034- | |
| 23A | 08017-31908 | CONDUIT | 4001- | |
| 24 | 07285-00150 | CLIP | 4001- | |
| 07280-01920 | CLAMP | 3034-4000 | ||
| 25 | 07730-40004 | VALVE | 3034- | |
| 26 | 07270-01520 | TUBE | 3034- | |
| 27 | 07280-01920 | CLAMP | 3034- | |
| 28 | 134-03-61410 | BAND | 4001- | |
| 08034-00834 | BAND | 3034-4000 |
