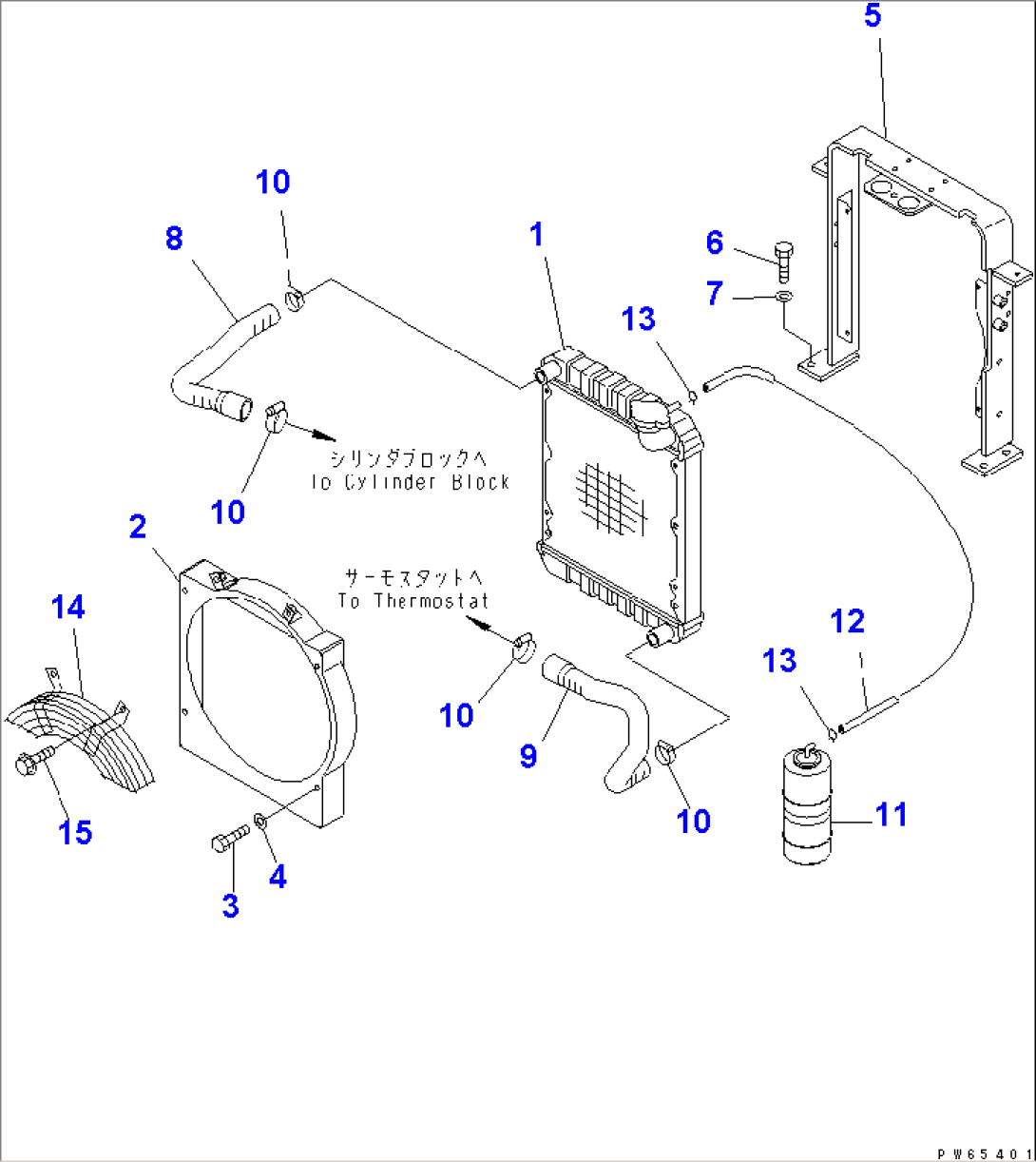

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21S-03-22102 | RADIATOR ASS'Y | 15001- | |
| 1 | 201-03-51310 | CAP | 15001- | |
| 1 | 205-03-62660 | PLUG,DRAIN | 15001- | |
| 1 | 07000-11007 | O-RING | 15001- | |
| 1 | 362-03-11360 | TUBE | 15001- | |
| 2 | 21S-03-22211 | SHROUD | 15001- | |
| 3 | 01010-50655 | BOLT | 15001- | |
| 4 | 01643-30623 | WASHER | 15001- | |
| 5 | 21S-03-22222 | BRACKET | 15001- | |
| 6 | 01010-50825 | BOLT | 15001- | |
| 7 | 01643-30823 | WASHER | 15001- | |
| 8 | 21S-03-22312 | HOSE | 15001- | |
| 9 | 21S-03-22322 | HOSE | 15001- | |
| 10 | 07281-00359 | CLAMP | 15001- | |
| 11 | YM121450-44510 | SUB TANK ASS'Y,SUB | 15001- | |
| 12 | 21S-03-22120 | HOSE | 15001- | |
| 13 | 07285-00115 | CLIP | 15001- | |
| 14 | 21S-03-22242 | GUARD,FAN | 21581- | |
| 14 | 21S-03-22241 | GUARD,FAN | 15001-21580 | |
| 15 | 01435-00816 | BOLT | 15001- |
