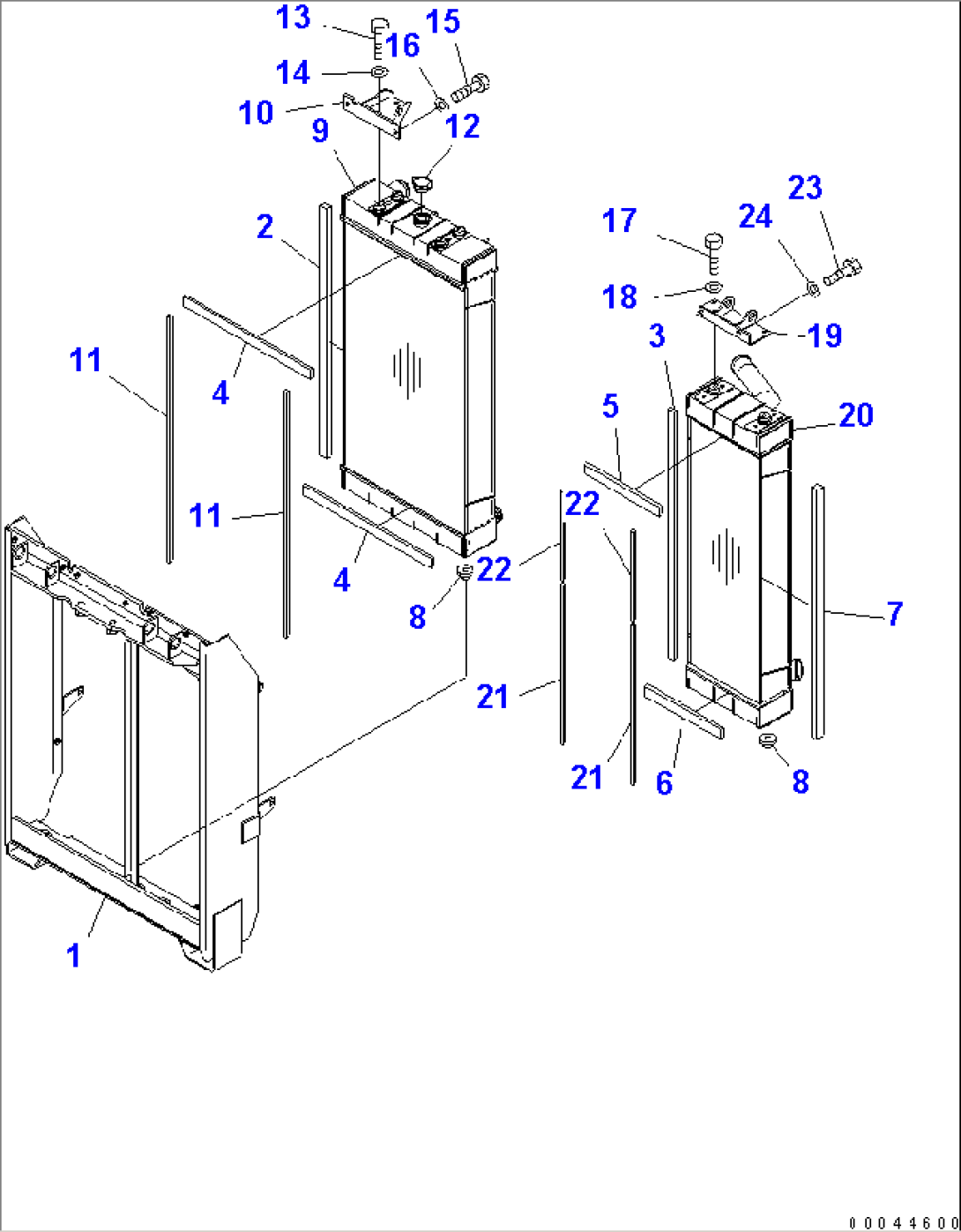

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-03-35311 | FRAME | 69001- | |
| 2 | 14X-03-35580 | SEAL | 69001- | |
| 3 | 14X-03-35590 | SEAL | 69001- | |
| 4 | 14X-03-35670 | SEAL | 69001- | |
| 5 | 14X-03-35640 | SEAL | 69001- | |
| 6 | 14X-03-35650 | SEAL | 69001- | |
| 7 | 14X-03-35660 | SEAL | 69001- | |
| 8 | 20Y-03-41580 | CUSHION | 69001- | |
| 14X-03-35111 | RADIATOR ASS'Y | 69001- | ||
| 9 | \6\ | RADIATOR CORE A. | 69001- | |
| 10 | 14X-03-35421 | BRACKET | 69001- | |
| 11 | 14X-03-35610 | SEAL | 69001- | |
| 12 | 20U-03-21540 | CAP | 69001- | |
| 13 | 01010-81025 | BOLT | 69001- | |
| 14 | 01643-31032 | WASHER | 69001- | |
| 15 | 01010-81235 | BOLT | 69001- | |
| 16 | 01643-31232 | WASHER | 69001- | |
| 14X-03-35131 | AFTER COOLER ASS'Y | 69001- | ||
| 17 | 01010-81025 | BOLT | 69001- | |
| 18 | 01643-31032 | WASHER | 69001- | |
| 19 | 14X-03-35471 | BRACKET | 69001- | |
| 20 | \6\ | AFTER COOLER | 69001- | |
| 21 | 14X-03-35620 | SEAL | 69001- | |
| 22 | 14X-03-35630 | SEAL | 69001- | |
| 23 | 01010-81235 | BOLT | 69001- | |
| 24 | 01643-31232 | WASHER | 69001- |
