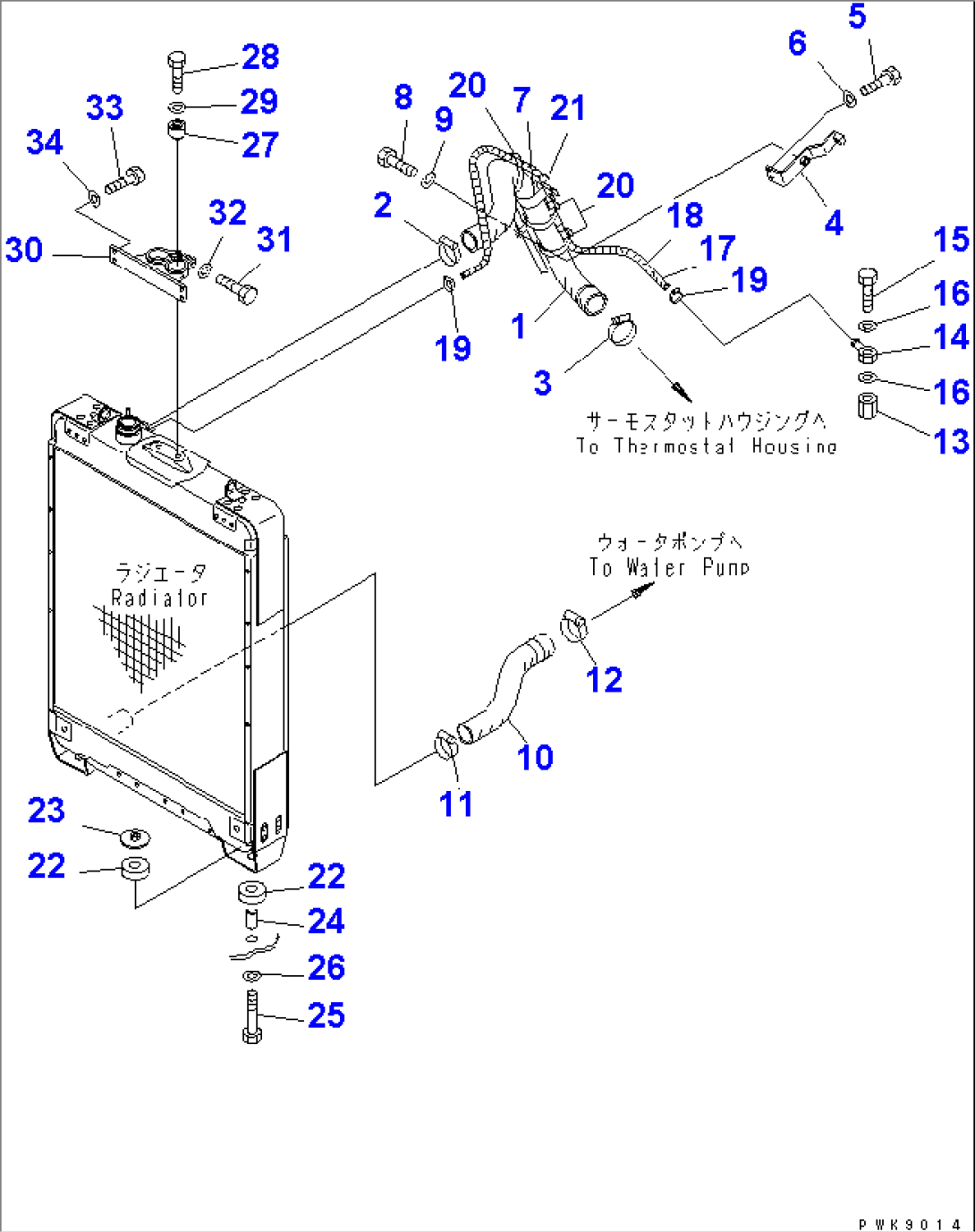

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-03-61181 | HOSE,UPPER | 1001- | |
| 2 | 07289-00070 | CLAMP | 1001- | |
| 3 | 07289-00070 | CLAMP | 1001- | |
| 4 | 134-03-61310 | BRACKET | 1001- | |
| 5 | 01010-81025 | BOLT | 1001- | |
| 6 | 01643-31032 | WASHER | 1001- | |
| 7 | 568-03-12240 | CLIP | 1170- | |
| 7 | 198-911-4480 | CLIP | 1001-1169 | |
| 8 | 01010-81225 | BOLT | 1001- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 134-03-61190 | HOSE,LOWER | 1001- | |
| 11 | 07289-00070 | CLAMP | 1001- | |
| 12 | 07289-00070 | CLAMP | 1001- | |
| 13 | 134-03-61242 | NIPPLE | 1001- | |
| 14 | 6204-73-5750 | JOINT | 1001- | |
| 15 | 07206-31014 | BOLT | 1001- | |
| 16 | 07005-01412 | SEAL, WASHER | 1001- | |
| 134-03-61390 | HOSE | 1001- | ||
| 17 | 07261-20910 | HOSE | 1001- | |
| 18 | 08017-31909 | CONDUIT | 1001- | |
| 19 | 07285-00150 | CLIP | 1168- | |
| 19 | 07280-01920 | CLAMP | 1001-1167 | |
| 20 | 134-03-61410 | BAND | 1001- | |
| 21 | 195-49-31470 | CLIP | 1001- | |
| 22 | 205-54-71680 | CUSHION | 1001- | |
| 23 | 134-03-61130 | PLATE | 1001- | |
| 24 | 6110-25-6290 | SPACER | 1001- | |
| 25 | 01010-81280 | BOLT | 1001- | |
| 26 | 01643-31232 | WASHER | 1001- | |
| 27 | 135-03-12110 | DAMPER | 1001- | |
| 28 | 01010-81455 | BOLT | 1001- | |
| 29 | 01643-31445 | WASHER | 1001- | |
| 30 | 134-03-61123 | BRACKET | 1001- | |
| 31 | 01010-81035 | BOLT | 1001- | |
| 32 | 01643-31032 | WASHER | 1001- | |
| 33 | 01010-81035 | BOLT | 1001- | |
| 34 | 01643-31032 | WASHER | 1001- |
