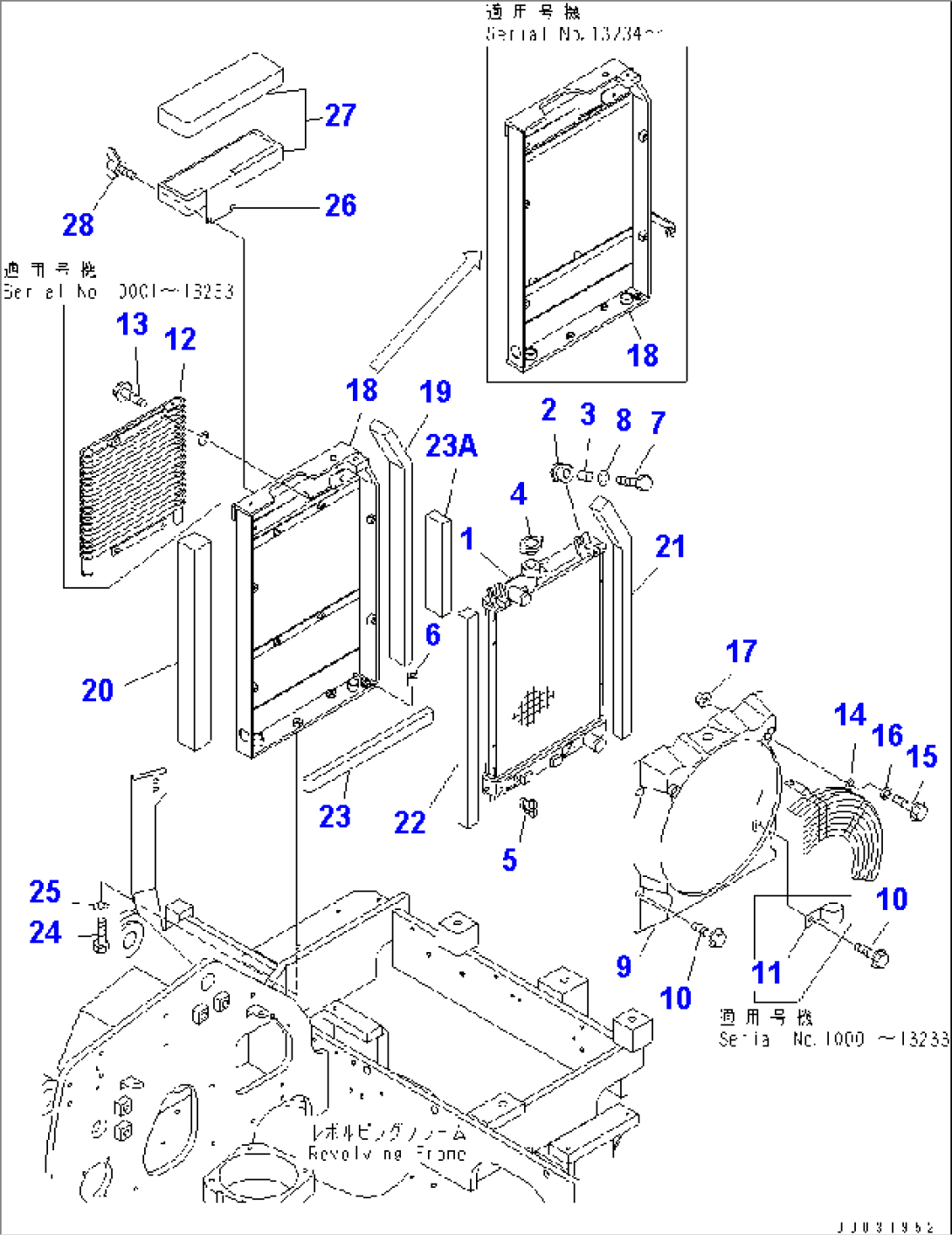

| Item | Part No. | Part Name | Qty | Serial No. |
| 22K-03-18102 | RADIATOR ASS'Y | 13234- | ||
| 22K-03-18100 | RADIATOR ASS'Y | 10001-13233 | ||
| 1 | 20S-03-81110 | RADIATOR | 10001- | |
| 2 | 20T-03-81130 | CUSHION | 10001- | |
| 3 | 20T-03-81140 | COLLAR | 10001- | |
| 4 | 20T-03-81150 | CAP | 10001- | |
| 5 | 20T-03-82660 | VALVE,DRAIN | 10001- | |
| 6 | 20C-03-31191 | CUSHION | 10001- | |
| 7 | 01010-80830 | BOLT | 10001- | |
| 8 | 01643-30823 | WASHER | 10001- | |
| 9 | 20S-03-71120 | SHROUD | 10001- | |
| 10 | 01435-20814 | BOLT | 10001- | |
| 11 | 08036-11210 | CLIP | 10001-13233 | |
| 12 | 21U-03-31130 | OIL COOLER ASS'Y | 10001-13233 | |
| 13 | 01435-20820 | BOLT | 10001-13233 | |
| 14 | 22K-03-18110 | NET,WIRE | 10001- | |
| 15 | 01435-20814 | BOLT | 10001- | |
| 16 | 20S-03-11270 | COLLAR | 10001- | |
| 17 | 01584-00806 | NUT | 10001- | |
| 18 | 22K-03-18121 | FRAME | 13234- | |
| 18 | 20C-03-31117 | FRAME | 11555-13233 | |
| 18 | 20C-03-31116 | FRAME | 11513-11554 | |
| 18 | 20C-03-31115 | FRAME | 10343-11512 | |
| 19 | 20C-03-31141 | SHEET | 10001- | |
| 20 | 20C-03-31151 | SHEET | 10001- | |
| 21 | 20C-03-31161 | SHEET | 10001- | |
| 22 | 20C-03-31170 | SHEET | 10001- | |
| 23 | 20C-03-31230 | SHEET | 10001- | |
| 23A | 20C-03-31240 | SHEET | 10001- | |
| 24 | 01010-81035 | BOLT | 10001- | |
| 25 | 01643-31032 | WASHER | 10001- | |
| 20C-03-31200 | BRACKET ASS'Y | 10001- | ||
| 26 | 20C-03-31210 | BRACKET | 10001- | |
| 27 | 20C-03-31220 | SHEET | 10001- | |
| 28 | 01434-10820 | BOLT, WING | 10001- |
