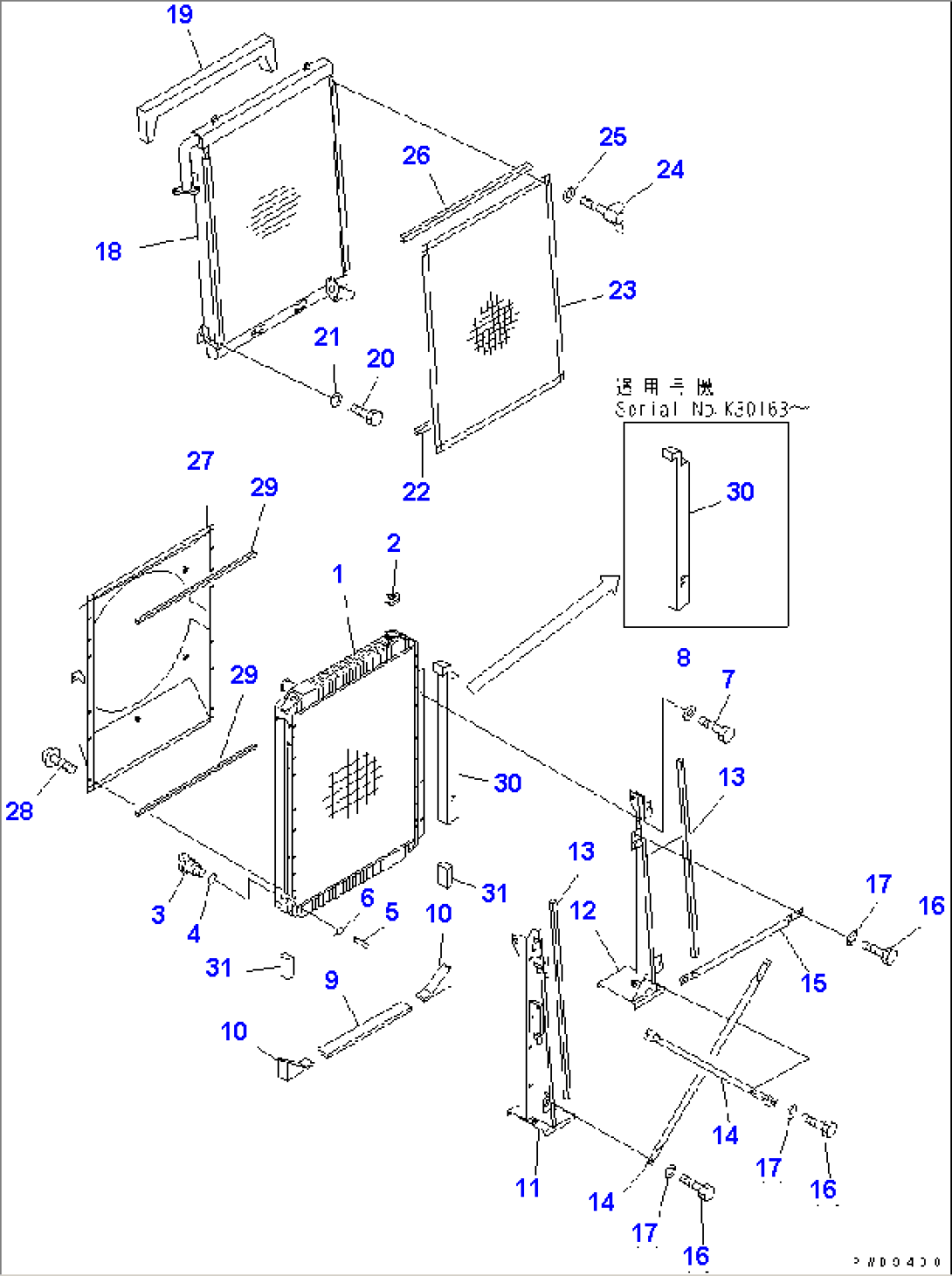

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-03-21910 | CORE ASS'Y | K30001- | |
| 2 | 20Y-03-22110 | CAP | K30001- | |
| 3 | 205-03-62660 | PLUG | K30001- | |
| 4 | 07000-01007 | O-RING | K30001- | |
| 5 | 203-03-41410 | HOSE | K30001- | |
| 6 | 20Y-03-11330 | CLIP | K30001- | |
| 7 | 01010-81025 | BOLT | K30001- | |
| 8 | 01643-31032 | WASHER | K30001- | |
| 9 | 20Y-03-21340 | SEAL | K30001- | |
| 10 | 20Y-03-21350 | SEAL | K30001- | |
| 11 | 206-03-K1161 | BRACKET | K30001- | |
| 12 | 206-03-K1171 | BRACKET | K30001- | |
| 13 | 20Y-03-21320 | SEAL | K30001- | |
| 14 | 20Y-03-21410 | STAY | K30001- | |
| 15 | 20Y-03-21420 | STAY | K30001- | |
| 16 | 01010-81230 | BOLT | K30001- | |
| 17 | 01643-31232 | WASHER | K30001- | |
| 18 | 206-03-K1180 | OIL COOLER ASS'Y | K30001- | |
| 19 | 20Y-03-21360 | SEAL | K30001- | |
| 20 | 01010-81225 | BOLT | K30001- | |
| 21 | 01643-31232 | WASHER | K30001- | |
| 22 | 20Y-03-21430 | SEAL | K30001- | |
| 23 | 20Y-03-21241 | NET | K30001- | |
| 24 | 01434-10616 | BOLT¤ WING | K30001- | |
| 25 | 01643-30823 | WASHER | K30001- | |
| 26 | 20Y-03-21430 | SEAL | K30001- | |
| 27 | 206-03-K1150 | SHROUD | K30001- | |
| 28 | 01435-20816 | BOLT | K30001- | |
| 29 | 20Y-03-14110 | SEAL | K30001- | |
| 30 | 206-03-K1212 | SHEET | K30163- | |
| 206-03-K1210 | SHEET | K30001-K30162 | ||
| 31 | 20Y-03-21260 | SEAL | K30001- |
