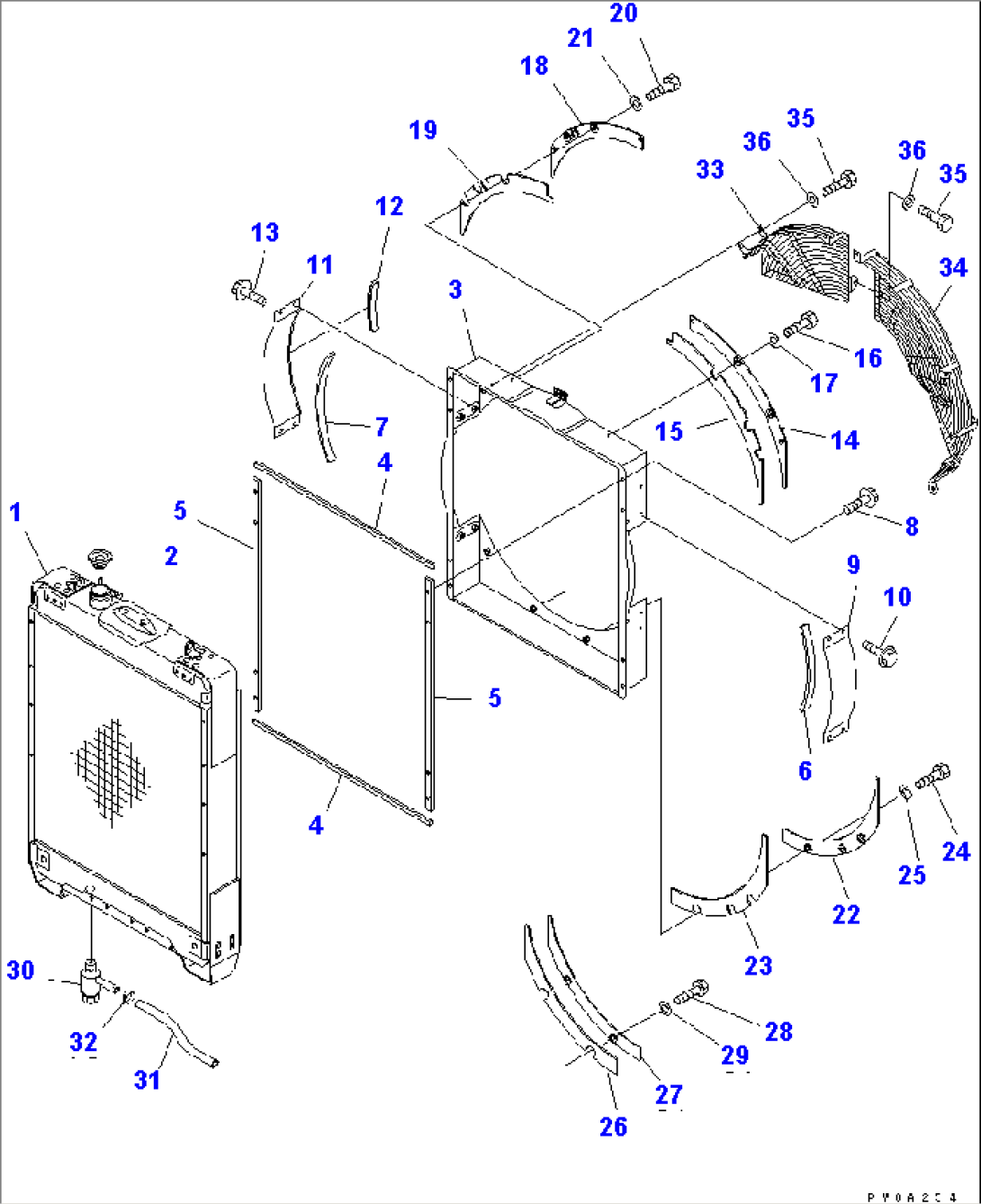

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-03-71511 | RADIATOR CORE ASS'Y | B3001- | |
| 2 | 14X-03-11140 | CAP | B3001- | |
| 3 | 134-03-61142 | SHROUD | B3001- | |
| 4 | 134-03-61250 | SHEET | B3001- | |
| 5 | 134-03-61261 | SHEET | B3001- | |
| 6 | 134-03-61360 | SHEET,L.H. | B3001- | |
| 7 | 134-03-61370 | SHEET,R.H. | B3001- | |
| 8 | 01435-21014 | BOLT | B3001- | |
| 9 | 134-03-61271 | COVER,L.H. | B3001- | |
| 10 | 01435-21014 | BOLT | B3001- | |
| 11 | 134-03-61281 | COVER,R.H. | B3001- | |
| 12 | 134-03-61470 | RUBBER | B3001- | |
| 13 | 01435-21014 | BOLT | B3001- | |
| 14 | 134-03-61430 | COVER | B3001- | |
| 15 | 134-03-61530 | RUBBER | B3001- | |
| 16 | 01010-81030 | BOLT | B3001- | |
| 17 | 01643-31032 | WASHER | B3001- | |
| 18 | 134-03-61440 | COVER | B3001- | |
| 19 | 134-03-61540 | RUBBER | B3001- | |
| 20 | 01010-81030 | BOLT | B3001- | |
| 21 | 01643-31032 | WASHER | B3001- | |
| 22 | 134-03-61450 | COVER | B3001- | |
| 23 | 134-03-61550 | RUBBER | B3001- | |
| 24 | 01010-81030 | BOLT | B3001- | |
| 25 | 01643-31032 | WASHER | B3001- | |
| 26 | 134-03-61460 | COVER | B3001- | |
| 27 | 134-03-61560 | RUBBER | B3001- | |
| 28 | 01010-81030 | BOLT | B3001- | |
| 29 | 01643-31032 | WASHER | B3001- | |
| 30 | 07730-50004 | VALVE | B3001- | |
| 31 | 07270-01525 | TUBE | B3001- | |
| 32 | 07280-01920 | CLAMP | B3001- | |
| 33 | 134-03-61570 | GUARD,R.H. | B3001- | |
| 34 | 134-03-61341 | GUARD,L.H. | B3001- | |
| 35 | 01010-81030 | BOLT | B3001- | |
| 36 | 01643-31032 | WASHER | B3001- |
