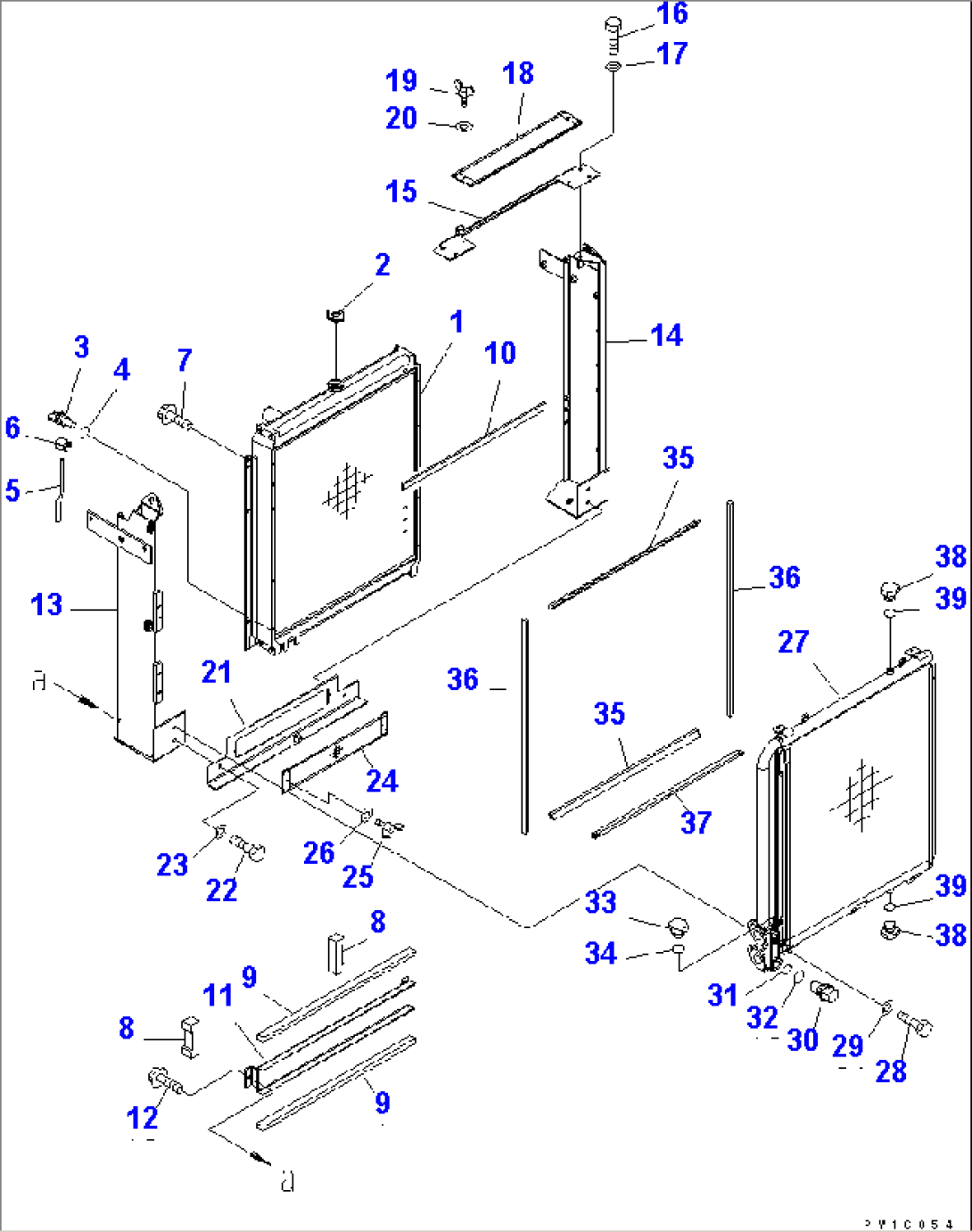

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-03-31111 | RADIATOR CORE ASS'Y | 1001- | |
| 2 | 20Y-03-22110 | CAP | 1001- | |
| 3 | 20Y-03-21981 | PLUG | 1001- | |
| 4 | 07000-11007 | O-RING | 1001- | |
| 5 | 203-03-41410 | HOSE | 1001- | |
| 6 | 20Y-03-11330 | CLIP | 1001- | |
| 7 | 01435-20816 | BOLT | 1001- | |
| 8 | 20Y-03-31242 | SEAL | 1005- | |
| 9 | 20Y-03-31252 | SEAL | 1005- | |
| 10 | 20Y-03-31260 | SEAL | 1001- | |
| 11 | 20Y-03-31490 | BRACKET | 1005- | |
| 12 | 01435-20816 | BOLT | 1005- | |
| 13 | 20Y-03-31152 | FRAME | 1005- | |
| 14 | 20Y-03-31162 | FRAME | 1005- | |
| 15 | 20Y-03-31170 | FRAME | 1001- | |
| 16 | 01010-81025 | BOLT | 1001- | |
| 17 | 01643-31032 | WASHER | 1001- | |
| 18 | 22U-03-21191 | NET | 1001- | |
| 19 | 01434-10616 | BOLT, WING | 1001- | |
| 20 | 01643-30623 | WASHER | 1001- | |
| 21 | 20Y-03-31181 | PLATE | 1001- | |
| 22 | 01010-81025 | BOLT | 1001- | |
| 23 | 01643-31032 | WASHER | 1001- | |
| 24 | 20Y-03-31420 | NET | 1001- | |
| 25 | 01434-10616 | BOLT, WING | 1001- | |
| 26 | 01643-30623 | WASHER | 1001- | |
| 27 | 20Y-03-31121 | OIL COOLER ASS'Y | 1001- | |
| 28 | 01010-81030 | BOLT | 1001- | |
| 29 | 01643-31032 | WASHER | 1001- | |
| 30 | 20Y-03-31480 | VALVE ASS'Y | 1001- | |
| 31 | 07000-12020 | O-RING | 1001- | |
| 32 | 07002-13034 | O-RING | 1001- | |
| 33 | 07040-11812 | PLUG | 1001- | |
| 34 | 07002-11823 | O-RING | 1001- | |
| 35 | 22U-03-21740 | SHEET | 1001- | |
| 36 | 20Y-03-31290 | SEAL | 1001- | |
| 37 | 22U-03-21760 | SHEET | 1001- | |
| 38 | 07040-11409 | PLUG | 1001- | |
| 39 | 07002-11423 | O-RING | 1001- |
