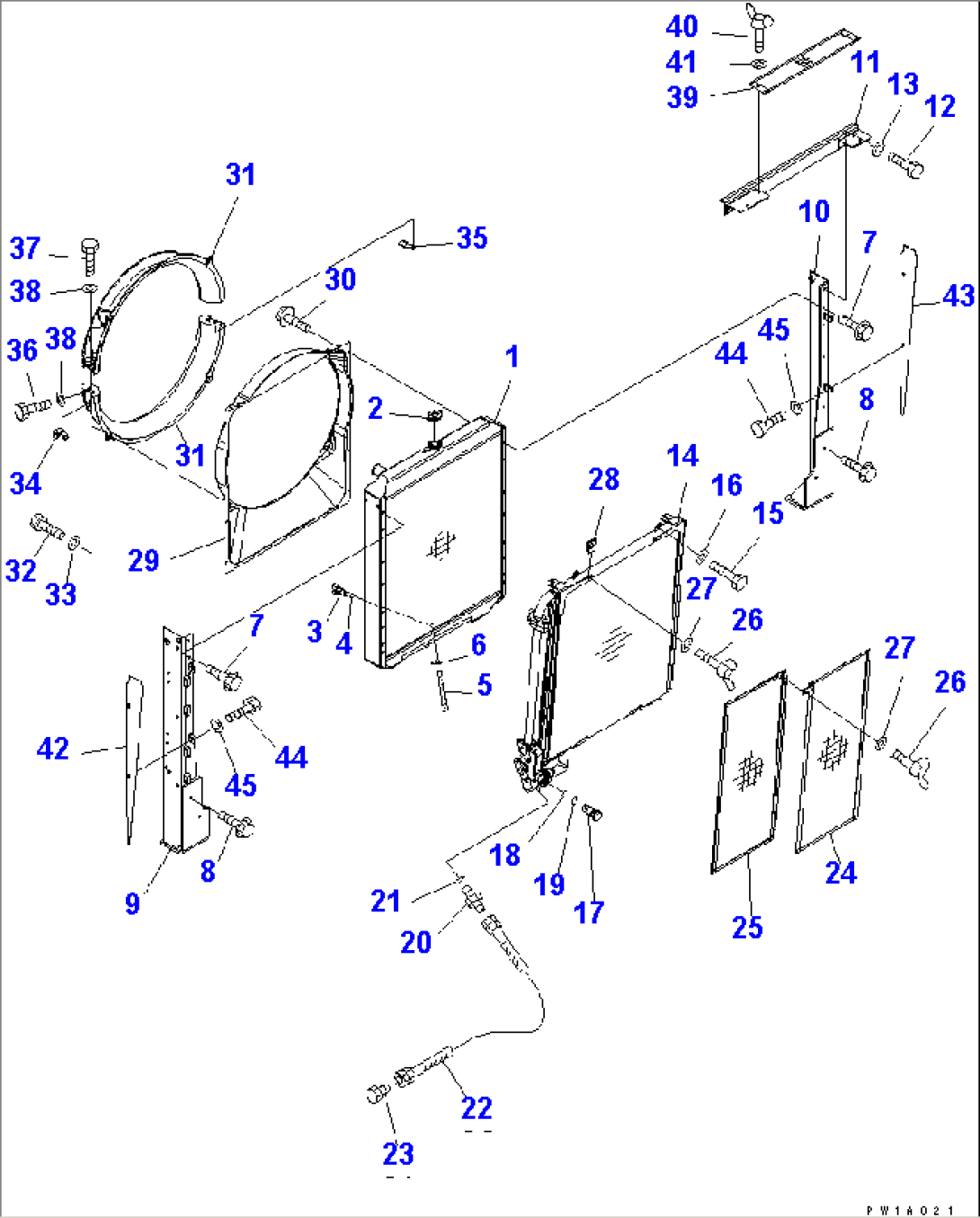

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-03-21111 | RADIATOR CORE ASS'Y | 20001- | |
| 2 | 20Y-03-22110 | CAP | 20001- | |
| 3 | 20Y-03-21980 | PLUG | 20001- | |
| 4 | 07000-01007 | O-RING | 20001- | |
| 5 | 203-03-41410 | HOSE | 20001- | |
| 6 | 20Y-03-11330 | CLIP | 20001- | |
| 7 | 01435-20816 | BOLT | 20001- | |
| 8 | 01435-20825 | BOLT | 20001- | |
| 9 | 22U-03-21132 | FRAME | 20001- | |
| 10 | 22U-03-21141 | FRAME | 20001- | |
| 11 | 22U-03-21151 | FRAME | 20001- | |
| 12 | 01010-81230 | BOLT | 20001- | |
| 13 | 01643-31232 | WASHER | 20001- | |
| 14 | 22U-03-21121 | OIL COOLER | 20001- | |
| 15 | 01010-81030 | BOLT | 20001- | |
| 16 | 01643-31032 | WASHER | 20001- | |
| 17 | 22U-03-21790 | VALVE ASS'Y | 20001- | |
| 18 | 07000-73026 | O-RING | 20001- | |
| 19 | 07002-13634 | O-RING | 20001- | |
| 20 | 07230-20210 | UNION | 20001-20004 | |
| 21 | 07002-11423 | O-RING | 20001-20004 | |
| 22 | 07102-202A3 | HOSE | 20001-20004 | |
| 23 | 07376-50210 | PLUG | 20001-20004 | |
| 24 | 22U-03-21181 | NET | 20001- | |
| 25 | 22U-03-21310 | NET | 20001- | |
| 26 | 01434-10616 | BOLT¤ WING | 20001- | |
| 27 | 01643-30823 | WASHER | 20001- | |
| 28 | 20T-03-81180 | NUT | 20001- | |
| 29 | 22U-03-21391 | SHROUD | 20001- | |
| 30 | 01435-20816 | BOLT | 20001- | |
| 31 | 22U-03-21321 | SHROUD | 20001- | |
| 32 | 01010-81020 | BOLT | 20001- | |
| 33 | 203-54-56970 | WASHER | 20001- | |
| 34 | 22U-03-21770 | BRACKET | 20001- | |
| 35 | 22U-03-21780 | BRACKET | 20001- | |
| 36 | 01010-81025 | BOLT | 20001- | |
| 37 | 01010-81030 | BOLT | 20001- | |
| 38 | 01643-31032 | WASHER | 20001- | |
| 39 | 22U-03-21191 | NET | 20001- | |
| 40 | 01434-10616 | BOLT¤ WING | 20001- | |
| 41 | 01643-30623 | WASHER | 20001- | |
| 42 | 22U-03-21212 | PLATE | 20001- | |
| 43 | 22U-03-21221 | PLATE | 20001- | |
| 44 | 01010-81020 | BOLT | 20001- | |
| 45 | 01643-31032 | WASHER | 20001- |
