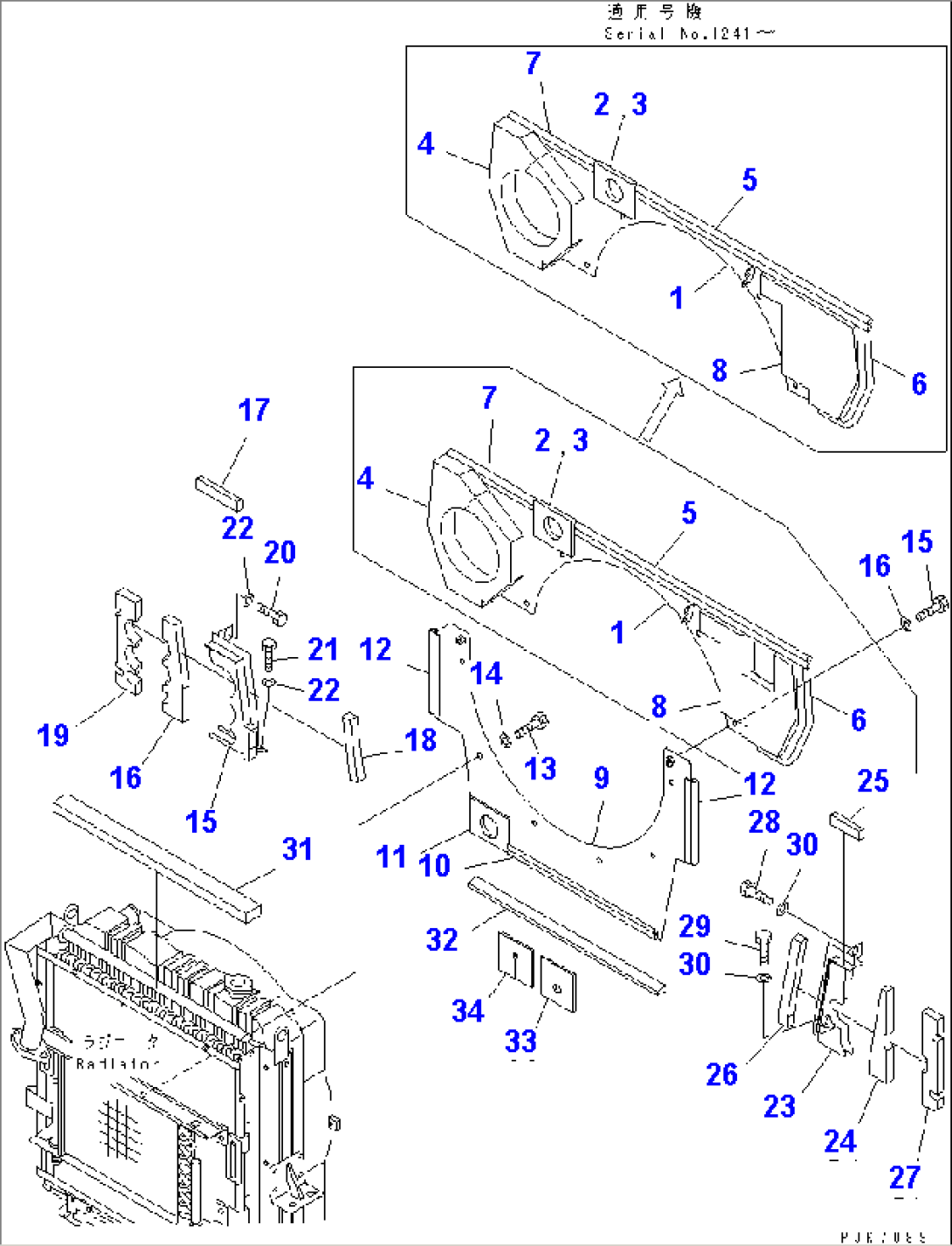

Item | Part No. | Part Name | Qty | Serial No. |
1 | 21J-03-11185 | COVER | 1241- | |
21J-03-11184 | COVER | 1201-1240 | ||
2 | 21J-03-11222 | SEAL | 1201- | |
3 | 21J-03-11530 | SEAL | 1201- | |
4 | 21J-03-11273 | SEAL | 1001- | |
5 | 21J-03-11282 | SEAL | 1001- | |
6 | 21J-03-11570 | SEAL | 1201- | |
7 | 21J-03-11390 | SEAL | 1001- | |
8 | 21J-03-11511 | SEAL | 1241- | |
21J-03-11510 | SEAL | 1201-1241 | ||
9 | 21J-03-11194 | COVER | 1201- | |
10 | 21J-03-11232 | SEAL | 1201- | |
11 | 21J-03-11580 | SEAL | 1201- | |
12 | 21J-03-11381 | SEAL | 1201- | |
13 | 01010-81020 | BOLT | 1201- | |
14 | 01643-31032 | WASHER | 1201- | |
15 | 21J-03-11630 | CLAMP | 1201- | |
16 | 21J-03-11670 | CLAMP | 1201- | |
17 | 21J-03-11590 | SHEET | 1201- | |
18 | 21J-03-11730 | SEAL | 1201- | |
19 | 21J-03-11690 | CLAMP | 1201- | |
20 | 01010-81230 | BOLT | 1201- | |
21 | 01010-81225 | BOLT | 1201- | |
22 | 01643-31232 | WASHER | 1201- | |
23 | 21J-03-11620 | CLAMP | 1201- | |
24 | 21J-03-11660 | CLAMP | 1201- | |
25 | 21J-03-11610 | SHEET | 1201- | |
26 | 21J-03-11720 | SEAL | 1201- | |
27 | 21J-03-11680 | CLAMP | 1201- | |
28 | 01010-81230 | BOLT | 1201- | |
29 | 01010-81225 | BOLT | 1201- | |
30 | 01643-31232 | WASHER | 1201- | |
31 | 21J-03-11450 | SEAL | 1001- | |
32 | 21J-03-11540 | SHEET | 1201- | |
33 | 21J-03-11550 | SEAL | 1201- | |
34 | 21J-03-11560 | SEAL | 1201- |
