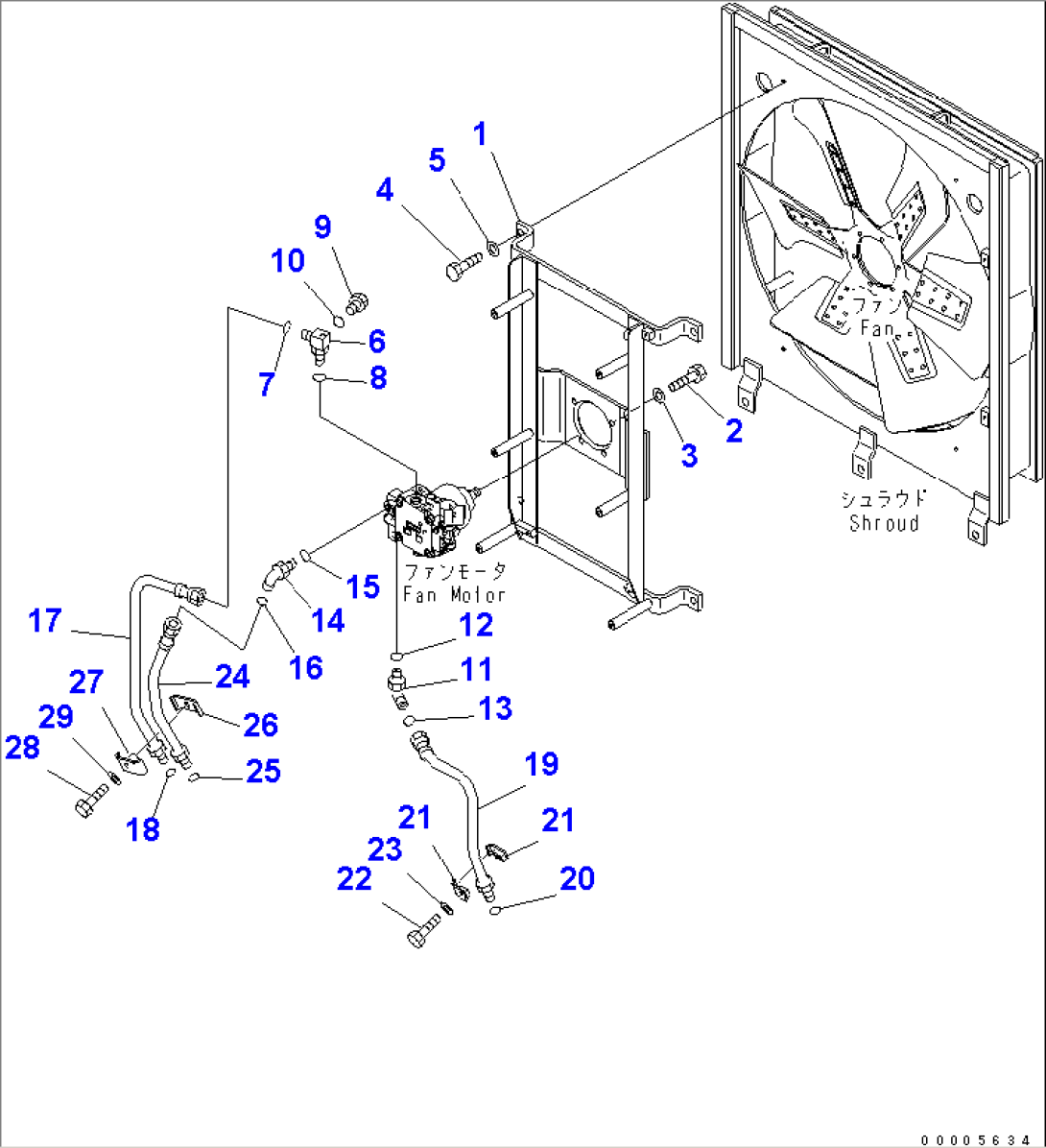

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-03-34114 | BRACKET | 69001- | |
| 2 | 01010-81235 | BOLT | 69001- | |
| 3 | 01643-31232 | WASHER | 69001- | |
| 4 | 01010-81235 | BOLT | 69001- | |
| 5 | 01643-31232 | WASHER | 69001- | |
| 6 | 421-09-31110 | ELBOW | 69001- | |
| 7 | 02896-11015 | O-RING | 69001- | |
| 8 | 07002-12434 | O-RING | 69001- | |
| 9 | 07040-11007 | PLUG | 69001- | |
| 10 | 07002-11023 | O-RING | 69001- | |
| 11 | 02782-10628 | ELBOW | 69109- | |
| 11 | 02782-10522 | ELBOW | 69001-69108 | |
| 12 | 07002-12434 | O-RING | 69001- | |
| 13 | 02896-11018 | O-RING | 69109- | |
| 13 | 02896-11015 | O-RING | 69001-69108 | |
| 14 | 02782-1042A | ELBOW | 69001- | |
| 15 | 07002-11823 | O-RING | 69001- | |
| 16 | 02896-11012 | O-RING | 69001- | |
| 17 | 14X-62-32512 | TUBE | 69001- | |
| 18 | 02896-11015 | O-RING | 69001- | |
| 19 | 14X-62-32524 | TUBE | 69109- | |
| 19 | 14X-62-32523 | TUBE | 69001-69108 | |
| 20 | 02896-11018 | O-RING | 69109- | |
| 20 | 02896-11015 | O-RING | 69001-69108 | |
| 21 | 14X-62-35840 | CLAMP | 69109- | |
| 21 | 14X-62-32540 | CLAMP | 69001-69108 | |
| 22 | 01010-81055 | BOLT | 69109- | |
| 22 | 01010-81050 | BOLT | 69001-69108 | |
| 23 | 01643-31032 | WASHER | 69001- | |
| 24 | 14X-62-32534 | TUBE | 69001- | |
| 25 | 02896-11012 | O-RING | 69001- | |
| 26 | 575-62-15610 | CLAMP | 69001- | |
| 27 | 14X-03-31830 | CLAMP | 69001- | |
| 28 | 01010-81050 | BOLT | 69001- | |
| 29 | 01643-31032 | WASHER | 69001- |
