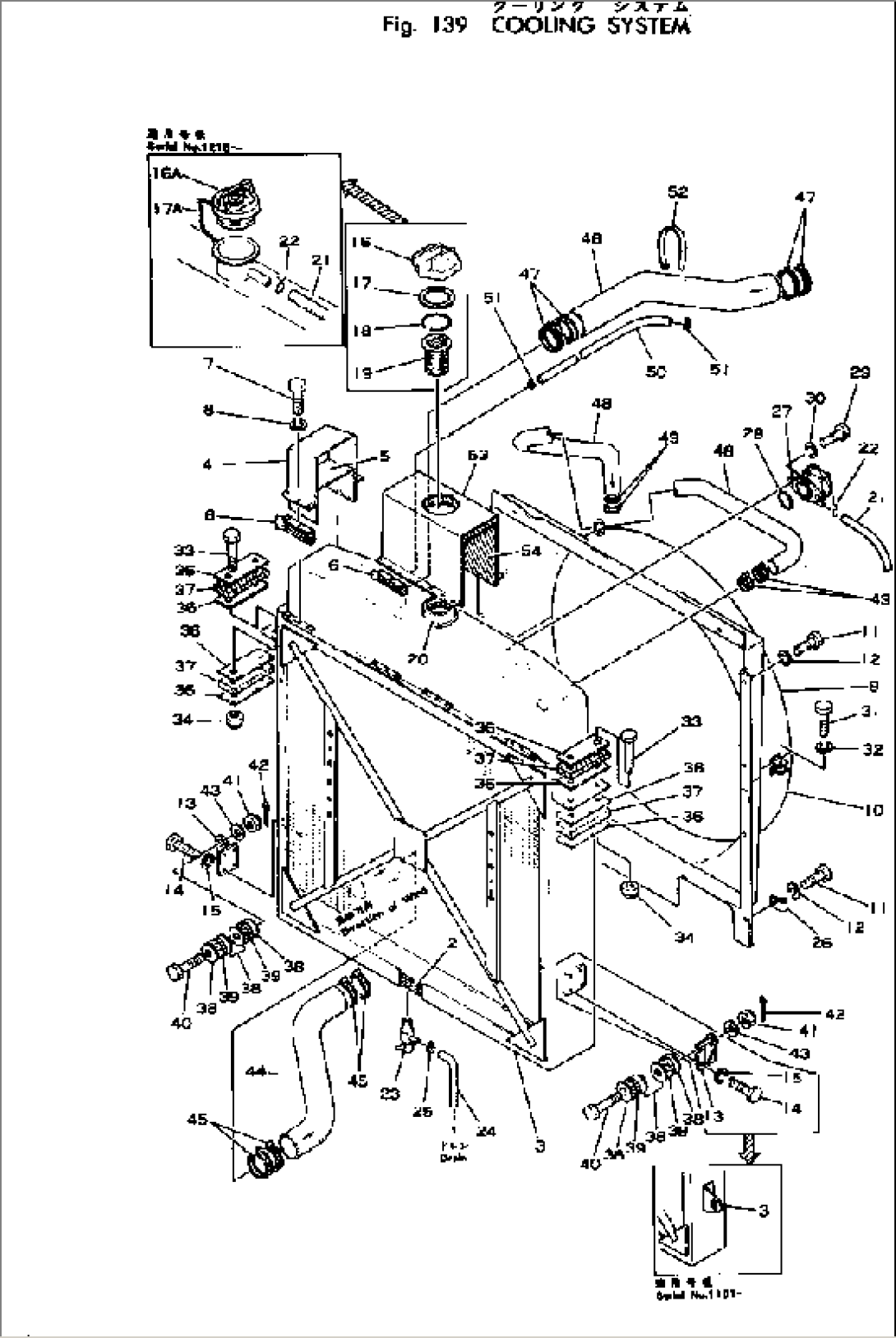

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-03-11103 | RADIATOR ASS'Y | 1215- | ||
| \0\567-03-11102 | RADIATOR ASS'Y | 1101-1214 | ||
| \0\567-03-11101 | RADIATOR ASS'Y | 1002-1100 | ||
| 1 | 567-03-11114 | CORE ASS'Y | 1215- | |
| 1 | 567-03-11113 | CORE ASS'Y | 1101-1214 | |
| 1 | \0\567-03-11112 | CORE ASS'Y | 1002-1100 | |
| 1 | (\2\567-03-11111) | CORE ASS'Y | (1002-1076) | |
| 2 | 567-03-11151 | CUSHION | 1101- | |
| 2 | 567-03-11150 | CUSHION | 1002-1100 | |
| 3 | 567-03-11121 | FRAME | 1002- | |
| 4 | 567-03-11180 | CLAMP | 1002- | |
| 5 | 281-03-12551 | SEAT | 1002- | |
| 6 | 281-03-12560 | SHIM, 0.6MM | 1002- | |
| 7 | 01010-30822 | BOLT | 1002- | |
| 8 | 01602-00825 | WASHER | 1002- | |
| 9 | 567-03-11160 | SHROUD | 1002- | |
| 10 | 567-03-11170 | SHROUD | 1002- | |
| 11 | 01010-31016 | BOLT | 1002- | |
| 12 | 01602-01030 | WASHER | 1002- | |
| 13 | 281-03-12150 | BRACKET | 1002-1100 | |
| 14 | 01010-31020 | BOLT | 1002-1100 | |
| 15 | 01602-01030 | WASHER | 1002-1100 | |
| 16 | 07053-10000 | CAP | 1002-1214 | |
| 16A | 566-03-11540 | CAP | 1215- | |
| 17 | 07053-00002 | GASKET | 1002-1214 | |
| 17A | 566-95-37320 | CHAIN | 1215- | |
| 18 | 07057-03271 | RING | 1002-1214 | |
| 19 | 07056-00048 | STRAINER | 1002-1214 | |
| 20 | 07055-00080 | FILLER | 1002-1214 | |
| 21 | 566-03-11241 | TUBE | 1215- | |
| 21 | 281-03-12570 | PIPE | 1002-1214 | |
| 22 | 04059-01010 | WIRE | 1002- | |
| 23 | 195-03-13241 | VALVE | 1002- | |
| 24 | 07260-01440 | HOSE | 1002- | |
| 25 | 07280-02523 | CLAMP | 1002- | |
| 26 | 281-03-12620 | CLAMP | 1002- | |
| 27 | 154-03-11681 | VALVE | 1002-1214 | |
| 28 | 07000-03045 | O-RING | 1002-1214 | |
| 29 | 01010-31025 | BOLT | 1002-1214 | |
| 30 | 01602-01030 | WASHER | 1002-1214 | |
| 31 | 01010-31020 | BOLT | 1002- | |
| 32 | 01602-01030 | WASHER | 1002- | |
| 33 | 01050-31680 | BOLT | 1002- | |
| 34 | 01599-01617 | NUT | 1002- | |
| 36 | 411-03-11310 | PLATE | 1002- | |
| 37 | 411-03-11320 | CUSHION | 1002- | |
| 38 | 411-03-11330 | PLATE | 1002- | |
| 39 | 411-03-11340 | CUSHION | 1002- | |
| 40 | 01050-31680 | BOLT | 1002- | |
| 41 | 01599-01617 | NUT | 1002- | |
| 43 | 01643-01845 | WASHER | 1002- | |
| 44 | 281-03-13120 | HOSE,OUTLET | 1002- | |
| 45 | 07281-00909 | CLAMP | 1215- | |
| 45 | \0\07280-08029 | CLAMP | 1002-1214 | |
| 46 | 567-03-11321 | HOSE,INLET | 1002- | |
| 47 | 07281-00809 | CLAMP | 1215- | |
| 47 | \0\07280-07429 | CLAMP | 1002-1214 | |
| 48 | 07261-22615 | HOSE | 1215- | |
| 48 | \0\567-03-11330 | HOSE | 1002-1214 | |
| 49 | 07281-00419 | CLAMP | 1215- | |
| 49 | \0\07280-03826 | CLAMP | 1002-1214 | |
| 50 | 07260-20990 | HOSE | 1002- | |
| 51 | 07281-00197 | CLAMP | 1215- | |
| 51 | \0\07280-01920 | CLAMP | 1002-1214 | |
| 52 | 281-06-16710 | BAND | 1002- | |
| 53 | 567-03-11340 | CLAMP,UPPER | 1002- | |
| 54 | 567-03-11350 | RUBBER | 1002- |
