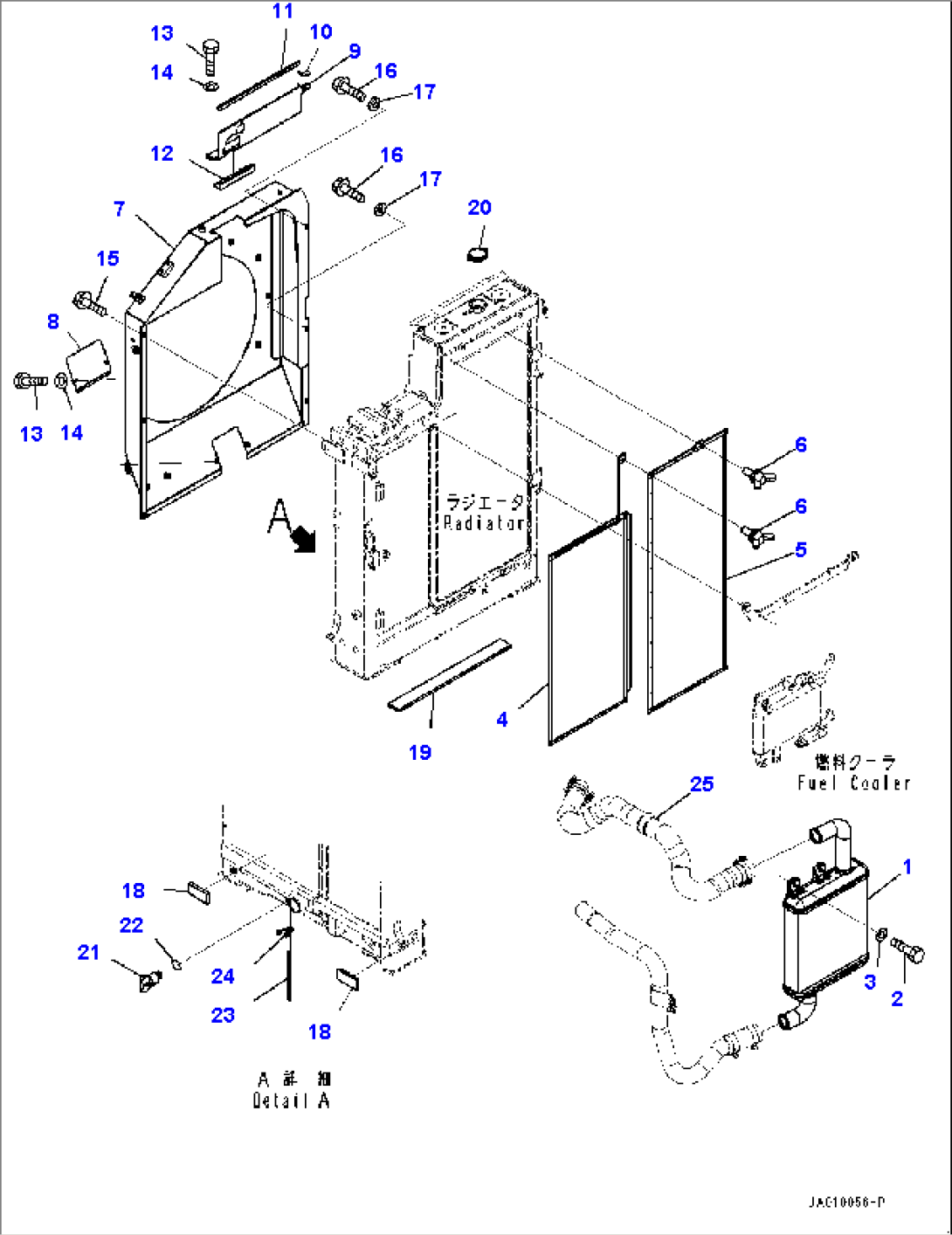

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-03-31131 | Aftercooler | 40001- | |
| 2 | 01010-81035 | Bolt | 40001- | |
| 3 | 01643-31032 | Washer | 40001- | |
| 4 | 22B-03-31181 | Net | 40001- | |
| 5 | 22B-03-31190 | Net | 40001- | |
| 6 | 203-54-83380 | Bolt, Wing | 40001- | |
| 7 | 22B-03-31151 | Shroud | 40001- | |
| 8 | 22B-03-31161 | Cover | 40001- | |
| 9 | 22B-03-31231 | Cover Assembly | 40001- | |
| 10 | 22B-03-31280 | Sheet | 40001- | |
| 11 | 22B-03-31291 | Seal | 40001- | |
| 12 | 22B-03-31350 | Sheet | 40001- | |
| 13 | 01010-80820 | Bolt | 40001- | |
| 14 | 01643-30823 | Washer | 40001- | |
| 15 | 01435-00816 | Bolt | 40001- | |
| 16 | 01435-00825 | Bolt | 40001- | |
| 17 | 6110-23-6490 | Spacer | 40001- | |
| 18 | 22B-03-31670 | Sheet | 40001- | |
| 19 | 22B-03-31540 | Sheet | 40001- | |
| 20 | 22B-03-11350 | Cap | 40001- | |
| 21 | 205-03-62660 | Plug | 40001- | |
| 22 | 07000-11007 | O-ring | 40001- | |
| 23 | 203-03-41410 | Hose | 40001- | |
| 24 | 20Y-03-11330 | Clip | 40001- | |
| 25 | (22B-03-31831) | Hose | - |
