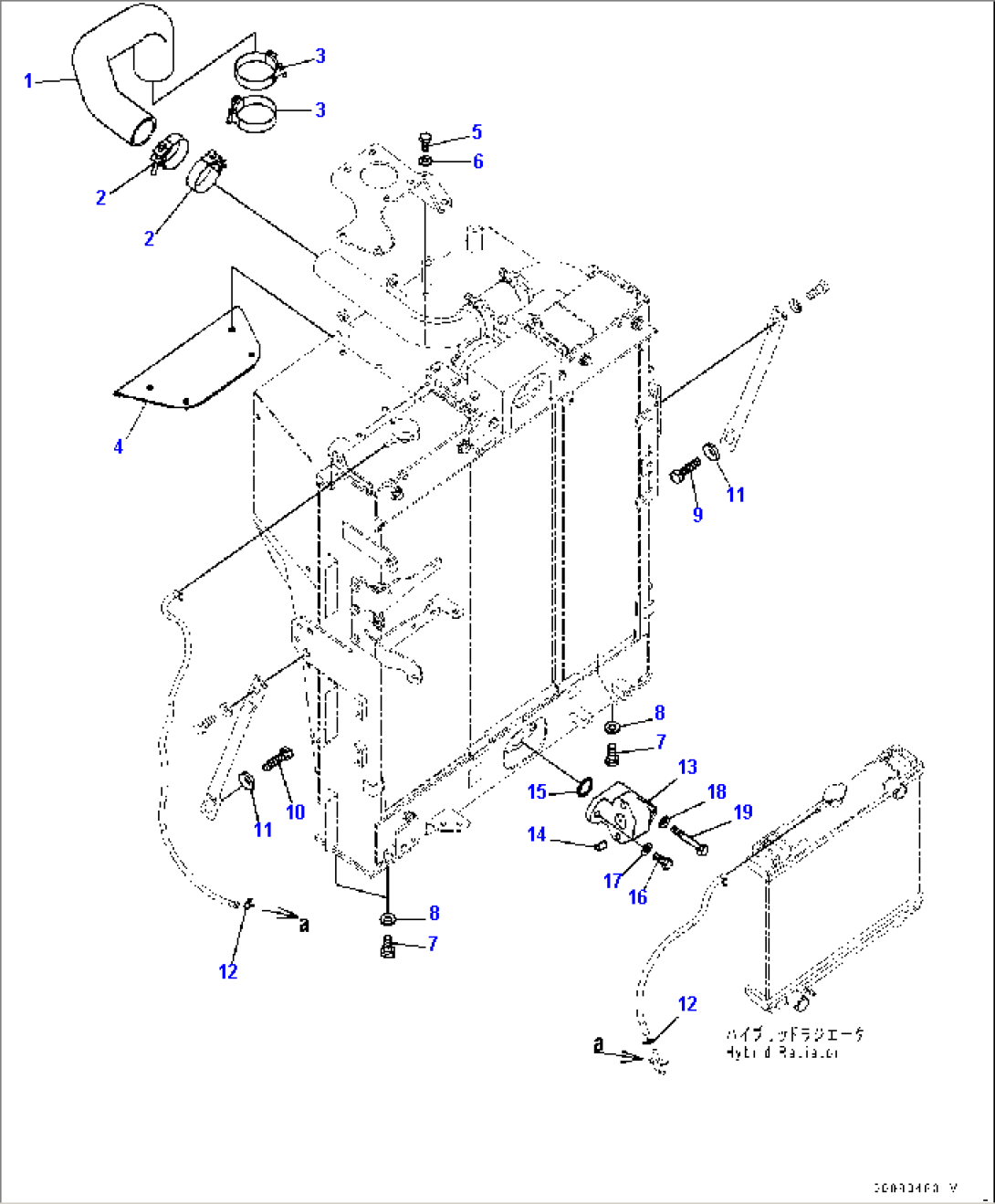

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 205-03-33351 | Hose | 1118- | |
| 2 | 21T-62-69711 | Clamp | 1118- | |
| 3 | 14X-01-35581 | Clamp | 1118- | |
| 4 | 205-03-33991 | Bracket | 1741- | |
| 4 | 205-03-33990 | Bracket | 1118-1740 | |
| 5 | 01010-81025 | Bolt | 1118- | |
| 6 | 01643-31032 | Washer | 1118- | |
| 7 | 01010-81640 | Bolt | 1118- | |
| 8 | 01643-31645 | Washer | 1118- | |
| 9 | 01010-81870 | Bolt | 1118- | |
| 10 | 01010-81845 | Bolt | 1118- | |
| 11 | 205-03-34120 | Washer | 1118- | |
| 12 | 206-03-43340 | Clip | 1118- | |
| 13 | 205-03-33110 | Block | 1118- | |
| 14 | 01190-01208 | Heli-sert | 1118- | |
| 15 | 07000-13045 | O-ring | 1118- | |
| 16 | 01010-81235 | Bolt | 1118- | |
| 17 | 01643-31232 | Washer | 1118- | |
| 18 | 01643-31232 | Washer | 1118- | |
| 19 | 01011-81220 | Bolt | 1118- |
