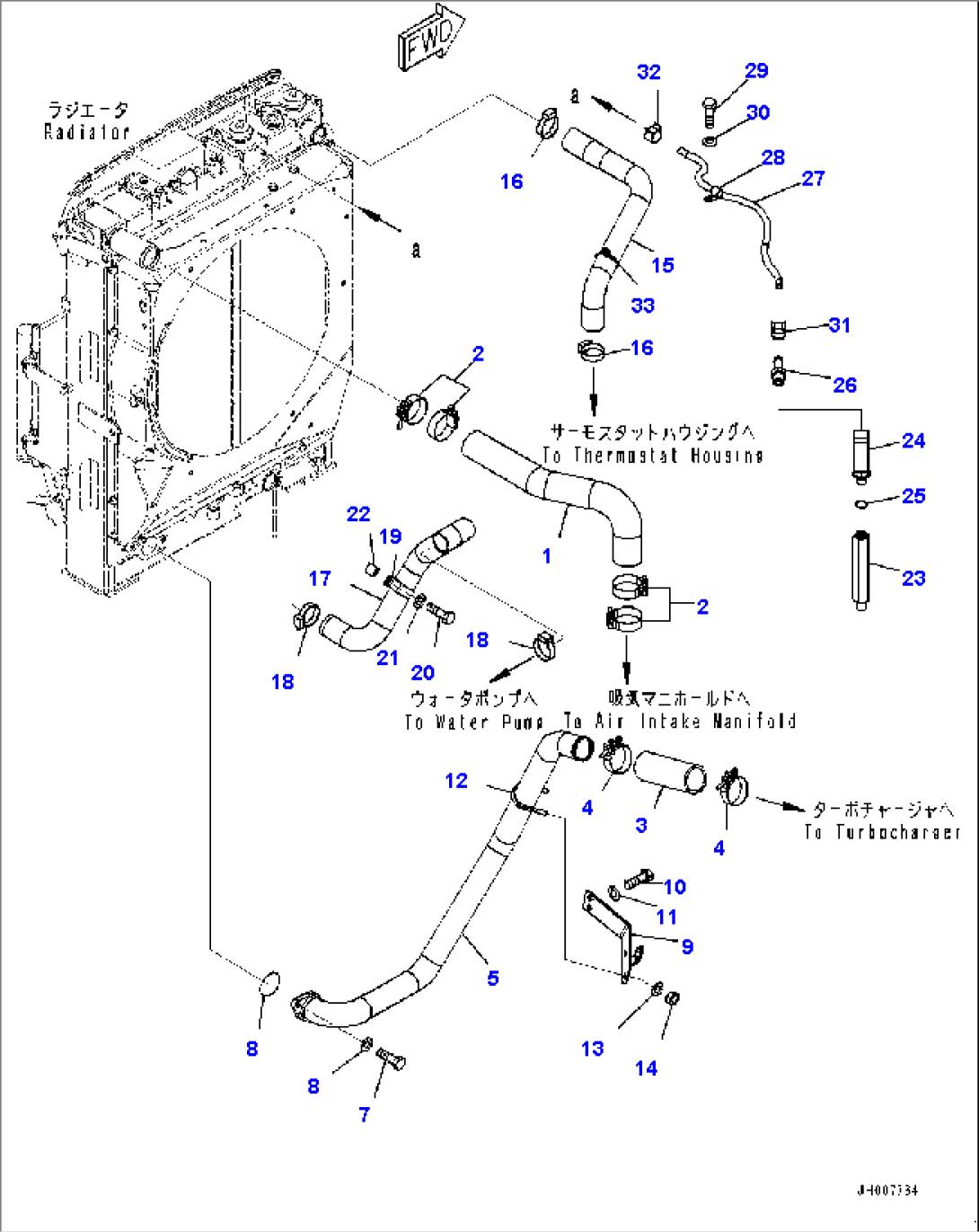

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-03-46310 | Hose | B50001- | |
| 2 | 21T-62-69711 | Clamp | B50001- | |
| 3 | 20Y-03-41181 | Hose | B50001- | |
| 4 | 21T-62-69711 | Clamp | B50001- | |
| 5 | 20Y-03-41191 | Tube | B50001- | |
| 6 | 07000-E2065 | O-ring | B50001- | |
| 7 | 01010-81035 | Bolt | B50001- | |
| 8 | 01643-31032 | Washer | B50001- | |
| 9 | 20Y-03-46360 | Bracket | B50001- | |
| 10 | 01010-81230 | Bolt | B50001- | |
| 11 | 01643-31232 | Washer | B50001- | |
| 12 | 07283-37060 | Clip, Pipe | B50001- | |
| 13 | 01643-31032 | Washer | B50001- | |
| 14 | 01597-01009 | Nut | B50001- | |
| 15 | 20Y-03-41141 | Hose | B50001- | |
| 16 | 07289-00055 | Clamp | B50001- | |
| 17 | 20Y-03-42250 | Hose | B50001- | |
| 18 | 07289-00055 | Clamp | B50001- | |
| 19 | 208-62-38370 | Clip | B50001- | |
| 20 | 01010-81045 | Bolt | B50001- | |
| 21 | 01643-31032 | Washer | B50001- | |
| 22 | 195-33-11220 | Spacer | B50001- | |
| 23 | 205-03-31331 | Nipple | B50001- | |
| 24 | 205-03-31341 | Elbow | B50001- | |
| 25 | 07002-11423 | O-ring | B50001- | |
| 26 | 22U-03-31731 | Nipple | B50001- | |
| 27 | 206-03-24541 | Hose Assembly | B50001- | |
| 28 | 04434-51610 | Clip | B50001- | |
| 29 | 01010-81020 | Bolt | B50001- | |
| 30 | 01643-31032 | Washer | B50001- | |
| 31 | 11Y-09-11140 | Clip | B50001- | |
| 32 | 11Y-09-11140 | Clip | B50001- | |
| 33 | 134-03-61410 | Band | B50001- |
