| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AHEK8720 | Condenser | 80138- | |
| 2 | 01640-21223 | Washer, Flat | 80138- | |
| 3 | 01010-81225 | Bolt | 80138- | |
| 4 | 01010-81220 | Bolt | 80138- | |
| 5 | 01640-21223 | Washer, Flat | 80138- | |
| 6 | 01580-11210 | Nut | 80138- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd1500 7 s/n 80138 up (chassis only)
- Cooling system
- Cooling system, air conditioner condenser unit (#80138 )
Поиск по каталогу

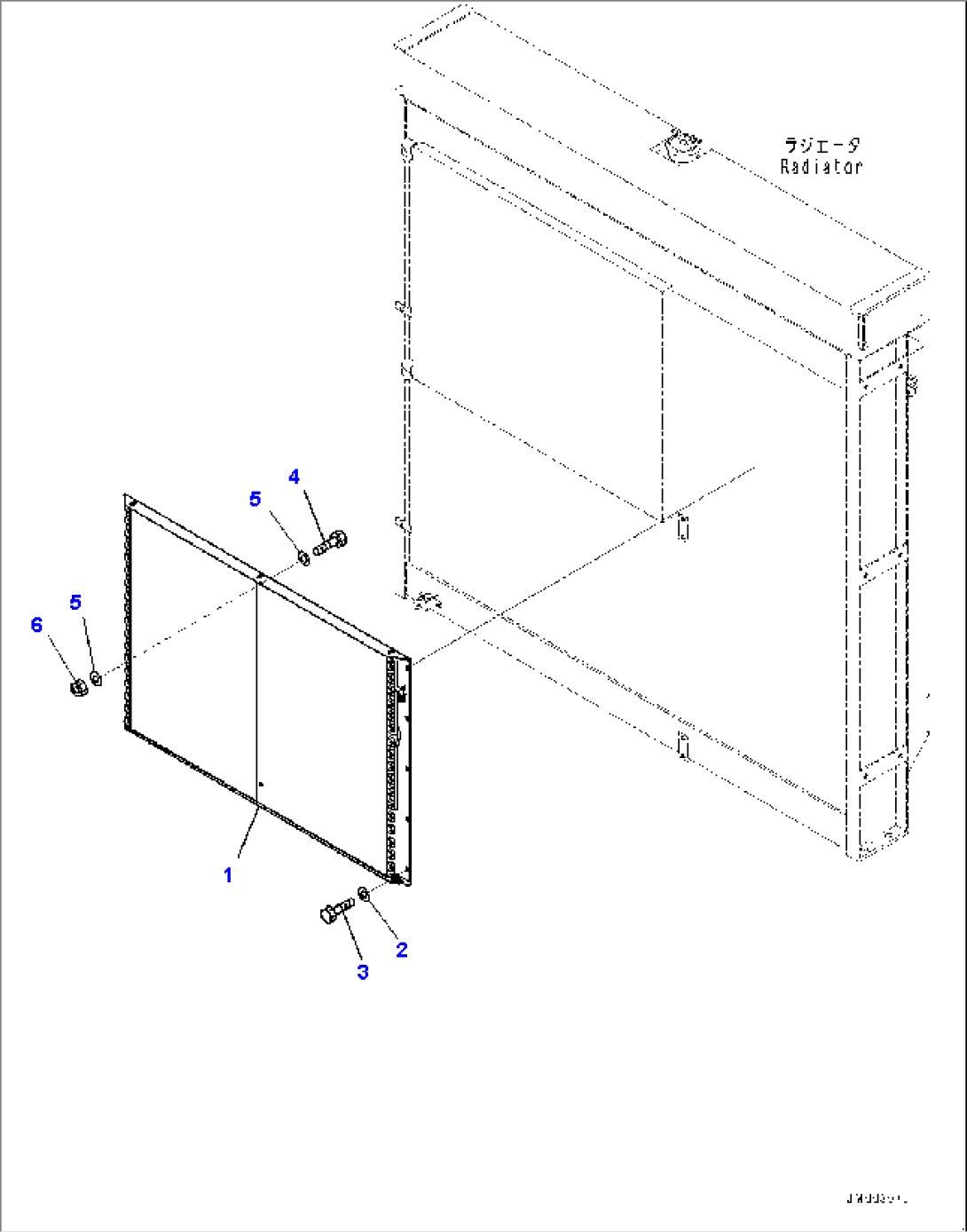

Cooling System, Air Conditioner Condenser Unit (#80138-)
