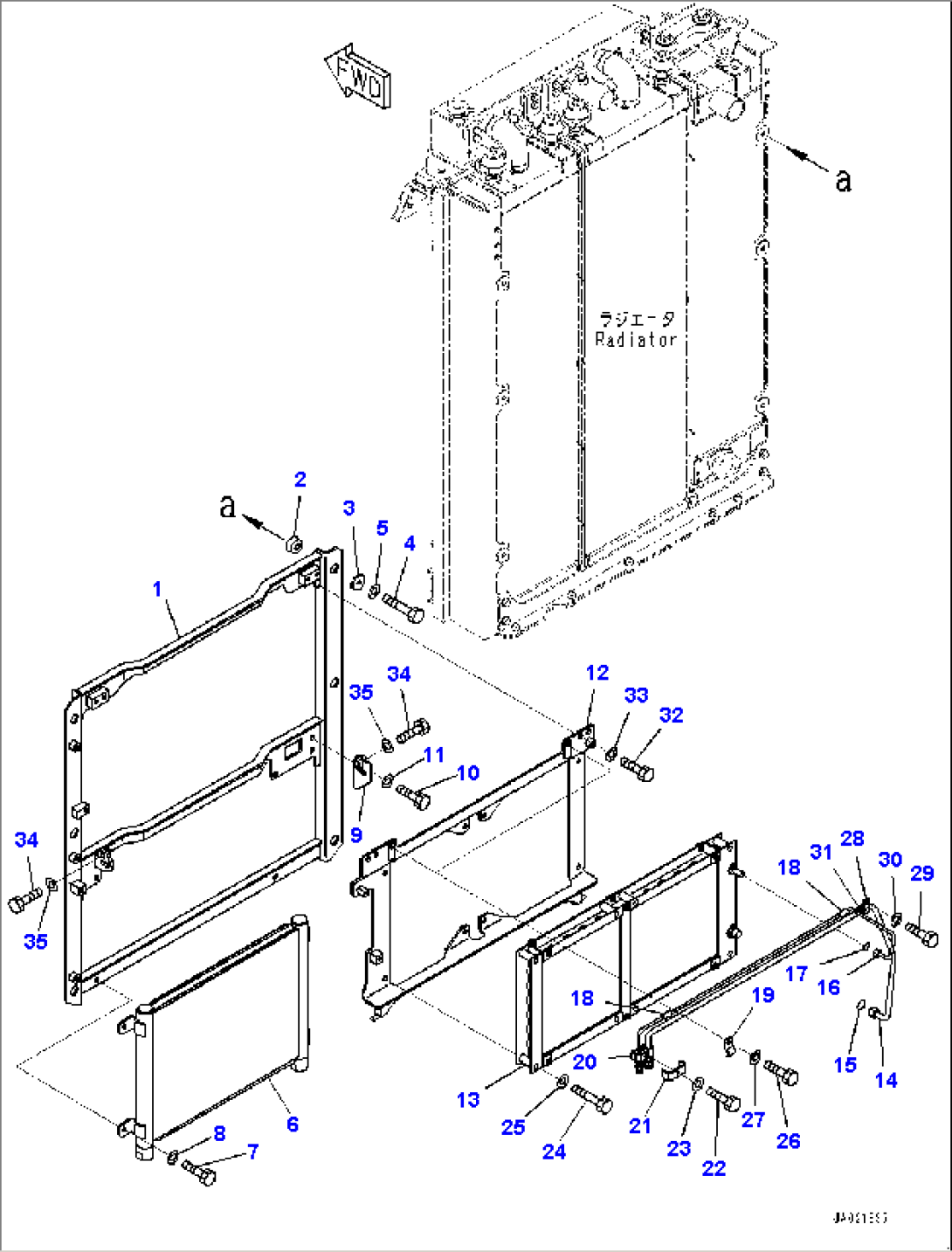

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-03-87232 | Bracket | 22118- | |
| 1 | 154-03-87231 | Bracket | 22083-22117 | |
| 2 | 195-03-41380 | Cushion | 22083- | |
| 3 | 154-03-76280 | Washer | 22083- | |
| 4 | 01010-81050 | Bolt | 22083- | |
| 5 | 01643-31032 | Washer | 22083- | |
| 6 | 154-03-81191 | Oil Cooler | 22083- | |
| 7 | 01010-81025 | Bolt | 22083- | |
| 8 | 01643-31032 | Washer | 22083- | |
| 9 | 154-03-87241 | Bracket | 22083- | |
| 10 | 01010-81230 | Bolt | 22083- | |
| 11 | 01643-31232 | Washer | 22083- | |
| 12 | 154-03-87221 | Bracket | 22083- | |
| 13 | 14X-911-7841 | Condenser Assembly | 22083- | |
| 14 | 154-911-8871 | Tube | 22083- | |
| 15 | 20Y-979-3140 | O-ring | 22083- | |
| 16 | 154-911-8881 | Tube | 22083- | |
| 17 | 20Y-979-3150 | O-ring | 22083- | |
| 18 | 154-03-87410 | Cover | 22083- | |
| 19 | 154-03-87420 | Clamp | 22083- | |
| 20 | 154-03-87370 | Bracket | 22083- | |
| 21 | 13Y-979-1221 | Plate | 22083- | |
| 22 | 01010-80845 | Bolt | 22083- | |
| 23 | 01643-30823 | Washer | 22083- | |
| 24 | 01010-81275 | Bolt | 22083- | |
| 25 | 01643-31232 | Washer | 22083- | |
| 26 | 01010-81025 | Bolt | 22083- | |
| 27 | 01643-31032 | Washer | 22083- | |
| 28 | 04434-51810 | Clip | 22083- | |
| 29 | 01010-81025 | Bolt | 22083- | |
| 30 | 01643-31032 | Washer | 22083- | |
| 31 | 07095-40211 | Cushion | 22083- | |
| 32 | 01010-81225 | Bolt | 22083- | |
| 33 | 01643-31232 | Washer | 22083- | |
| 34 | 01010-81240 | Bolt | 22083- | |
| 35 | 01643-31232 | Washer | 22083- |
