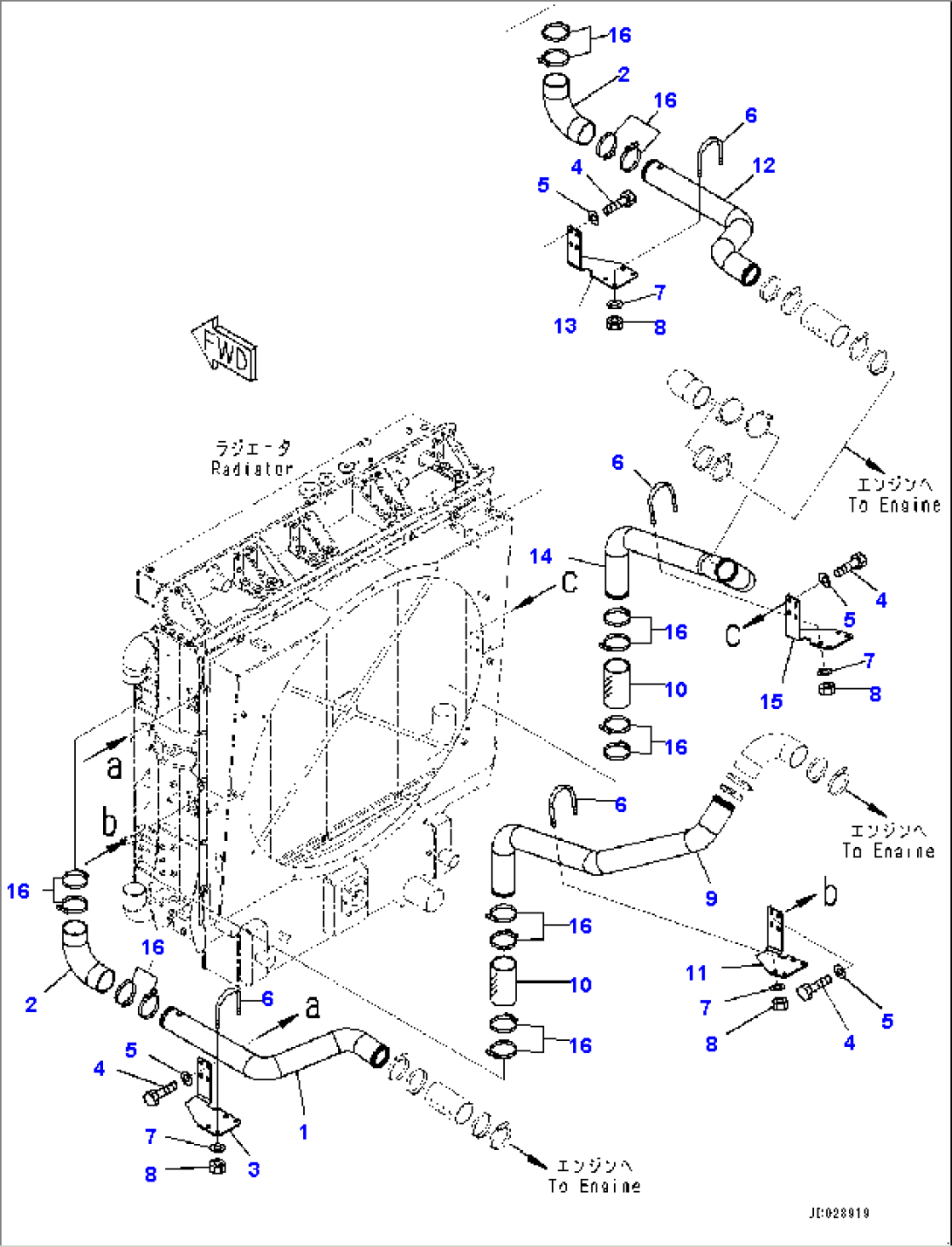

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-03-83120 | Hose | 8916- | |
| 1 | 561-03-82421 | Hose | 8832-8915 | |
| 2 | 23S-61-12230 | Clip | 8832- | |
| 3 | 561-61-85540 | Grommet | 8832- | |
| 4 | 09483-40316 | Hose | 8832- | |
| 5 | 09483-40316 | Hose | 8832- | |
| 6 | 07281-10197 | Clamp, Hose | 8832- | |
| 7 | 569-54-41380 | Plate | 8832- | |
| 8 | 561-61-84490 | Bracket | 8832- | |
| 9 | 04434-52512 | Clip | 8832- | |
| 10 | 07281-10167 | Clamp, Hose | 8832- | |
| 11 | 04434-52110 | Clip | 8832- | |
| 12 | 01010-81220 | Bolt | 8832- | |
| 13 | 01643-31232 | Washer | 8832- | |
| 14 | 561-03-83130 | Hose | 8916- | |
| 14 | 561-03-82461 | Hose | 8832-8915 | |
| 15 | 09483-40407 | Hose | 8832- | |
| 16 | 561-03-83140 | Hose | 8916- | |
| 16 | 561-03-82471 | Hose | 8832-8915 | |
| 17 | 561-03-81350 | Tube | 8832- | |
| 18 | 01010-81020 | Bolt | 8832- | |
| 19 | 01643-31032 | Washer | 8832- | |
| 20 | 07281-00229 | Clamp, Hose | 8832- |
