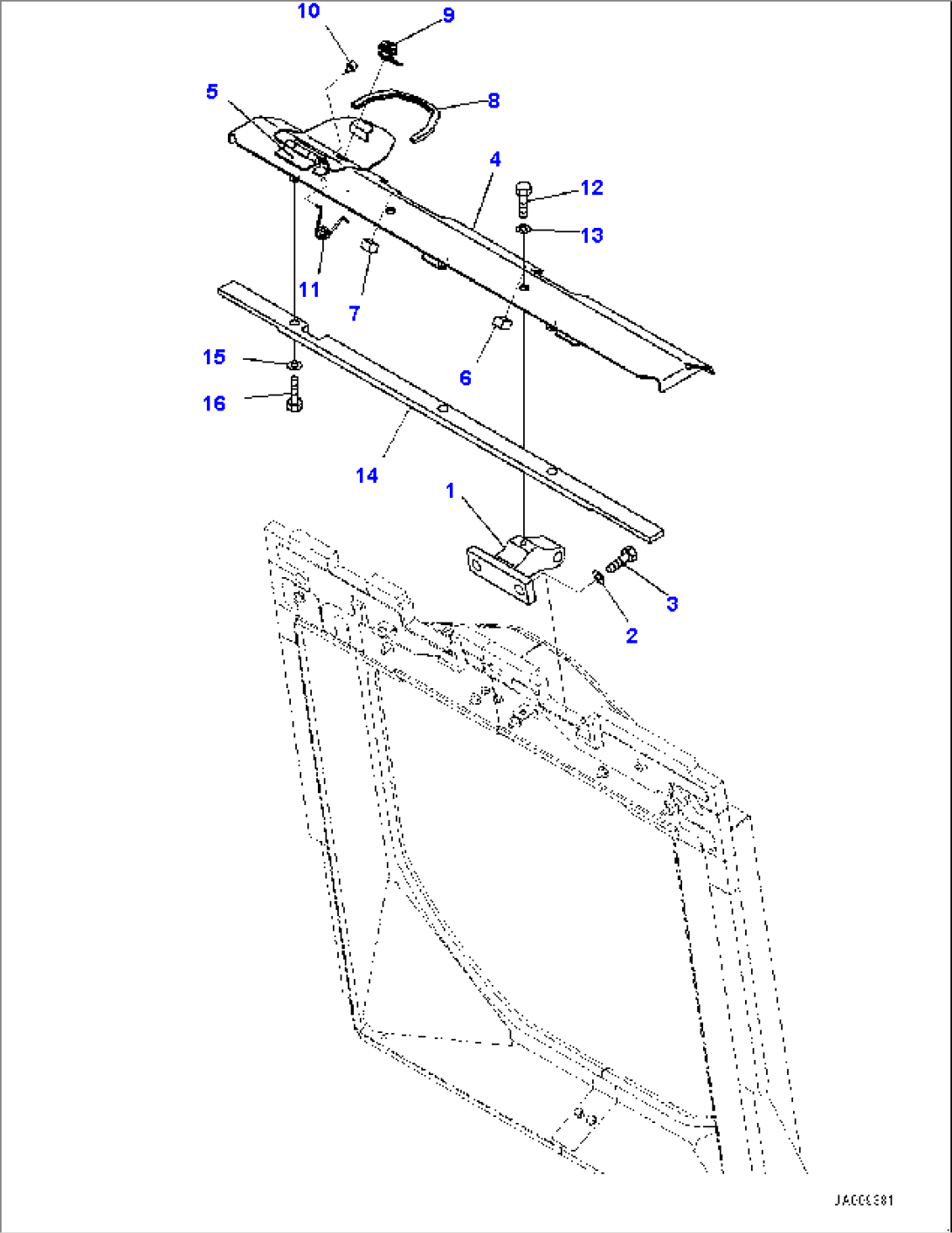

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 13Y-03-13332 | Bracket | 30001- | |
| 2 | 01643-31645 | Washer | 30001- | |
| 3 | 01010-81645 | Bolt | 30001- | |
| 4 | 13Y-03-13313 | Cover | 30001- | |
| 5 | 11Y-54-14220 | Hinge, Welded | 30001- | |
| 6 | 13Y-03-12470 | Seal | 30001- | |
| 7 | 13Y-03-12590 | Seal | 30001- | |
| 8 | 13Y-03-13270 | Seal | 30001- | |
| 9 | 205-60-71220 | Lock Assembly | 30001- | |
| 10 | 415-54-11980 | Cushion | 30001- | |
| 11 | 09467-00006 | Spring | 30001- | |
| 12 | 01010-D1225 | Bolt | 30001- | |
| 13 | 01643-71232 | Washer | 30001- | |
| 14 | 13Y-03-13340 | Seal | 30001- | |
| 15 | 113-43-23230 | Washer | 30001- | |
| 16 | 01010-80816 | Bolt | 30001- |
