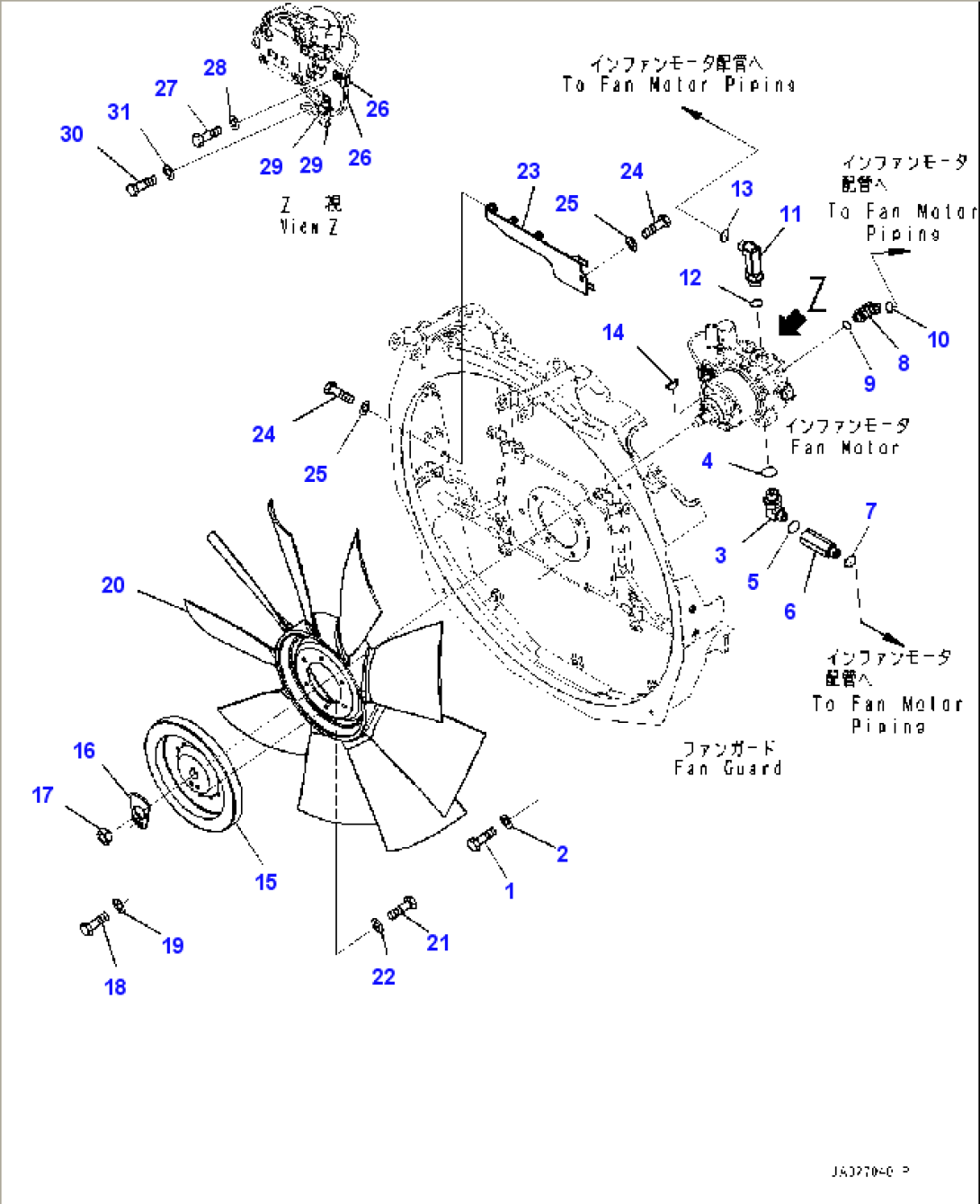

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81235 | Bolt | 10001- | |
| 2 | 01643-31232 | Washer | 10001- | |
| 3 | 02782-10425 | Elbow | 10001- | |
| 4 | 07002-12434 | O-ring | 10001- | |
| 5 | 02896-11012 | O-ring | 10001- | |
| 6 | 362-62-52181 | Adapter | 10001- | |
| 7 | 02896-11012 | O-ring | 10001- | |
| 8 | 02782-10420 | Elbow | 10001- | |
| 9 | 07002-11823 | O-ring | 10001- | |
| 10 | 02896-11012 | O-ring | 10001- | |
| 11 | 02782-10426 | Elbow | 10001- | |
| 12 | 07002-12434 | O-ring | 10001- | |
| 13 | 02896-11012 | O-ring | 10001- | |
| 14 | 04010-00722 | Key | 10001- | |
| 15 | 12Y-03-32211 | Hub | 10001- | |
| 16 | 154-03-72270 | Lock | 10001- | |
| 17 | 01583-12012 | Nut | 10001- | |
| 18 | 01010-81020 | Bolt | 10001- | |
| 19 | 01643-31032 | Washer | 10001- | |
| 20 | 12Y-03-31410 | Fan | 10001- | |
| 21 | 01010-80820 | Bolt | 10001- | |
| 22 | 01643-30823 | Washer | 10001- | |
| 23 | 12Y-03-31311 | Bracket | 10001- | |
| 24 | 01010-81020 | Bolt | 10001- | |
| 25 | 01643-31032 | Washer | 10001- | |
| 26 | 04434-50610 | Clip | 10001- | |
| 27 | 01010-81025 | Bolt | 10001- | |
| 28 | 01643-31032 | Washer | 10001- | |
| 29 | 04434-50610 | Clip | 10001- | |
| 30 | 01010-81025 | Bolt | 10001- | |
| 31 | 01643-31032 | Washer | 10001- |
