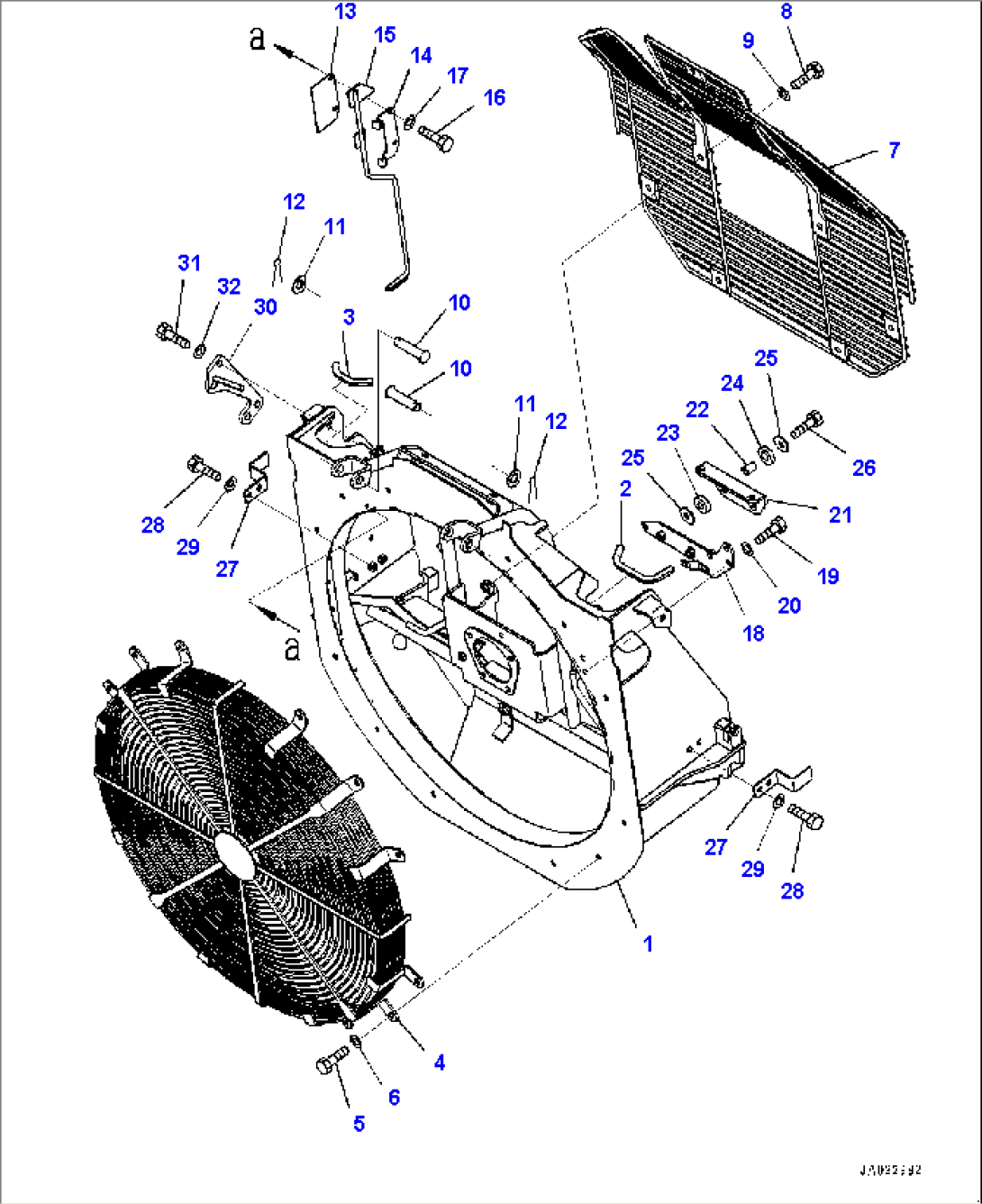

| Item | Part No. | Part Name | Qty | Serial No. |
| 13Y-03-22330 | Bracket | 31933- | ||
| 1 | Bracket | 31933- | ||
| 2 | 13Y-03-22280 | Seal | 31933- | |
| 3 | 13Y-03-22550 | Seal | 31933- | |
| 4 | 13Y-03-12321 | Guard | 30001- | |
| 5 | 01010-81020 | Bolt | 30001- | |
| 6 | 01643-31032 | Washer | 30001- | |
| 7 | 13Y-03-12332 | Net | 30001- | |
| 8 | 01010-D1030 | Bolt | 30001- | |
| 9 | 01643-71032 | Washer | 30001- | |
| 10 | 11Y-03-31830 | Pin | 30001- | |
| 11 | 01640-22032 | Washer | 30001- | |
| 12 | 04050-15035 | Pin, Cotter | 30001- | |
| 13 | 12Y-03-13361 | Plate | 30001- | |
| 14 | 12Y-03-13351 | Plate | 30001- | |
| 15 | 13Y-03-12382 | Bar | 30001- | |
| 16 | 01010-D0820 | Bolt | 30001- | |
| 17 | 01643-70823 | Washer | 30001- | |
| 18 | 13Y-03-12413 | Bracket | 30001- | |
| 19 | 01010-D1025 | Bolt | 30001- | |
| 20 | 01643-71032 | Washer | 30001- | |
| 21 | 13Y-03-12532 | Bracket | 30001- | |
| 22 | 417-54-13470 | Spacer | 30001- | |
| 23 | 419-06-43150 | Cushion | 30001- | |
| 24 | 419-06-43160 | Cushion | 30001- | |
| 25 | 419-43-17920 | Washer | 30001- | |
| 26 | 01010-81250 | Bolt | 30001- | |
| 27 | 13Y-03-12491 | Plate | 30001- | |
| 28 | 01010-D1025 | Bolt | 30001- | |
| 29 | 01643-71032 | Washer | 30001- | |
| 30 | 13Y-03-12571 | Plate | 30001- | |
| 31 | 01010-D1230 | Bolt | 30001- | |
| 32 | 01643-71232 | Washer | 30001- |
