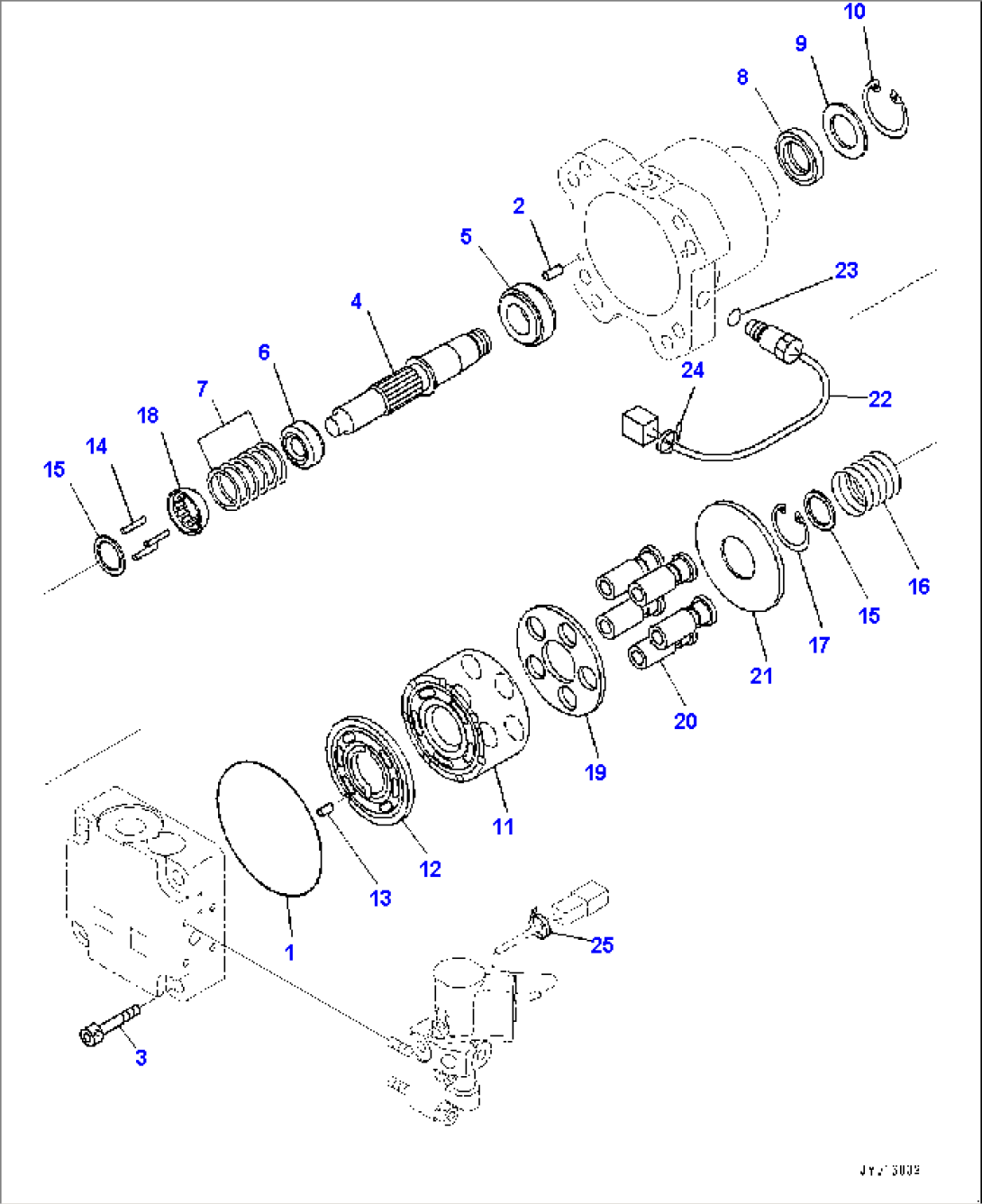

| Item | Part No. | Part Name | Qty | Serial No. |
| 708-7S-00680 | Motor Assembly | 1001- | ||
| 1 | (07000-E2110) | O-ring | 1001- | |
| 2 | (04020-00616) | Pin, Dowel | 1001- | |
| 3 | 01252-61255 | Bolt, Hexagon Socket Head | 1001- | |
| 4 | (708-7S-12330) | Shaft | 1001- | |
| 5 | (708-7S-12140) | Bearing | 1001- | |
| 6 | (708-7S-12220) | Bearing | 1001- | |
| 7 | (708-7S-05110) | Shim Kit | 1001- | |
| 7 | Shim, T=0.85mm | 1001- | ||
| 7 | Shim, T=1.05mm | 1001- | ||
| 7 | Shim, T=1.25mm | 1001- | ||
| 7 | Shim, T=0.75mm | 1001- | ||
| 7 | Shim, T=0.95mm | 1001- | ||
| 7 | Shim, T=1.15mm | 1001- | ||
| 8 | (708-7T-12340) | Seal, Oil | 1001- | |
| 9 | 708-1S-11890 | Spacer | 1001- | |
| 10 | 04065-04518 | Ring, Snap | 1001- | |
| 11 | (708-7S-13130) | Block, Cylinder | 1001- | |
| 12 | (708-7S-13260) | Plate, Valve | 1001- | |
| 13 | (720-68-19610) | Pin | 1001- | |
| 14 | (708-2L-23360) | Pin | 1001- | |
| 15 | (708-7S-13530) | Spacer | 1001- | |
| 16 | (708-7S-13560) | Spring | 1001- | |
| 17 | (04065-03212) | Ring, Snap | 1001- | |
| 18 | (708-7S-13550) | Guide, Retainer | 1001- | |
| 19 | (708-7S-13360) | Retainer | 1001- | |
| 20 | (708-7S-13350) | Piston Subassembly | 1001- | |
| 21 | (708-7S-13420) | Plate, Thrust | 1001- | |
| 22 | 729-11-41000 | Sensor, Revolution | 1001- | |
| 23 | 07002-21423 | O-ring | 1001- | |
| 24 | 20Y-62-22820 | Band, Blue | 1001- | |
| 25 | 20Y-62-22850 | Band, Green | 1001- |
