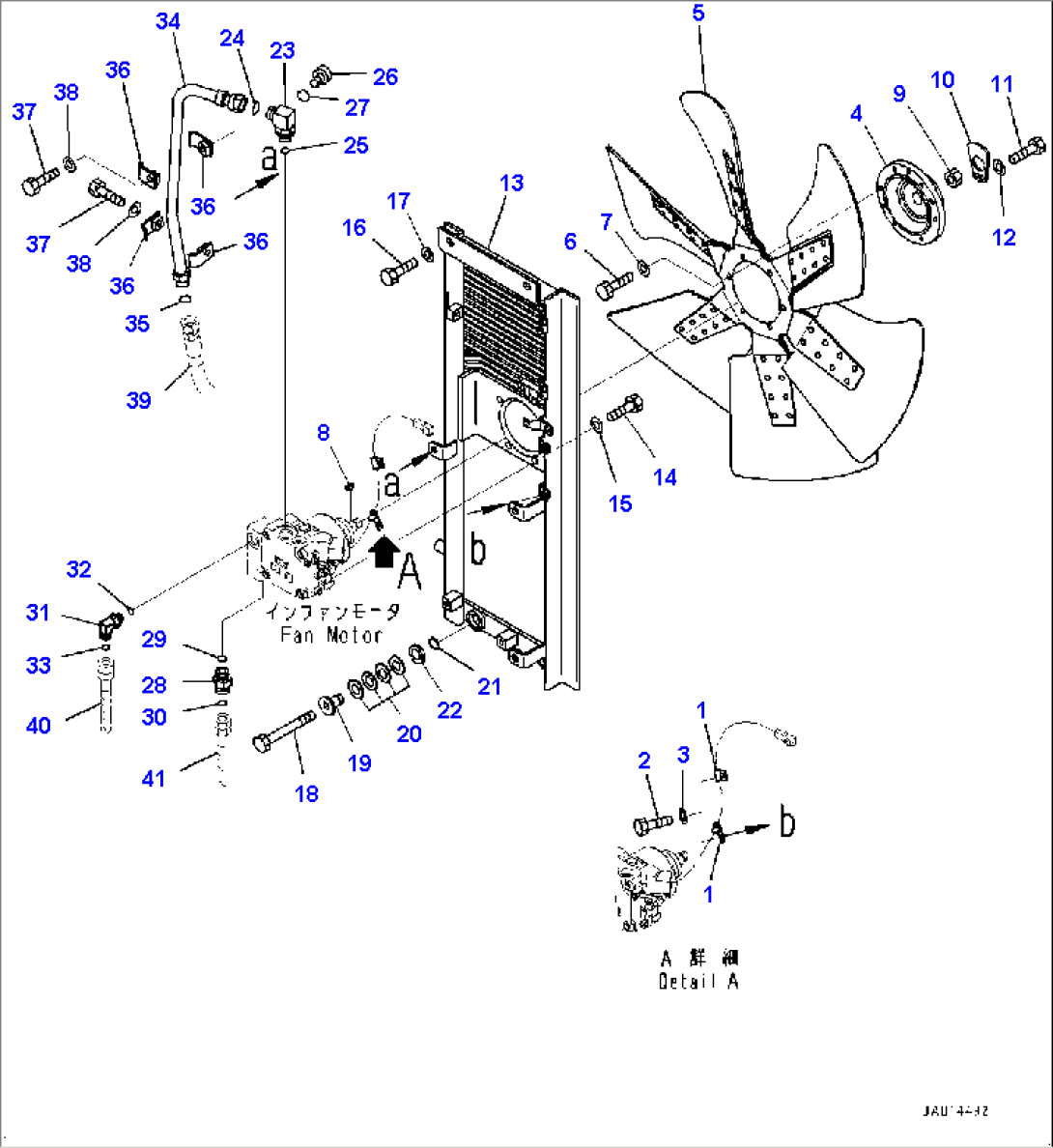

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04435-50610 | Clip | 10001- | |
| 2 | 01010-81020 | Bolt | 10001- | |
| 3 | 01643-31032 | Washer | 10001- | |
| 4 | 423-03-31710 | Boss | 10001- | |
| 5 | 600-645-7850 | Fan | 10001- | |
| 6 | 01010-81030 | Bolt | 10001- | |
| 7 | 01643-31032 | Washer | 10001- | |
| 8 | 04010-00722 | Key | 10001- | |
| 9 | 01583-12012 | Nut | 10001- | |
| 10 | 154-03-72270 | Lock | 10001- | |
| 11 | 01010-81020 | Bolt | 10001- | |
| 12 | 01643-31032 | Washer | 10001- | |
| 13 | 14X-03-61310 | Bracket | 10001- | |
| 14 | 01010-81235 | Bolt | 10001- | |
| 15 | 01643-31232 | Washer | 10001- | |
| 16 | 01010-81225 | Bolt | 10001- | |
| 17 | 01643-31232 | Washer | 10001- | |
| 18 | 01010-81265 | Bolt | 10001- | |
| 18 | 154-03-00050 | Spring Assembly | 10001- | |
| 19 | 154-03-13180 | Spacer | 10001- | |
| 20 | 175-54-27350 | Spring | 10001- | |
| 21 | 175-54-28770 | Ring | 10001- | |
| 22 | 01643-32060 | Washer | 10001- | |
| 23 | 421-09-31110 | Elbow | 10001- | |
| 24 | 02896-11015 | O-ring | 10001- | |
| 25 | 07002-12434 | O-ring | 10001- | |
| 26 | 07040-11007 | Plug | 10001- | |
| 27 | 07002-11023 | O-ring | 10001- | |
| 28 | 02781-00522 | Union | 10001- | |
| 29 | 07002-12434 | O-ring | 10001- | |
| 30 | 02896-11015 | O-ring | 10001- | |
| 31 | 02782-10420 | Elbow | 10001- | |
| 32 | 07002-11823 | O-ring | 10001- | |
| 33 | 02896-11012 | O-ring | 10001- | |
| 34 | 14X-03-51320 | Tube | 10001- | |
| 35 | 02896-11015 | O-ring | 10001- | |
| 36 | 14X-62-32540 | Clamp | 10001- | |
| 37 | 01010-81050 | Bolt | 10001- | |
| 38 | 01643-31032 | Washer | 10001- | |
| 39 | (14U-62-22121) | Hose | - | |
| 40 | (14U-62-22131) | Hose | - | |
| 41 | (14X-62-51321) | Hose Assembly | - |
