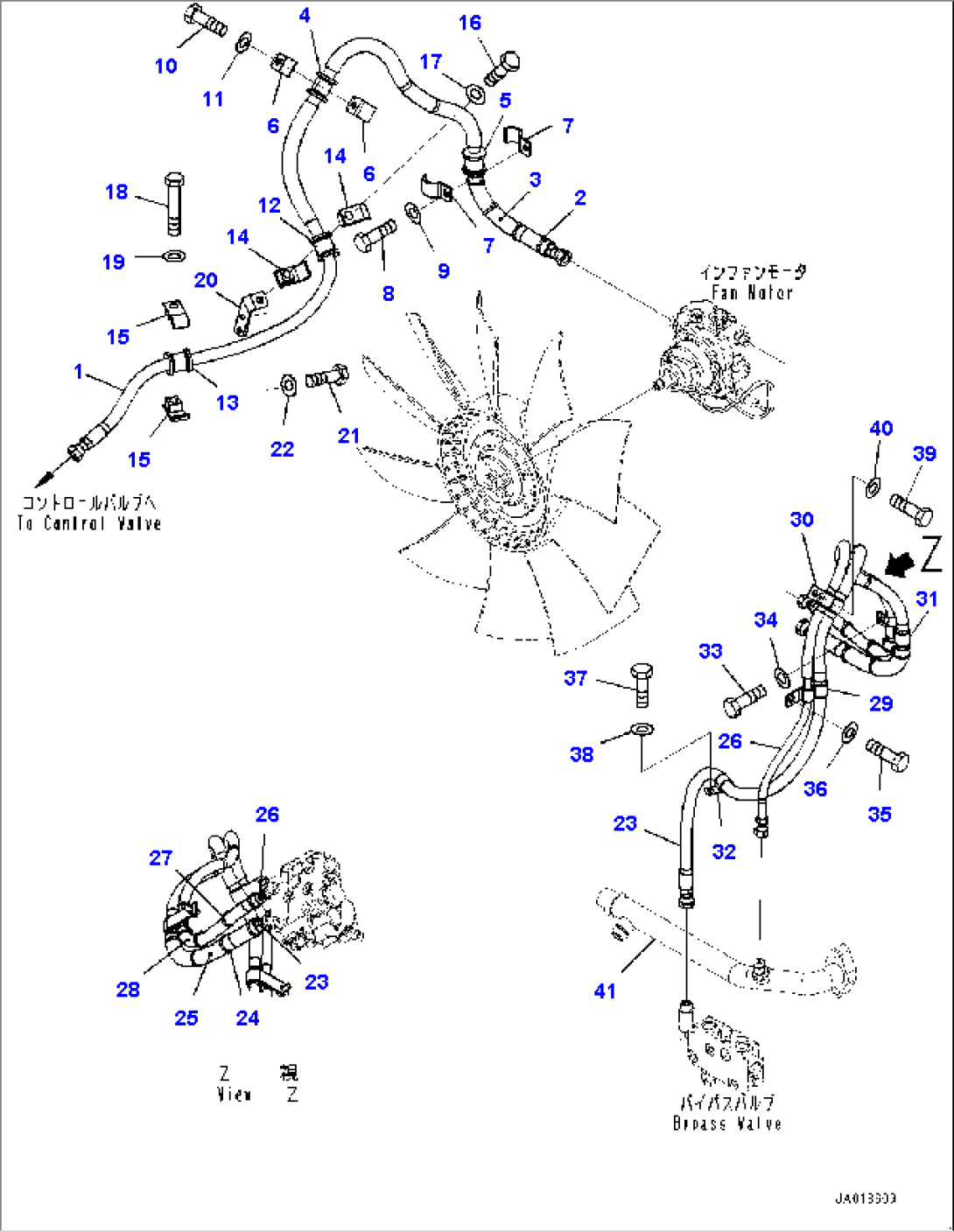

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-03-43141 | Hose Assembly | 80179- | |
| 2 | 08034-20519 | Band | 80179- | |
| 3 | 11Y-03-43341 | Cover | 80179- | |
| 4 | 07095-00420 | Cushion | 80179- | |
| 5 | 07095-00420 | Cushion | 80179- | |
| 6 | 11Y-62-33591 | Clamp | 80179- | |
| 7 | 11Y-62-33591 | Clamp | 80179- | |
| 8 | 01010-D1025 | Bolt | 80179- | |
| 9 | 01643-71032 | Washer | 80179- | |
| 10 | 01010-81025 | Bolt | 80179- | |
| 11 | 01643-31032 | Washer | 80179- | |
| 12 | 07095-00420 | Cushion | 80179- | |
| 13 | 07095-00420 | Cushion | 80179- | |
| 14 | 418-03-43880 | Clamp | 80179- | |
| 15 | 418-03-43880 | Clamp | 80179- | |
| 16 | 01010-81265 | Bolt | 80179- | |
| 17 | 01643-31232 | Washer | 80179- | |
| 18 | 01010-81265 | Bolt | 80179- | |
| 19 | 01643-31232 | Washer | 80179- | |
| 20 | 11Y-03-43270 | Bracket | 80179- | |
| 21 | 01010-81025 | Bolt | 80179- | |
| 22 | 01643-31032 | Washer | 80179- | |
| 23 | 11Y-03-43151 | Hose Assembly | 80179- | |
| 24 | 08034-20519 | Band | 80179- | |
| 25 | 11Y-03-43351 | Cover | 80179- | |
| 26 | 11Y-03-43161 | Hose Assembly | 80179- | |
| 27 | 08034-20519 | Band | 80179- | |
| 28 | 11Y-03-43361 | Cover | 80179- | |
| 29 | 17A-911-4421 | Clip | 80179- | |
| 30 | 17A-911-4421 | Clip | 80179- | |
| 31 | 17A-911-4421 | Clip | 80179- | |
| 32 | 04434-51910 | Clip | 80179- | |
| 33 | 01010-D1025 | Bolt | 80179- | |
| 34 | 01643-71032 | Washer | 80179- | |
| 35 | 01010-81020 | Bolt | 80179- | |
| 36 | 01643-31032 | Washer | 80179- | |
| 37 | 01010-81020 | Bolt | 80179- | |
| 38 | 01643-31032 | Washer | 80179- | |
| 39 | 01010-81020 | Bolt | 80179- | |
| 40 | 01643-31032 | Washer | 80179- | |
| 41 | (11Y-62-48131) | Tube | - |
