| Item | Part No. | Part Name | Qty | Serial No. |

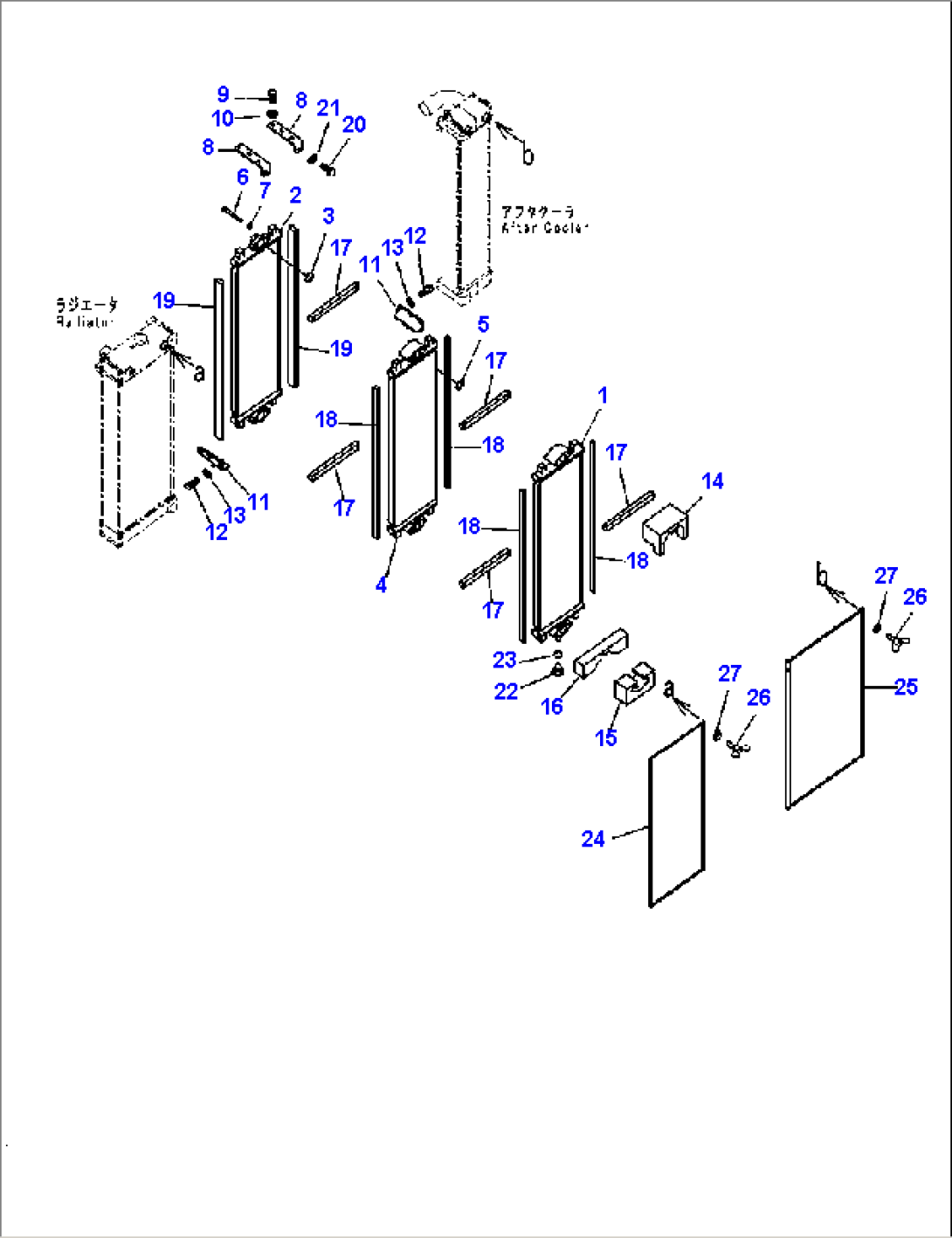

| 206-03-22421 | OIL COOLER ASS'Y | B10001- | ||
| 1 | 206-03-22121 | OIL COOLER | B10001- | |
| 2 | 206-03-22441 | OIL COOLER | B10001- | |
| 3 | 07000-13045 | O-RING | B10001- | |
| 4 | 206-03-22791 | OIL COOLER | B10001- | |
| 5 | 07000-13045 | O-RING | B10001- | |
| 6 | 01011-81205 | BOLT | B10001- | |
| 7 | 01643-31232 | WASHER | B10001- | |
| 8 | 20Y-03-41711 | BRACKET | B10001- | |
| 9 | 01010-81025 | BOLT | B10001- | |
| 10 | 01643-31032 | WASHER | B10001- | |
| 11 | 20Y-03-41721 | BRACKET | B10001- | |
| 12 | 01010-81025 | BOLT | B10001- | |
| 13 | 01643-31032 | WASHER | B10001- | |
| 14 | 206-03-21470 | SHEET | B10001- | |
| 15 | 206-03-21520 | SHEET | B10001- | |
| 16 | 20Y-03-41780 | SHEET | B10001- | |
| 17 | 20Y-03-41691 | SHEET | B10001- | |
| 18 | 206-03-22580 | SHEET | B10001- | |
| 19 | 206-03-21710 | SHEET | B10001- | |
| 20 | 01010-81030 | BOLT | B10001- | |
| 21 | 01643-31032 | WASHER | B10001- | |
| 22 | 07040-11409 | PLUG | B10001- | |
| 23 | 07002-11423 | O-RING | B10001- | |
| 24 | 206-03-22260 | NET | B10001- | |
| 25 | 206-03-22270 | NET | B10001- | |
| 26 | 01434-10616 | BOLT, WING | B10001- | |
| 27 | 01643-30623 | WASHER | B10001- |
