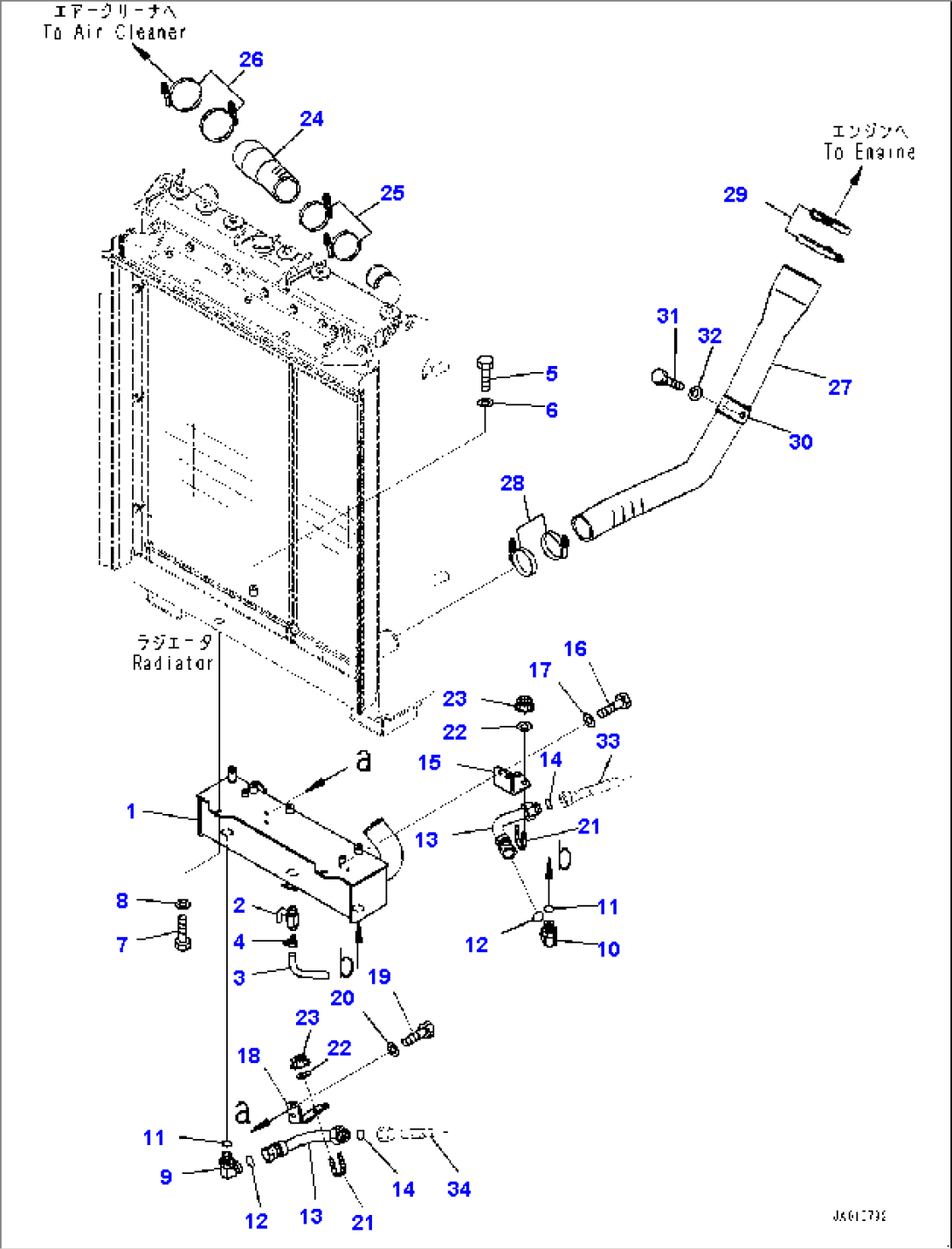

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-03-51141 | Oil Cooler | 10001- | |
| 2 | 07730-40004 | Valve, Drain | 10001- | |
| 3 | 07270-01520 | Tube | 10001- | |
| 4 | 07280-01920 | Clamp, Hose | 10001- | |
| 5 | 01010-81045 | Bolt | 10001- | |
| 6 | 01643-31032 | Washer | 10001- | |
| 7 | 01010-81025 | Bolt | 10001- | |
| 8 | 01643-31032 | Washer | 10001- | |
| 9 | 02782-10628 | Elbow | 10001- | |
| 10 | 02782-10628 | Elbow | 10001- | |
| 11 | 07002-12434 | O-ring | 10001- | |
| 12 | 02896-61018 | O-ring | 10001- | |
| 13 | 14X-49-52141 | Tube | 10001- | |
| 14 | 02896-61018 | O-ring | 10001- | |
| 15 | 14X-49-52151 | Plate | 10001- | |
| 16 | 01010-81020 | Bolt | 10001- | |
| 17 | 01643-31032 | Washer | 10001- | |
| 18 | 14X-49-52161 | Plate | 10001- | |
| 19 | 01010-81020 | Bolt | 10001- | |
| 20 | 01643-31032 | Washer | 10001- | |
| 21 | 07283-32738 | Clip, Pipe | 10001- | |
| 22 | 01643-31032 | Washer | 10001- | |
| 23 | 01597-01009 | Nut | 10001- | |
| 24 | 14X-01-51620 | Hose | 10001- | |
| 25 | 07299-00080 | Clamp, Hose | 10001- | |
| 26 | 07299-00095 | Clamp, Hose | 10001- | |
| 27 | 14X-03-51251 | Hose | 10001- | |
| 28 | 07299-00080 | Clamp, Hose | 10001- | |
| 29 | 07299-00120 | Clamp | 10001- | |
| 30 | 14X-03-61670 | Clip | 10001- | |
| 31 | 01010-81230 | Bolt | 10001- | |
| 32 | 01643-31232 | Washer | 10001- | |
| 33 | (14U-49-22130) | Hose Assembly | - | |
| 34 | (14U-49-22120) | Hose Assembly | - |
