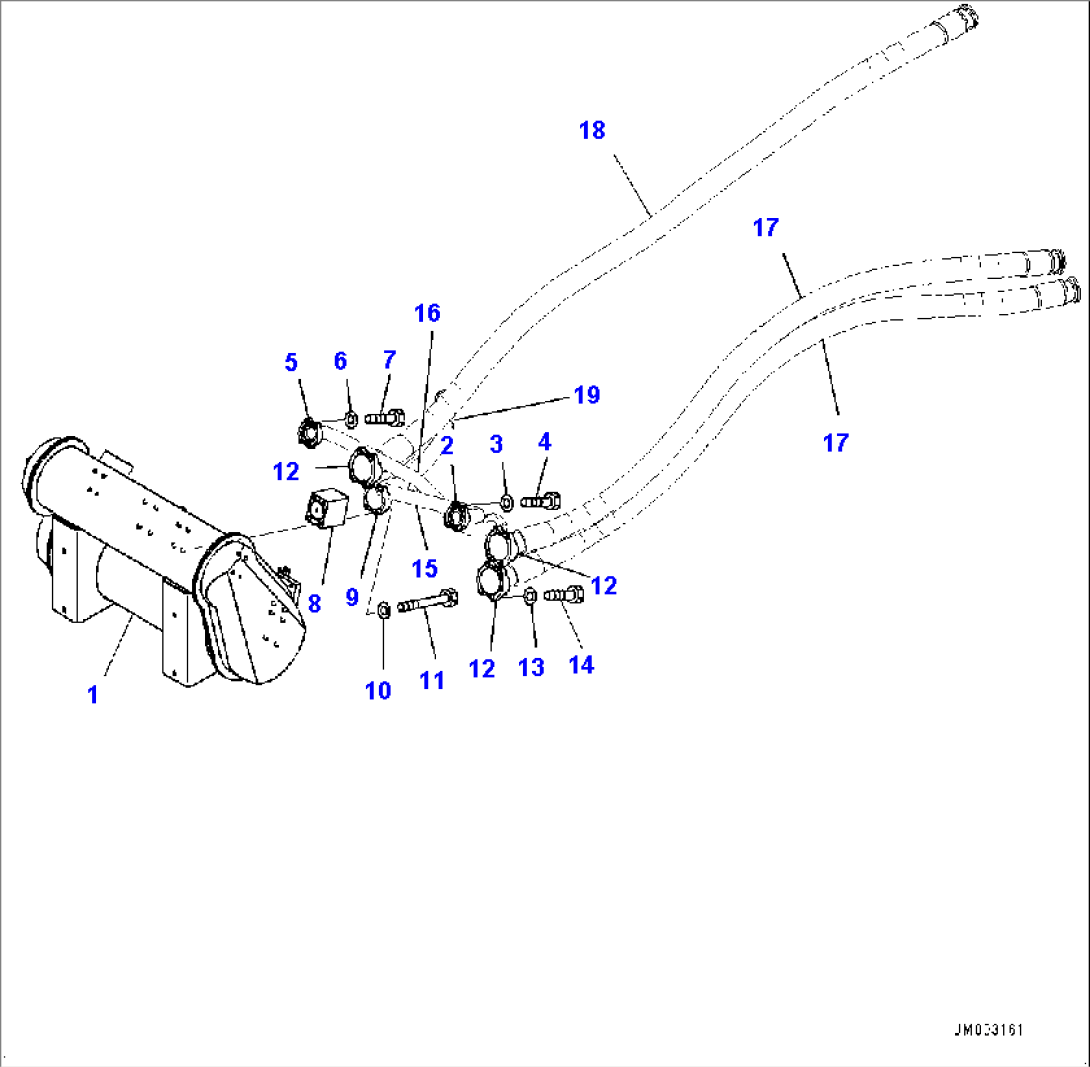

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AHPC1622 | Cooler Assembly | 80138- | |
| 2 | AHTF3231 | Flange | 80138- | |
| 3 | AHTR5445 | Washer, Lock | 80138- | |
| 4 | 02010-70838 | Bolt, Unified | 80138- | |
| 5 | AHTF3231 | Flange | 80138- | |
| 6 | AHTR5445 | Washer, Lock | 80138- | |
| 7 | 02010-70838 | Bolt, Unified | 80138- | |
| 8 | AHPB9681 | Valve, Check | 80138- | |
| 9 | AHVH6718 | Flange | 80138- | |
| 10 | AHTR5445 | Washer, Lock | 80138- | |
| 11 | AHC1053 | Bolt | 80138- | |
| 12 | AHVL9963 | Flange | 80138- | |
| 13 | 01643-51645 | Washer | 80138- | |
| 14 | 02010-71044 | Bolt, Unified | 80138- | |
| 15 | (562-61-32920) | Tube | - | |
| 16 | (562-61-32930) | Tube | - | |
| 17 | (AHHA7313) | Hose | - | |
| 18 | (AHHA8118) | Hose | - | |
| 19 | (AHHA7311) | Hose | - |
