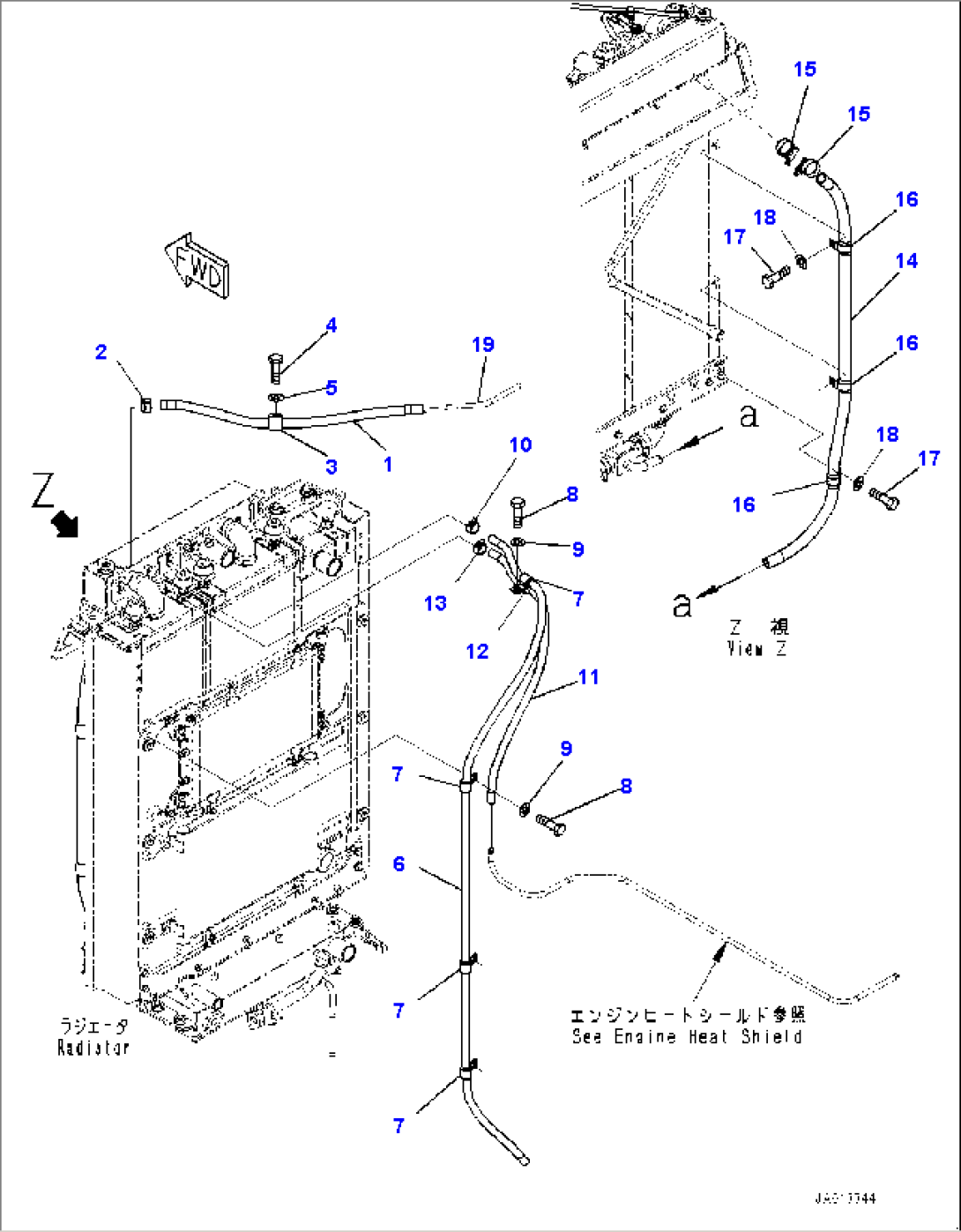

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-03-85361 | Hose | 22083-@ | |
| 2 | 07285-00125 | Clip | 22083-@ | |
| 3 | 04434-51412 | Clip | 22083-@ | |
| 4 | 01010-81225 | Bolt | 22083-@ | |
| 5 | 01643-31232 | Washer | 22083-@ | |
| 6 | 154-03-85351 | Hose | 22083-23023 | |
| 7 | 04434-51612 | Clip | 22083-23023 | |
| 8 | 01010-81225 | Bolt | 22083-@ | |
| 9 | 01643-31232 | Washer | 22083-@ | |
| 10 | 11Y-09-11140 | Clip | 22083-@ | |
| 11 | 154-03-85341 | Hose | 22083-@ | |
| 12 | 04434-51612 | Clip | 22083-@ | |
| 13 | 11Y-09-11140 | Clip | 22083-@ | |
| 14 | 154-03-81991 | Hose | 22083-@ | |
| 15 | 07289-00035 | Clamp | 22083-@ | |
| 16 | 04434-53412 | Clip | 22083-@ | |
| 17 | 01010-81225 | Bolt | 22083-@ | |
| 18 | 01643-31232 | Washer | 22083-@ | |
| 19 | (154-03-86110) | Tube | - |
