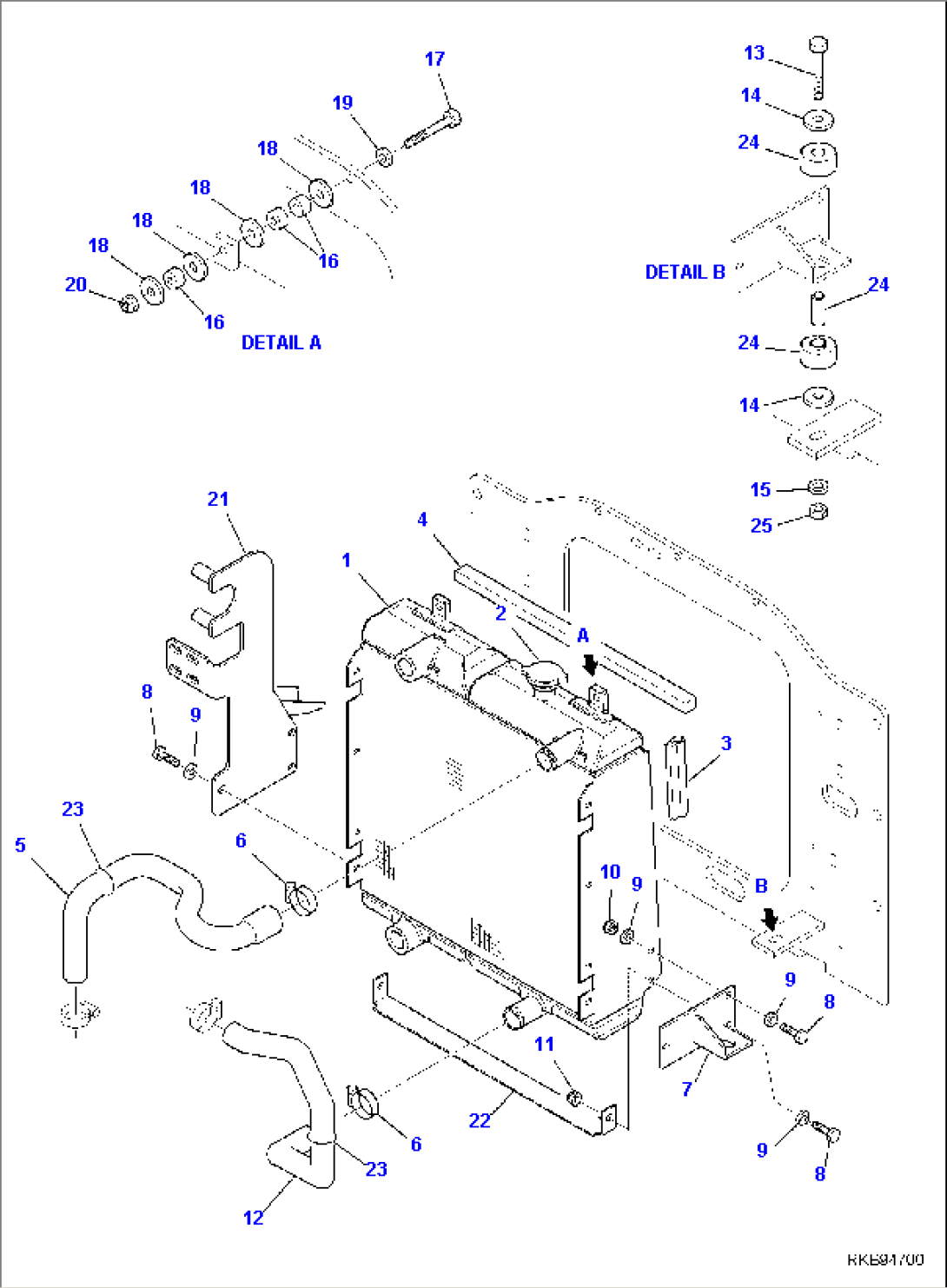

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 37B-03-15421 | RADIATOR, ASSEMBLY | F60002- | |
| 2 | 226-03-11560 | CAP | F60002- | |
| 3 | 37A-03-11210 | GASKET | F60002- | |
| 4 | 37A-03-11340 | GASKET | F60002- | |
| 5 | 37A-03-11290 | SLEEVE | F60002- | |
| 6 | 07281-00489 | CLAMP | F60002- | |
| 7 | 37A-03-11260 | SUPPORT | F60002- | |
| 8 | 01016-51030 | BOLT | F60002- | |
| 9 | 01643-11032 | WASHER | F60002- | |
| 10 | 21D-09-24190 | NUT | F60002- | |
| 11 | 37A-09-35410 | NUT | F60002- | |
| 12 | 37B-03-11111 | HOSE | F60002- | |
| 13 | 01010-81075 | BOLT | F60002- | |
| 14 | 21D-09-74620 | WASHER | F60002- | |
| 15 | 01643-11032 | WASHER | F60002- | |
| 16 | 37A-03-11380 | SPACER | F60002- | |
| 17 | 01010-81090 | BOLT | F60002- | |
| 18 | 37A-09-4A013 | WASHER | F60002- | |
| 19 | 01643-11032 | WASHER | F60002- | |
| 20 | 37A-09-35410 | NUT | F60002- | |
| 21 | 37A-62-13154 | SUPPORT | F60002- | |
| 22 | 37A-03-11280 | BENT | F60002- | |
| 23 | 07000-13036 | O-RING | F60002- | |
| 24 | 37A-03-11220 | DAMPER | F60002- | |
| 25 | 21D-09-24190 | NUT | F60002- |
