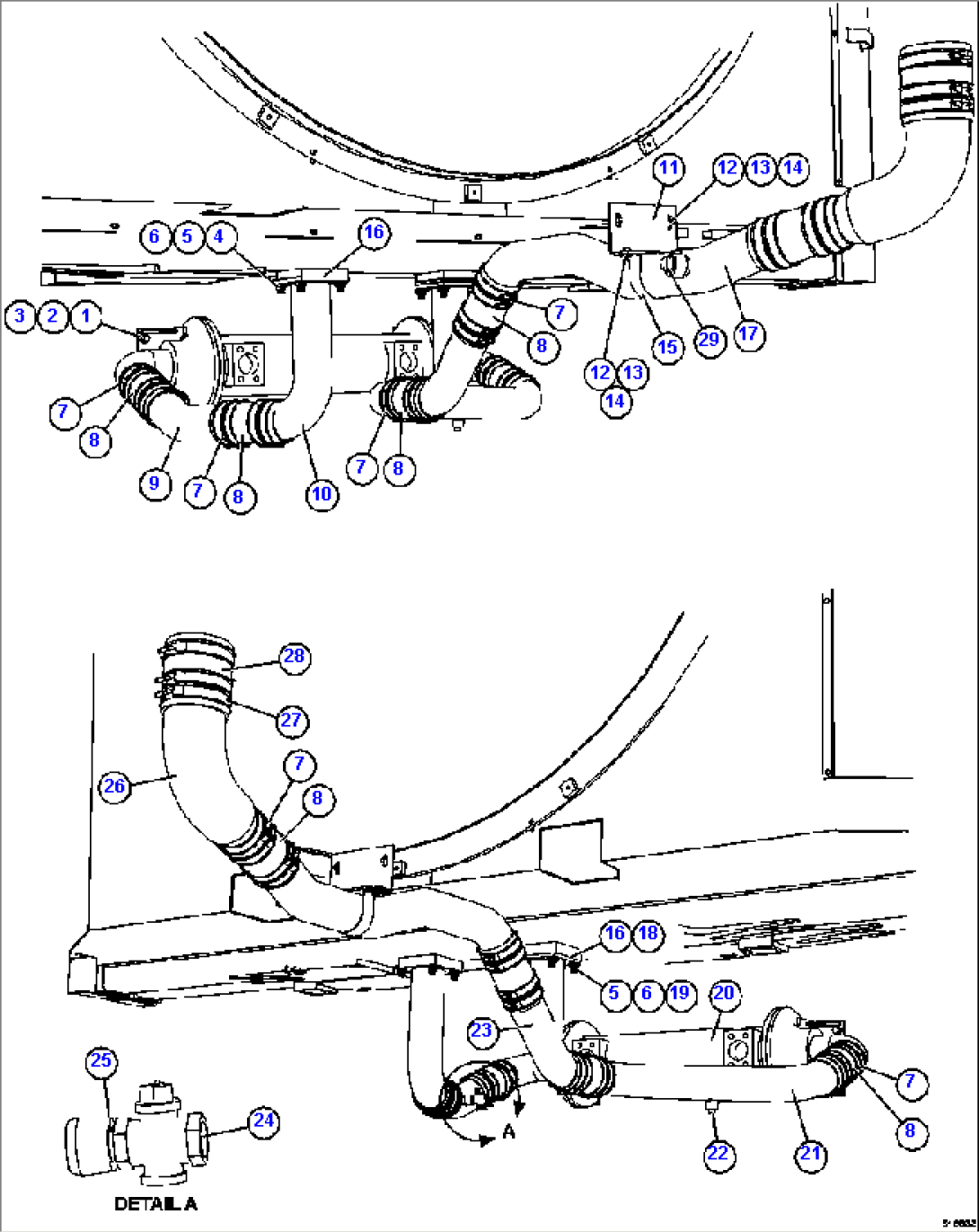

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0620 | CAPSCREW - M12 X 1.75 X 40 | ||
| 2 | MM0714 | FLAT WASHER - M12 | ||
| 3 | MM0472 | LOCKWASHER - M12 | ||
| 4 | WA0839 | CAPSCREW - 5/8" - 11NC X 1 1/2" | ||
| 5 | C1541 | LOCKWASHER - 5/8" | ||
| 6 | C1550 | FLAT WASHER - 5/8" | ||
| 7 | WB1049 | CLAMP - T-BOLT | ||
| 8 | EH0431 | HOSE | ||
| 9 | XB3523 | TUBE | ||
| 10 | XB3459 | TUBE | ||
| 11 | EH3380 | BRACKET | ||
| 12 | C1601 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 13 | C0312 | LOCKWASHER - 3/8" | ||
| 14 | DF3042 | FLAT WASHER - 3/8" | ||
| 15 | EF6665 | CLAMP | ||
| 16 | EF2781 | GASKET | ||
| 17 | XB7731 | TUBE | ||
| 18 | XB3581 | PLATE, ORIFICE | ||
| 19 | WA0857 | CAPSCREW - 5/8" - 11NC X 2" | ||
| 20 | PC2843 | HEAT EXCHANGER (SEE INDEX) | ||
| 21 | XB3521 | TUBE | ||
| 22 | C5771 | PLUG | ||
| 23 | XB3559 | TUBE | ||
| 24 | TF6957 | DRAIN COCK | ||
| 25 | E2579 | NIPPLE | ||
| 26 | XB3460 | TUBE | ||
| 27 | WB1051 | CLAMP, T-BOLT | ||
| 28 | ED0020 | HOSE | ||
| 29 | C5772 | PLUG, PIPE |
