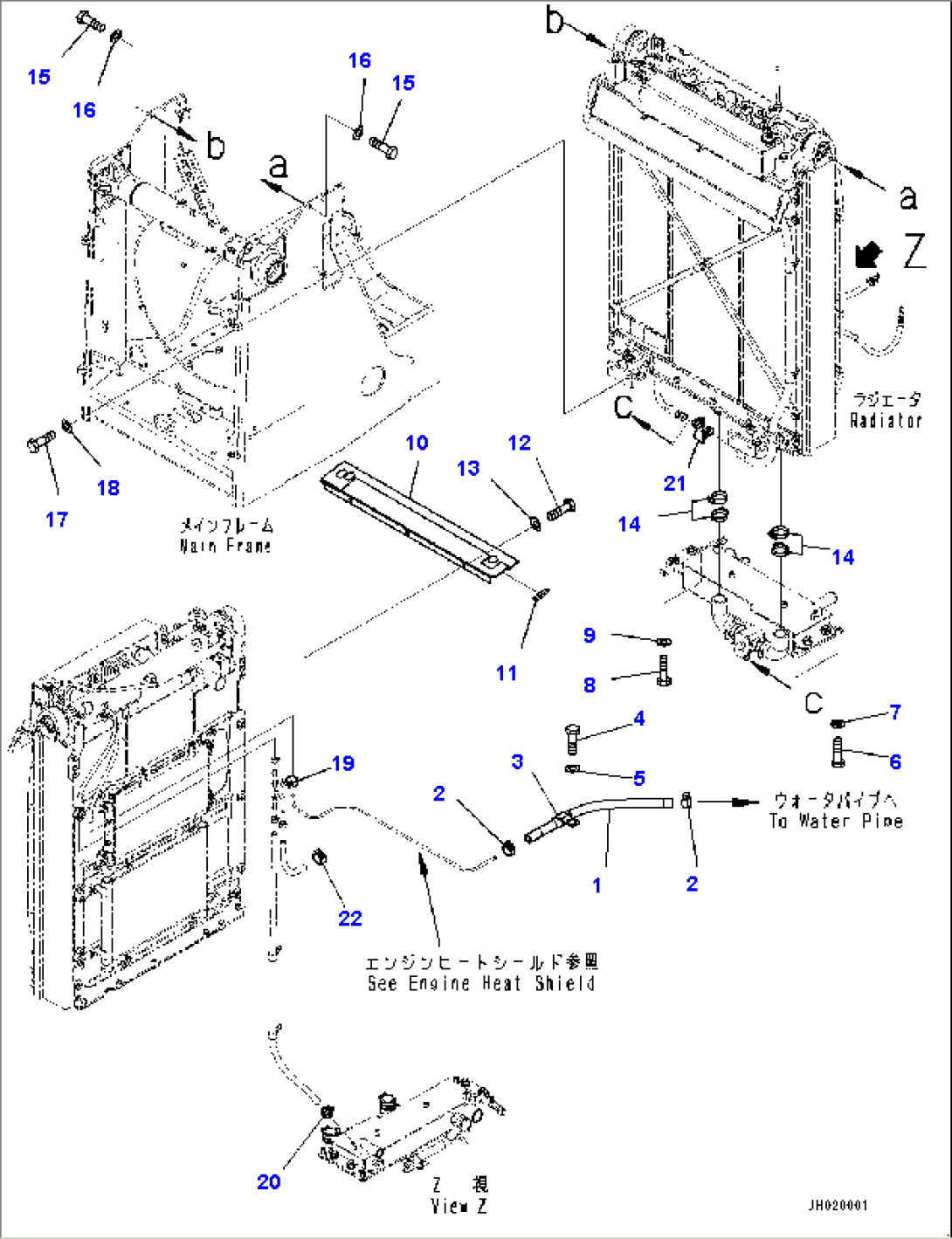

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-03-85331 | Hose | 22083- | |
| 2 | 11Y-09-11140 | Clip | 22083- | |
| 3 | 04434-51612 | Clip | 22083- | |
| 4 | 01010-81020 | Bolt | 22083- | |
| 5 | 01643-31032 | Washer | 22083- | |
| 6 | 01010-81235 | Bolt | 22083- | |
| 7 | 01643-31232 | Washer | 22083- | |
| 8 | 01010-81235 | Bolt | 22083- | |
| 9 | 01643-31232 | Washer | 22083- | |
| 10 | 154-03-81851 | Bracket | 22083- | |
| 11 | 154-03-75570 | Seal | 22083- | |
| 12 | 01010-81235 | Bolt | 22083- | |
| 13 | 01643-31232 | Washer | 22083- | |
| 14 | 07289-00070 | Clamp | 22083- | |
| 15 | 01010-81640 | Bolt | 22083- | |
| 16 | 01643-31645 | Washer | 22083- | |
| 17 | 01010-81240 | Bolt | 22083- | |
| 18 | 01643-31232 | Washer | 22083- | |
| 19 | 11Y-09-11140 | Clip | 22083- | |
| 20 | 11Y-09-11140 | Clip | 22083- | |
| 21 | 07289-00035 | Clamp | 22083- | |
| 22 | 11Y-09-11140 | Clip | 23024- |
