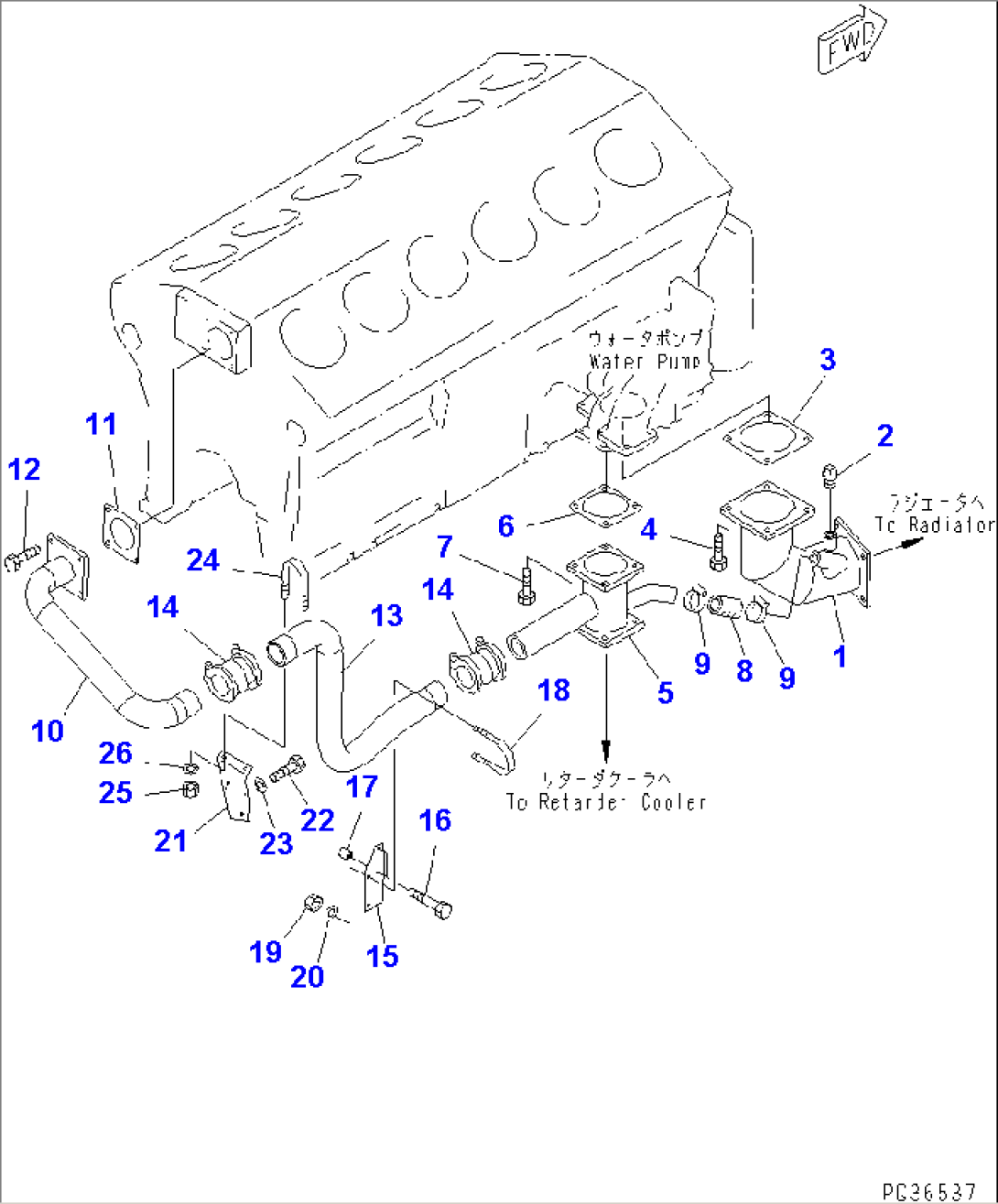

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6215-61-7350 | TUBE | 10036-12236 | |
| 2 | 07042-00415 | PLUG | 10036-12236 | |
| 3 | 6215-61-7360 | GASKET (K6) | 10036-12236 | |
| 4 | 01010-81230 | BOLT | 10036-12236 | |
| 5 | 6215-61-7330 | CONNECTOR | 10036-12236 | |
| 6 | 6215-61-7340 | GASKET (K6) | 10036-12236 | |
| 7 | 01010-81235 | BOLT | 10036-12236 | |
| 8 | 6127-61-6470 | HOSE | 10036-12236 | |
| 9 | 07281-00549 | CLAMP | 10036-12236 | |
| 10 | 6215-61-7421 | TUBE | 10047-12236 | |
| 11 | 6215-61-7490 | GASKET | 10036-12236 | |
| 12 | 01010-81275 | BOLT | 10036-12236 | |
| 13 | 6215-61-7412 | TUBE | 10047-12236 | |
| 14 | 07332-02000 | COUPLING | 10036-12236 | |
| 15 | 6215-61-7440 | STAY | 10036-12236 | |
| 16 | 01011-81010 | BOLT | 10036-12236 | |
| 17 | 6631-11-5630 | SPACER | 10036-12236 | |
| 18 | 07283-26155 | CLIP | 10036-12236 | |
| 19 | 01599-01011 | NUT | 10036-12236 | |
| 20 | 01643-31032 | WASHER | 10036-12236 | |
| 21 | 6215-61-7471 | STAY | 10047-12236 | |
| 22 | 01010-81035 | BOLT | 10036-12236 | |
| 23 | 01643-31232 | WASHER | 10047-12236 | |
| 24 | 07283-26155 | CLIP | 10036-12236 | |
| 25 | 01599-01011 | NUT | 10036-12236 | |
| 26 | 01643-31032 | WASHER | 10036-12236 |
