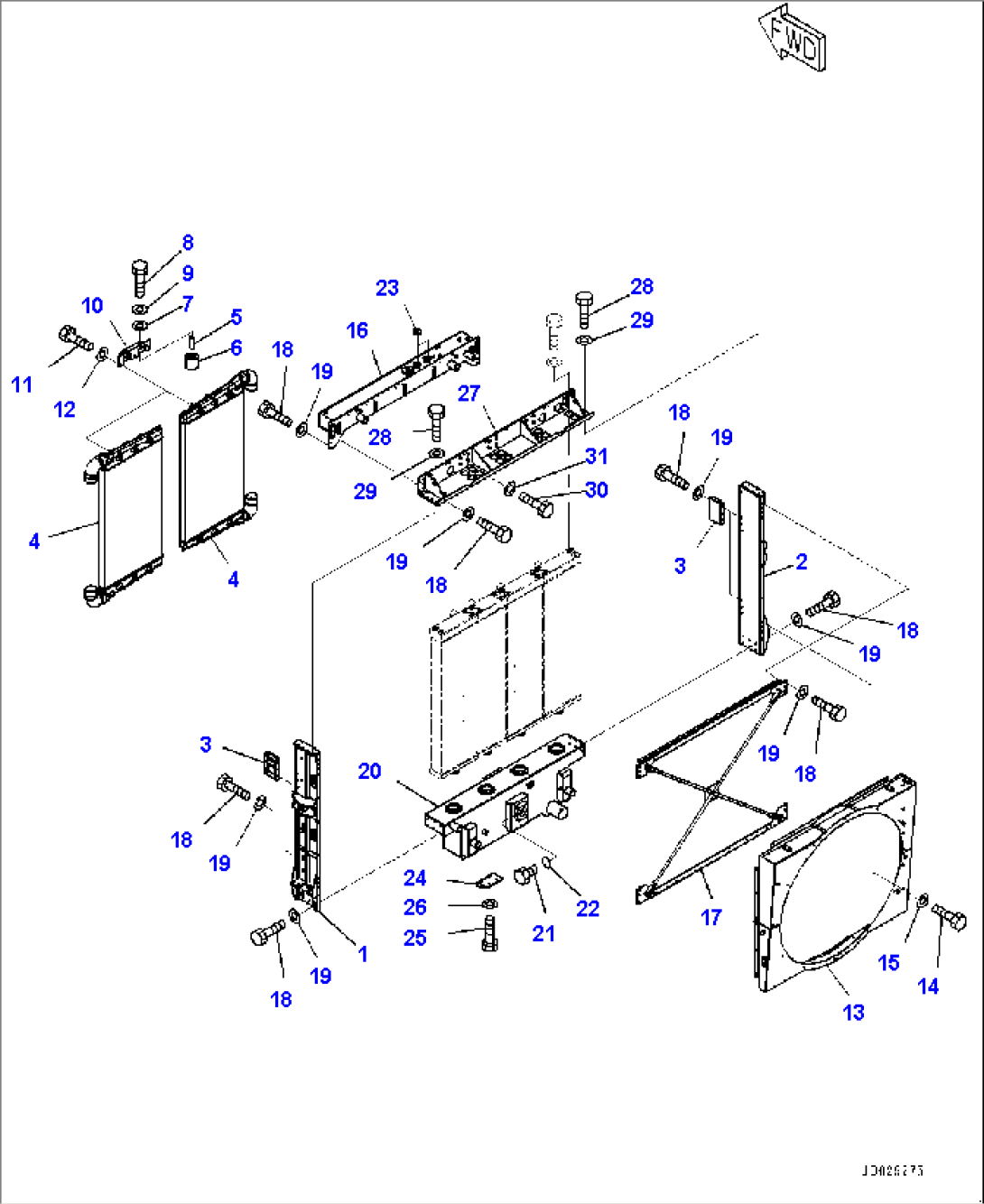

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-03-84108 | Radiator Assembly | 8832- | ||
| 1 | 561-03-81121 | Support | 8832- | |
| 2 | 561-03-81131 | Support | 8832- | |
| 3 | 561-03-81610 | Bracket | 8832- | |
| 4 | 561-03-81660 | Aftercooler | 8832- | |
| 5 | 21N-03-37960 | Spacer | 8832- | |
| 6 | 198-03-22290 | Isolator | 8832- | |
| 7 | 175-54-34170 | Washer | 8832- | |
| 8 | 01010-81280 | Bolt | 8832- | |
| 9 | 01643-31232 | Washer | 8832- | |
| 10 | 561-03-81921 | Bracket | 8832- | |
| 11 | 01010-81230 | Bolt | 8832- | |
| 12 | 01643-31232 | Washer | 8832- | |
| 13 | 561-03-81411 | Shroud | 8832- | |
| 14 | 01010-81225 | Bolt | 8832- | |
| 15 | 01643-31232 | Washer | 8832- | |
| 16 | 561-03-81110 | Tank, Upper | 8832- | |
| 17 | 561-03-81450 | Stay, Cross | 8832- | |
| 18 | 01010-81230 | Bolt | 8832- | |
| 19 | 01643-31232 | Washer | 8832- | |
| 20 | 561-03-81310 | Tank | 8832- | |
| 21 | 07040-11007 | Plug | 8832- | |
| 22 | 07002-21023 | O-ring | 8832- | |
| 23 | 569-03-81510 | Cap | 8832- | |
| 24 | 561-03-85190 | Bracket | 8832- | |
| 25 | 01010-81230 | Bolt | 8832- | |
| 26 | 01643-31232 | Washer | 8832- | |
| 27 | 561-03-81622 | Bracket | 8832- | |
| 28 | 01010-81225 | Bolt | 8832- | |
| 29 | 01643-31232 | Washer | 8832- | |
| 30 | 01010-81025 | Bolt | 8832- | |
| 31 | 01643-31032 | Washer | 8832- |
