| Item | Part No. | Part Name | Qty | Serial No. |

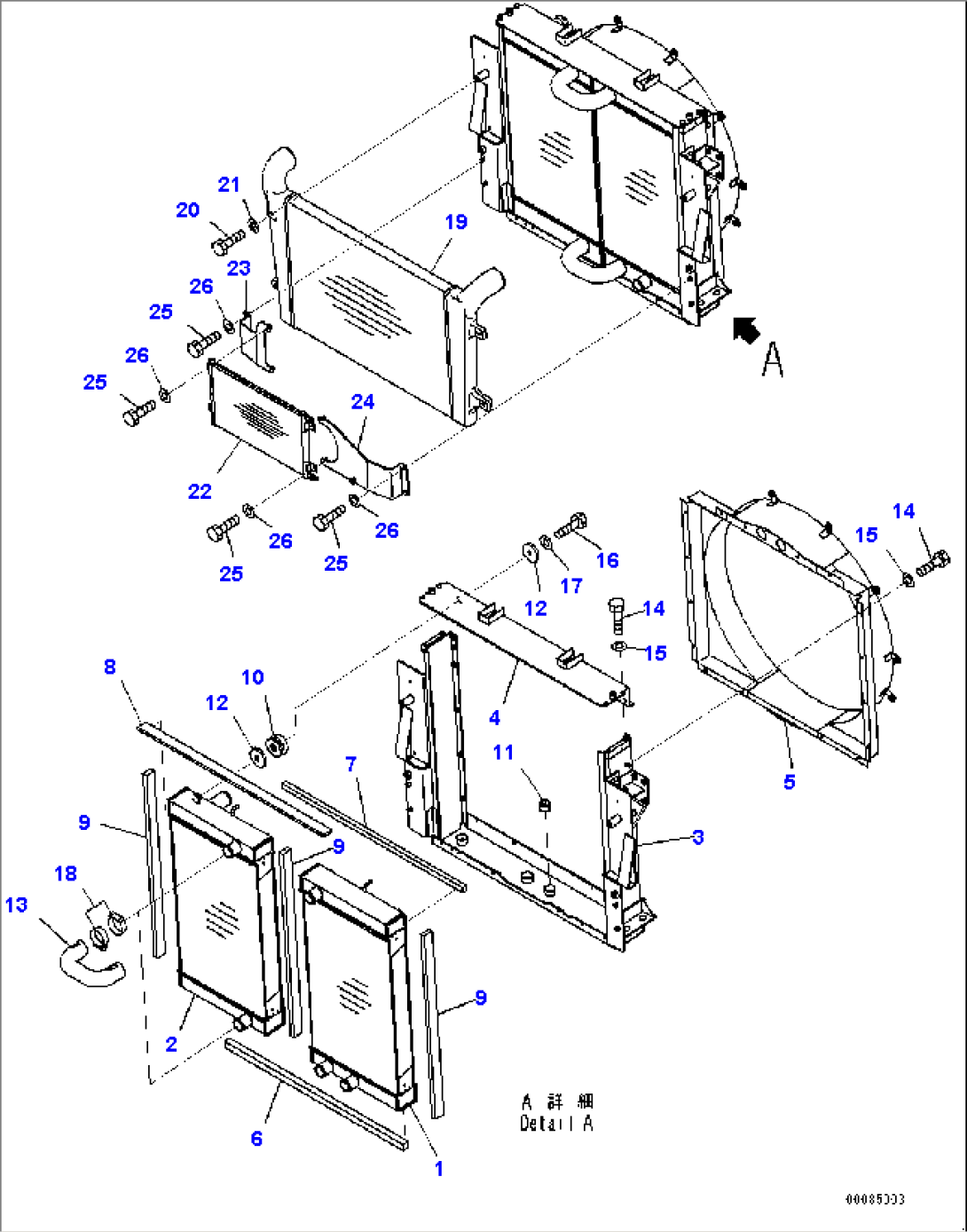

| 56B-03-23100 | Radiator Assembly | 2633-2840 | ||
| 56B-03-23200 | Radiator Subassembly | 2633-2840 | ||
| 1 | 56B-03-21210 | Core | 2633-2840 | |
| 2 | 56B-03-21220 | Core | 2633-2840 | |
| 3 | 56B-03-23230 | Frame | 2633-2840 | |
| 4 | 56B-03-21240 | Bracket | 2633-2840 | |
| 5 | 56B-03-21260 | Shroud | 2633-2840 | |
| 6 | 56B-03-21310 | Packing | 2633-2840 | |
| 7 | 56B-03-21320 | Packing | 2633-2840 | |
| 8 | 56B-03-21330 | Packing | 2633-2840 | |
| 9 | 56B-03-21340 | Packing | 2633-2840 | |
| 10 | 195-03-41380 | Cushion | 2633-2840 | |
| 11 | 23C-03-51751 | Cushion | 2633-2840 | |
| 12 | 207-03-75590 | Plate | 2633-2840 | |
| 13 | 56D-03-21250 | Hose | 2633-2840 | |
| 14 | 01010-81025 | Bolt | 2633-2840 | |
| 15 | 01643-31032 | Washer | 2633-2840 | |
| 16 | 01010-81050 | Bolt | 2633-2840 | |
| 17 | 01643-31032 | Washer | 2633-2840 | |
| 18 | 07299-00070 | Clamp | 2633-2840 | |
| 19 | 6212-62-4100 | Aftercooler Assembly | 2633-@ | |
| 20 | 01010-81245 | Bolt | 2633-@ | |
| 21 | 01643-31232 | Washer | 2633-@ | |
| 22 | 56D-07-21100 | Condenser Assembly | 2633-@ | |
| 23 | 56B-07-22861 | Bracket | 2633-@ | |
| 24 | 56B-07-22871 | Bracket | 2633-@ | |
| 25 | 01010-80820 | Bolt | 2633-@ | |
| 26 | 01643-30823 | Washer | 2633-@ |
