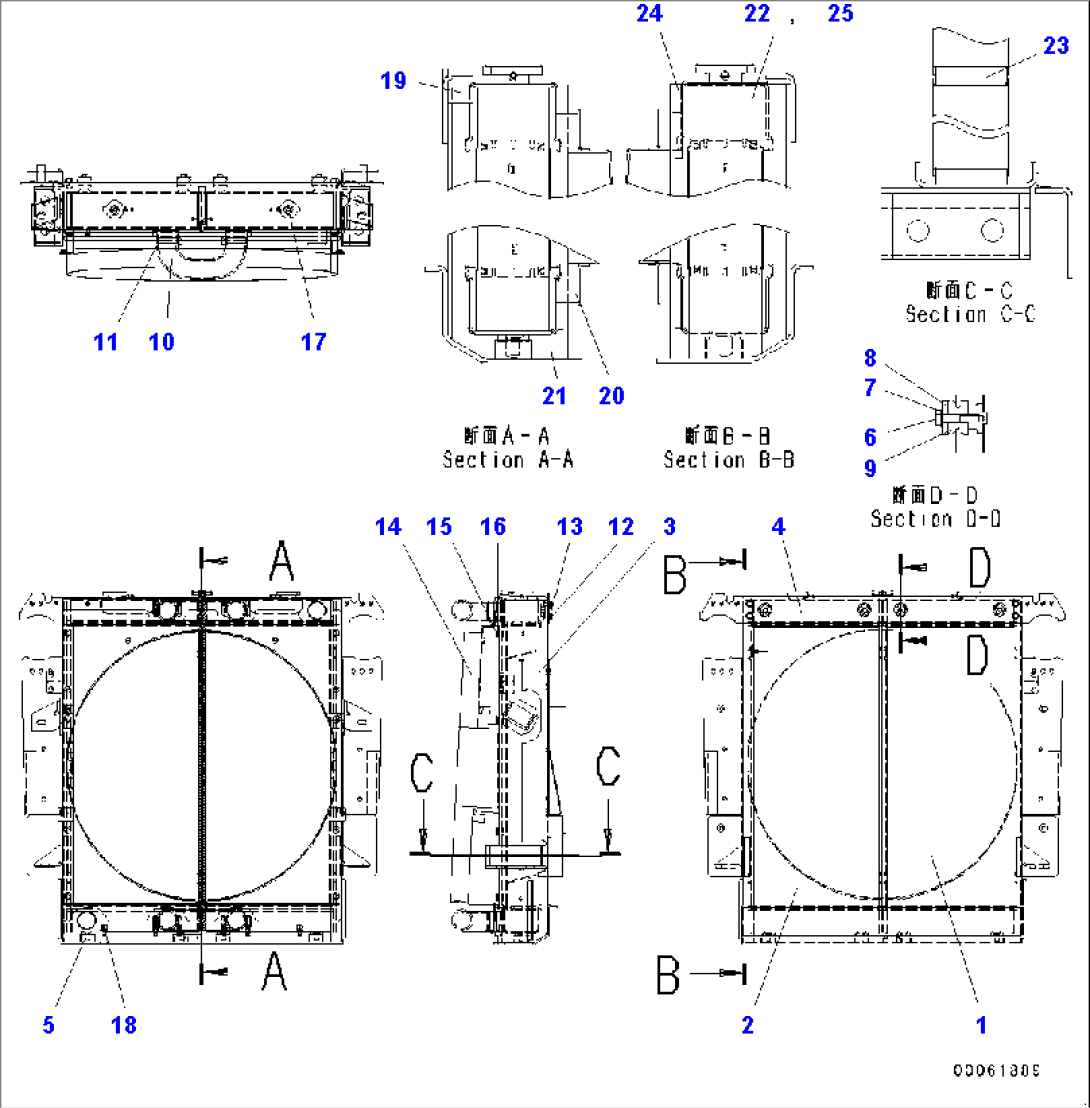

| Item | Part No. | Part Name | Qty | Serial No. |
| 56D-03-21103 | Cooler Assembly | 2906- | ||
| 56D-03-21203 | Radiator Assembly | 2906- | ||
| 1 | 56D-03-21211 | Core | 2906- | |
| 2 | 56D-03-21221 | Core | 2906- | |
| 3 | 56D-03-21231 | Frame | 2906- | |
| 4 | 56D-03-21240 | Bracket | 2906- | |
| 5 | 23C-03-51751 | Cushion | 2906- | |
| 6 | 01010-81050 | Bolt | 2906- | |
| 7 | 01643-31032 | Washer | 2906- | |
| 8 | 207-03-75590 | Plate | 2906- | |
| 9 | 195-03-41380 | Cushion | 2906- | |
| 10 | 56D-03-21250 | Hose | 2906- | |
| 11 | 07299-00070 | Clamp | 2906- | |
| 12 | 01010-81025 | Bolt | 2906- | |
| 13 | 01643-31032 | Washer | 2906- | |
| 14 | 56D-03-21260 | Shroud | 2906- | |
| 15 | 01010-81025 | Bolt | 2906- | |
| 16 | 01643-31032 | Washer | 2906- | |
| 17 | 104-03-41230 | Cap | 2906- | |
| 18 | 205-03-62660 | Plug | 2906- | |
| 07000-11007 | O-ring | 2906- | ||
| 19 | 56D-03-21280 | Packing | 2906- | |
| 20 | 56D-03-21291 | Packing | 2906- | |
| 21 | 56D-03-21310 | Packing | 2906- | |
| 22 | 56D-03-21321 | Packing | 2906- | |
| 23 | 56D-03-21330 | Packing | 2906- | |
| 24 | 56D-03-21360 | Packing | 2906- | |
| 25 | 56D-03-21370 | Packing | 2906- |
