| Item | Part No. | Part Name | Qty | Serial No. |

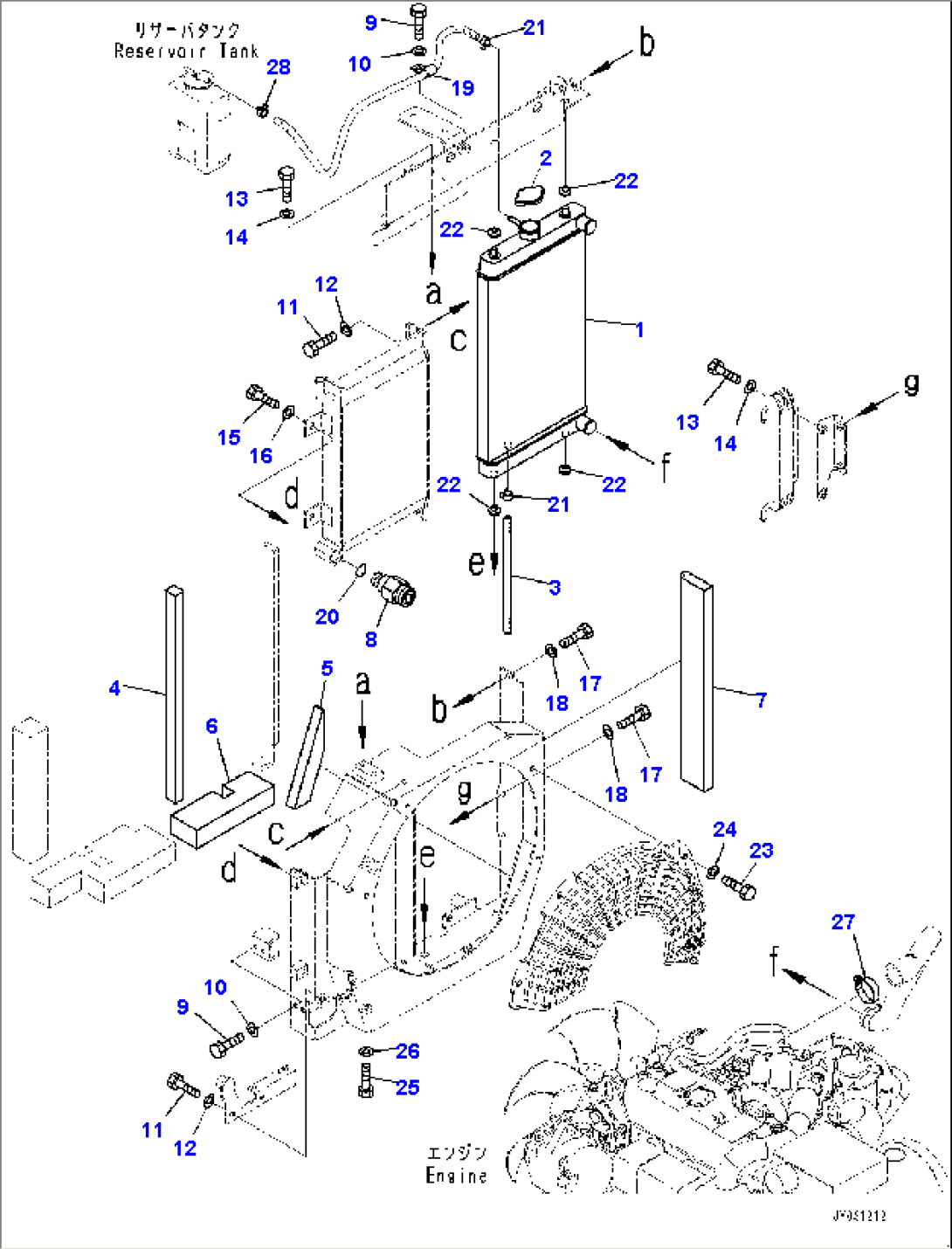

| 1 | 22L-03-21111 | Radiator Assembly | 30001- | |
| 1 | 205-03-62660 | Plug | 30001- | |
| 2 | 203-03-51360 | Cap | 30001- | |
| 3 | 22L-03-21180 | Hose | 30001- | |
| 4 | 22L-03-21231 | Sheet | 30001- | |
| 5 | 22L-03-21361 | Sheet | 30001- | |
| 6 | 22L-03-21381 | Sheet | 30001- | |
| 7 | 22L-03-21491 | Sheet | 30001- | |
| 8 | 22L-62-22621 | Union | 30001- | |
| 9 | 01010-80812 | Bolt | 30001- | |
| 10 | 01643-30823 | Washer | 30001- | |
| 11 | 01010-80816 | Bolt | 30001- | |
| 12 | 01643-30823 | Washer | 30001- | |
| 13 | 01010-80820 | Bolt | 30001- | |
| 14 | 01643-30823 | Washer | 30001- | |
| 15 | 01010-81020 | Bolt | 30001- | |
| 16 | 01643-31032 | Washer | 30001- | |
| 17 | 01010-D0820 | Bolt | 30001- | |
| 18 | 01643-70823 | Washer | 30001- | |
| 19 | 04434-51208 | Clip | 30001- | |
| 20 | 07002-12434 | O-ring | 30001- | |
| 21 | 07285-00115 | Clip | 30001- | |
| 22 | 08037-01008 | Grommet | 30001- | |
| 23 | 01010-80816 | Bolt | 30001- | |
| 24 | 01643-30823 | Washer | 30001- | |
| 25 | 01010-81030 | Bolt | 30001- | |
| 26 | 01643-31032 | Washer | 30001- | |
| 27 | 07281-00489 | Clamp, Hose | 30001- | |
| 28 | 07285-00115 | Clip | 30001- |
