| Item | Part No. | Part Name | Qty | Serial No. |

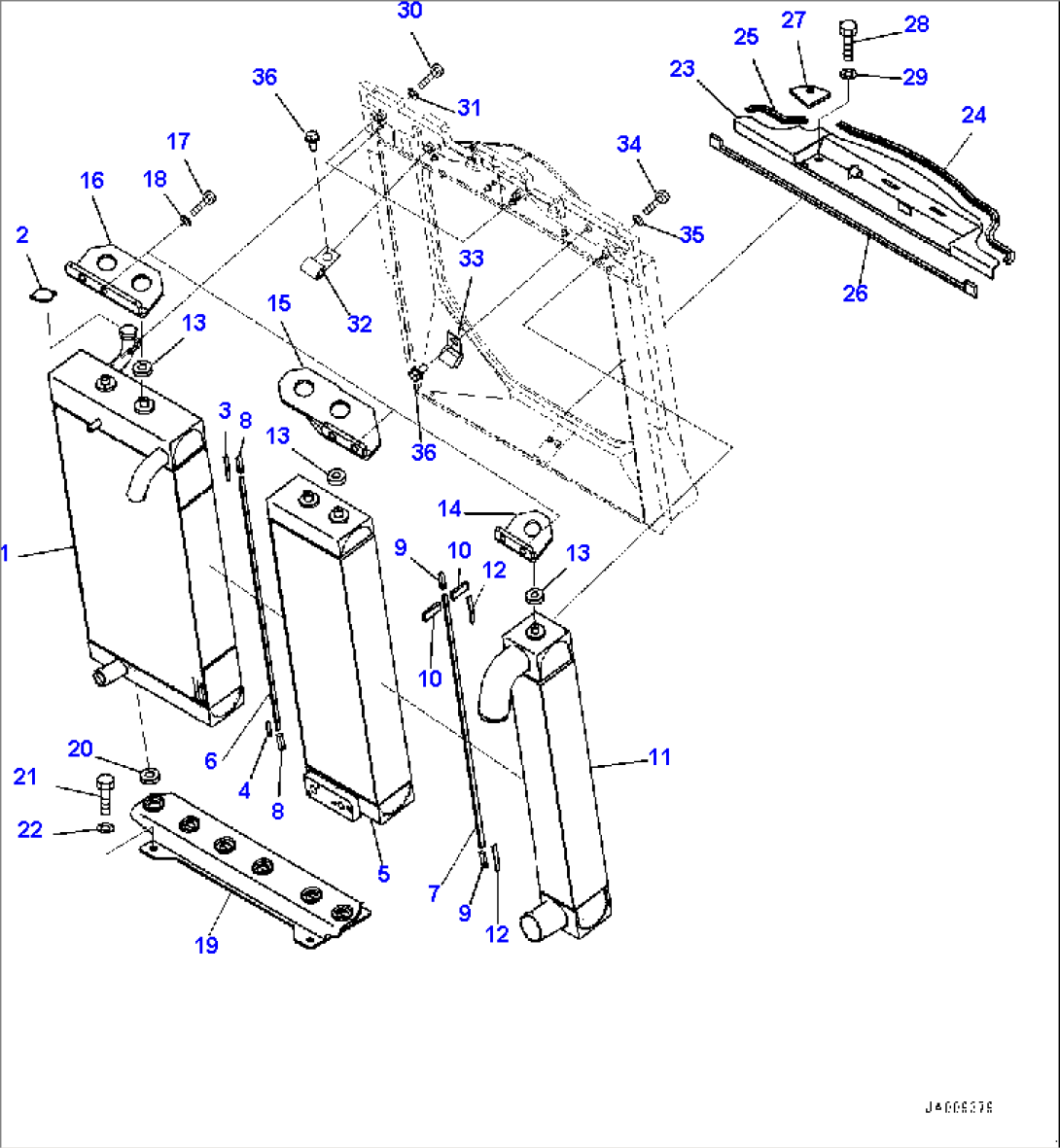

| 13Y-03-17180 | Radiator Assembly | B50001- | ||
| 1 | Radiator Core Assembly | B50001-- | ||
| 2 | 12Y-03-13880 | Cap | B50001-- | |
| 3 | 13Y-03-11180 | Seal | B50001-- | |
| 4 | 13Y-03-11190 | Seal | B50001-- | |
| 4 | 13Y-03-17160 | Oil Cooler Assembly | B50001-- | |
| 5 | Oil Cooler | B50001-- | ||
| 6 | 13Y-03-11142 | Seal | B50001-- | |
| 7 | 13Y-03-11152 | Seal | B50001-- | |
| 8 | 13Y-03-11160 | Seal | B50001-- | |
| 9 | 13Y-03-11171 | Seal | B50001-- | |
| 10 | 13Y-03-11430 | Seal | B50001-- | |
| 10 | 13Y-03-17170 | Aftercooler Assembly | B50001-- | |
| 11 | Aftercooler | B50001-- | ||
| 12 | 13Y-03-11410 | Seal | B50001-- | |
| 13 | 13Y-03-11281 | Cushion | B50001-- | |
| 14 | 13Y-03-11212 | Bracket | B50001-- | |
| 15 | 13Y-03-17331 | Bracket | B50001-- | |
| 16 | 13Y-03-17340 | Bracket | B50001-- | |
| 17 | 01010-81235 | Bolt | B50001-- | |
| 18 | 01643-31232 | Washer | B50001-- | |
| 19 | 13Y-03-17141 | Bracket | B50001-- | |
| 20 | 13Y-03-11281 | Cushion | B50001-- | |
| 21 | 01010-81635 | Bolt | B50001-- | |
| 22 | 01643-31645 | Washer | B50001-- | |
| 23 | 13Y-03-11204 | Cover Assembly | B50001-- | |
| Cover | B50001-- | |||
| 24 | 13Y-03-11240 | Seal | B50001-- | |
| 25 | 13Y-03-11250 | Seal | B50001-- | |
| 26 | 13Y-03-11261 | Seal | B50001-- | |
| 27 | 13Y-03-11270 | Seal | B50001-- | |
| 28 | 01010-81225 | Bolt | B50001-- | |
| 29 | 01643-31232 | Washer | B50001-- | |
| 30 | 01010-81235 | Bolt | B50001-- | |
| 31 | 01643-31032 | Washer | B50001-- | |
| 32 | 04434-51210 | Clip | B50001-- | |
| 33 | 07285-00110 | Clip | B50001-- | |
| 34 | 01010-81235 | Bolt | B50001-- | |
| 35 | 01643-31032 | Washer | B50001-- | |
| 36 | 01010-81020 | Bolt | B50001-- |
