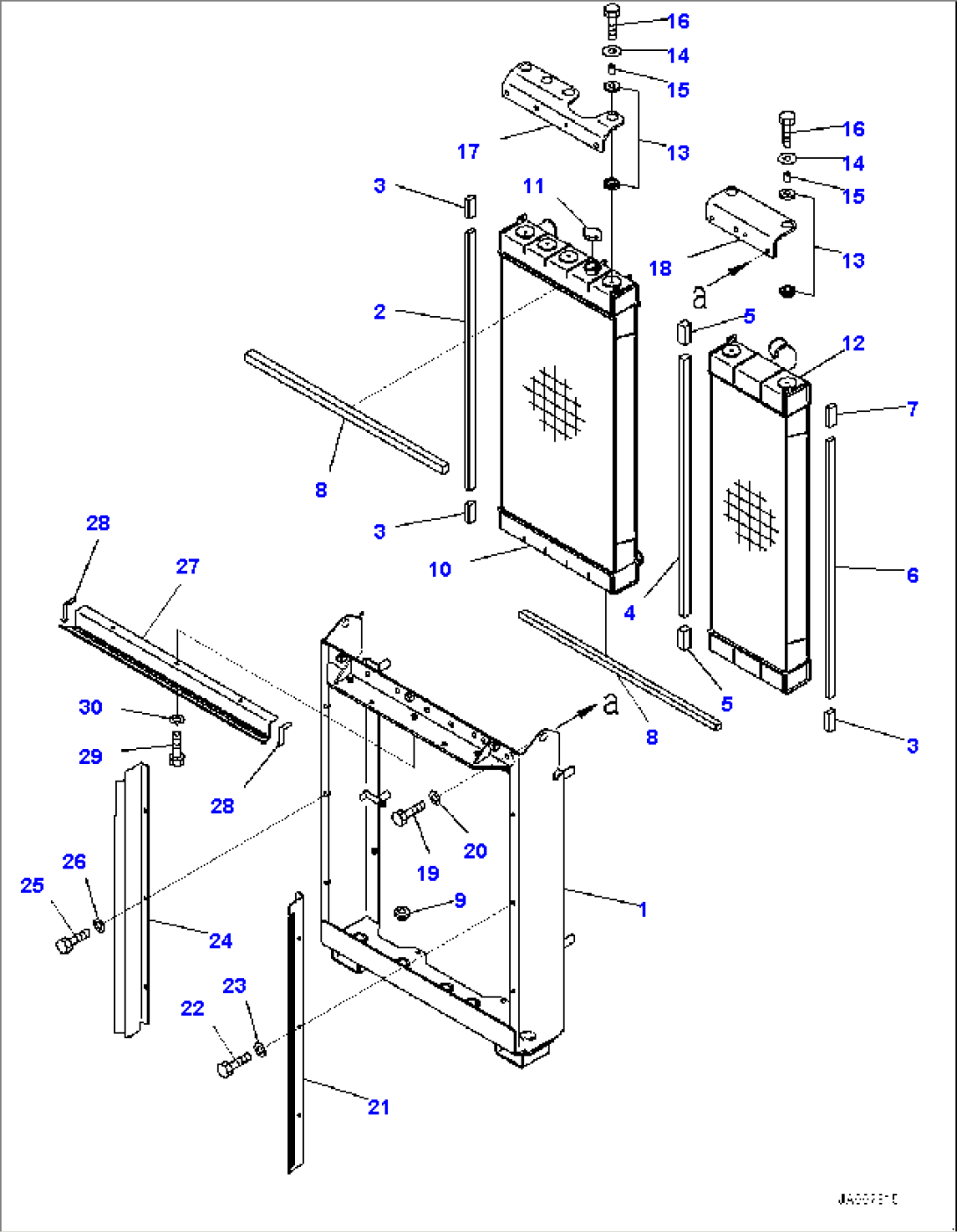

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-03-51131 | Frame | 10001- | |
| 2 | 14X-03-51510 | Seal | 10001- | |
| 3 | 14X-03-51520 | Seal | 10001- | |
| 4 | 14X-03-51530 | Seal | 10001- | |
| 5 | 14X-03-51540 | Seal | 10001- | |
| 6 | 14X-03-51650 | Seal | 10001- | |
| 7 | 14X-03-51660 | Seal | 10001- | |
| 8 | 14X-03-51590 | Seal | 10001- | |
| 9 | 20Y-03-41580 | Cushion | 10001- | |
| 10 | 14X-03-51111 | Radiator Core Assembly | 10001- | |
| 11 | 20U-03-21540 | Cap | 10001- | |
| 12 | 14X-03-51121 | Aftercooler Assembly | 10001- | |
| 13 | 14X-03-51621 | Cushion | 10001- | |
| 14 | 14X-03-51770 | Washer | 10001- | |
| 15 | 14X-03-51640 | Spacer | 10001- | |
| 16 | 01010-81045 | Bolt | 10001- | |
| 17 | 14X-03-51740 | Bracket | 10001- | |
| 18 | 14X-03-51750 | Bracket | 10001- | |
| 19 | 01010-81235 | Bolt | 10001- | |
| 20 | 01643-31232 | Washer | 10001- | |
| 21 | 14X-03-51411 | Baffle | 10001- | |
| 22 | 01010-81025 | Bolt | 10001- | |
| 23 | 01643-31032 | Washer | 10001- | |
| 24 | 14X-03-51421 | Baffle | 10001- | |
| 25 | 01010-81025 | Bolt | 10001- | |
| 26 | 01643-31032 | Washer | 10001- | |
| 27 | 14X-03-51431 | Baffle | 10001- | |
| 28 | 14X-03-51570 | Seal | 10001- | |
| 29 | 01010-81025 | Bolt | 10001- | |
| 30 | 01643-31032 | Washer | 10001- |
