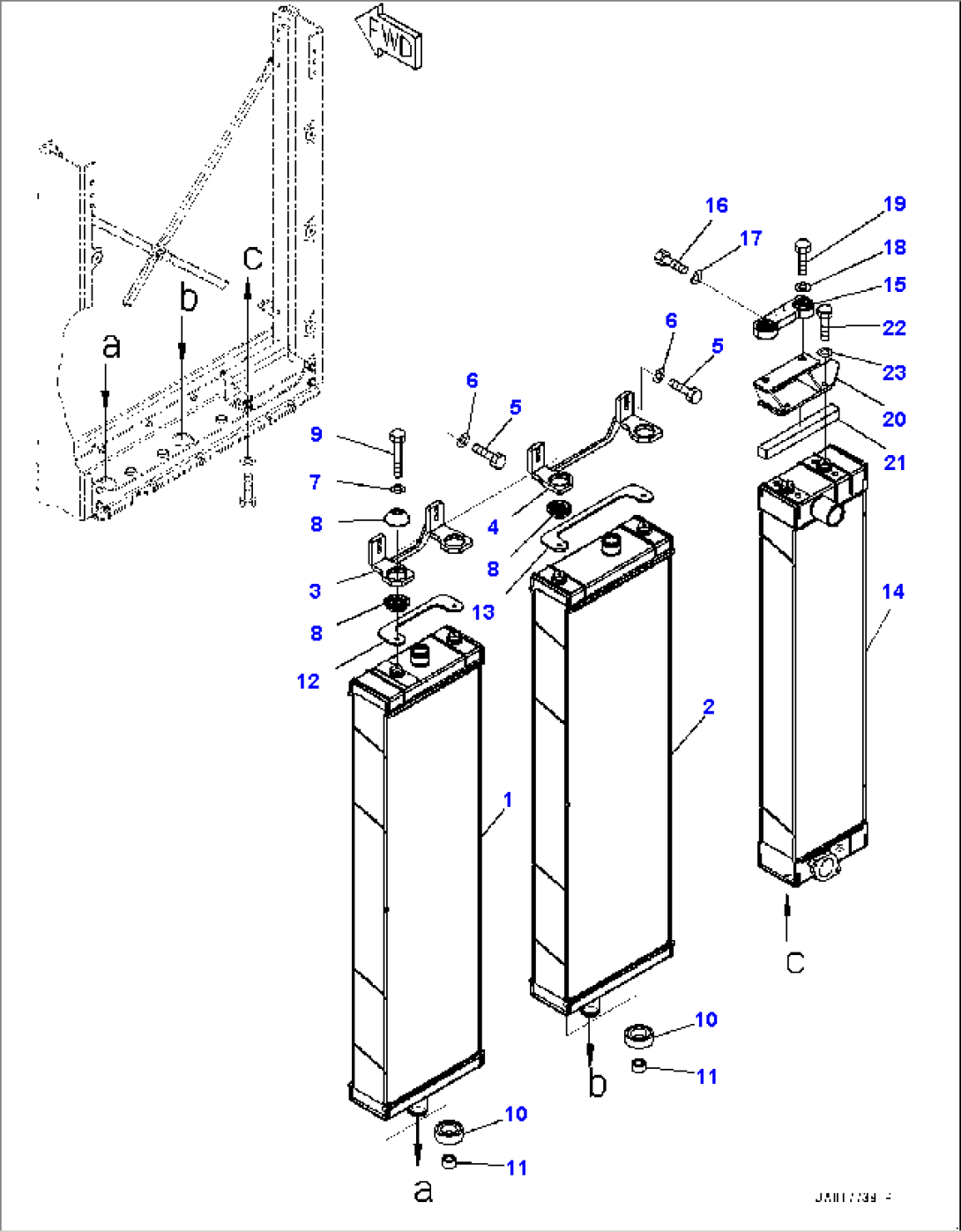

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-03-81112 | Radiator | 22001- | |
| 2 | 154-03-81122 | Radiator | 22001- | |
| 3 | 154-03-85931 | Bracket | 22001- | |
| 4 | 154-03-85921 | Bracket | 22001- | |
| 5 | 01010-81030 | Bolt | 22001- | |
| 6 | 01643-31032 | Washer | 22001- | |
| 7 | 154-03-76280 | Washer | 22001- | |
| 8 | 17A-03-41361 | Cushion | 22001- | |
| 9 | 01010-81090 | Bolt | 22001- | |
| 10 | 209-03-41280 | Cushion | 22001- | |
| 11 | 22B-03-12590 | Cushion | 22001- | |
| 12 | 154-03-86911 | Plate | 22001- | |
| 13 | 154-03-86921 | Plate | 22001- | |
| 14 | 154-03-81172 | Aftercooler | 22001- | |
| 15 | 154-03-81590 | Bracket | 22001- | |
| 16 | 01010-81225 | Bolt | 22001- | |
| 17 | 01643-31232 | Washer | 22001- | |
| 18 | 01643-31445 | Washer, Flat | 22001- | |
| 19 | 01010-81465 | Bolt | 22001- | |
| 20 | 154-03-81552 | Bracket | 22001- | |
| 21 | 154-03-81570 | Seal | 22001- | |
| 22 | 01010-81025 | Bolt | 22001- | |
| 23 | 01643-31032 | Washer | 22001- |
