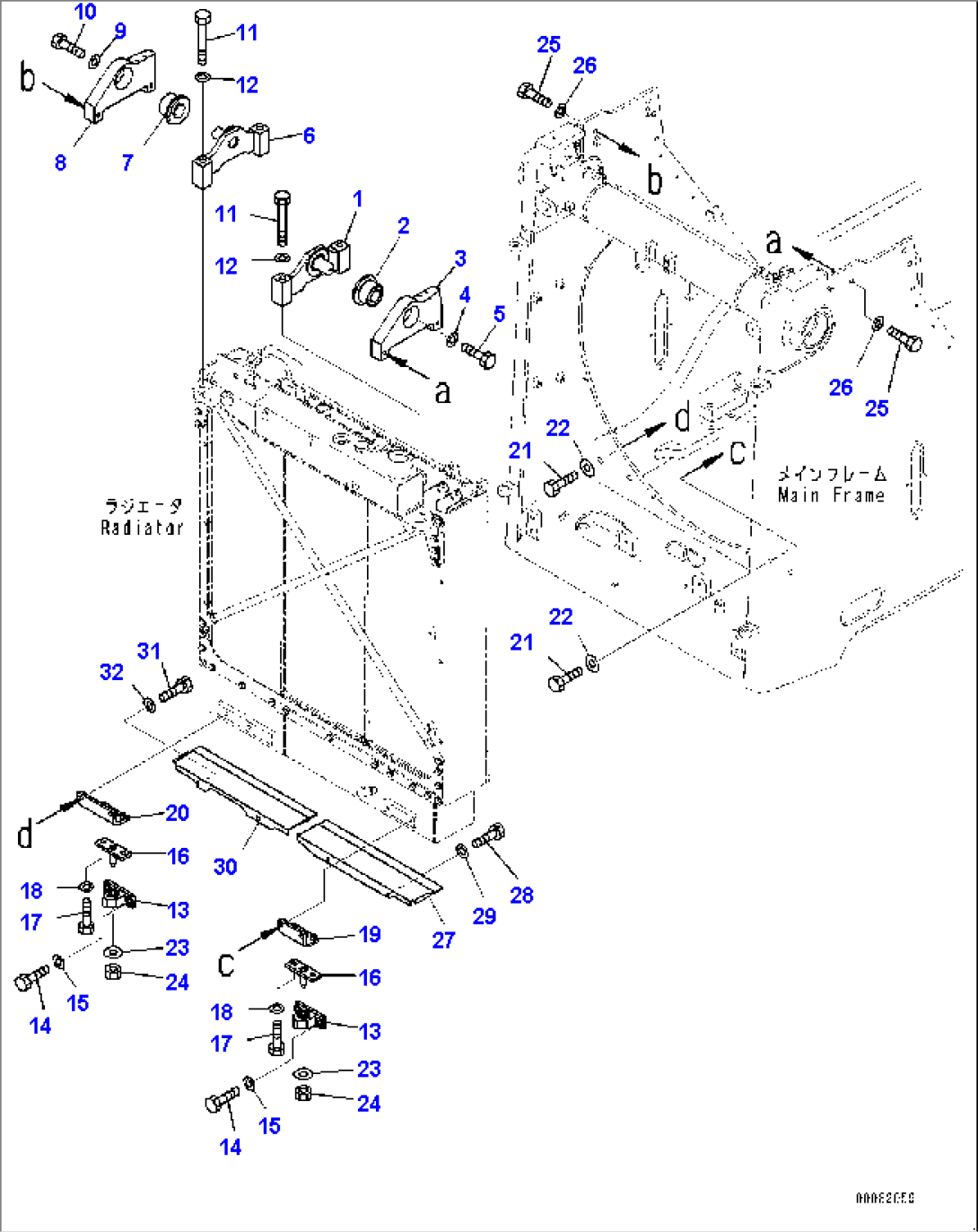

| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-03-41671 | Bracket Assembly | 85446-@ | ||
| 1 | 17A-03-41550 | Bracket | 85446-@ | |
| 2 | 17A-03-11281 | Rubber | 85446-@ | |
| 3 | Bracket | 85446-@ | ||
| 4 | 205-70-65890 | Washer | 85446-@ | |
| 5 | 01010-81225 | Bolt | 85446-@ | |
| 5 | 17A-03-41681 | Bracket Assembly | 85446-@ | |
| 6 | 17A-03-41560 | Bracket | 85446-@ | |
| 7 | 17A-03-11281 | Rubber | 85446-@ | |
| 8 | Bracket | 85446-@ | ||
| 9 | 205-70-65890 | Washer | 85446-@ | |
| 10 | 01010-81225 | Bolt | 85446-@ | |
| 11 | 01011-81630 | Bolt | 85446-@ | |
| 12 | 01643-31645 | Washer | 85446-@ | |
| 13 | 17A-03-42601 | Isolator Assembly | 85446-@ | |
| 14 | 01010-81230 | Bolt | 85446-@ | |
| 15 | 01643-31232 | Washer | 85446-@ | |
| 16 | 17A-03-11271 | Bracket | 85446-@ | |
| 17 | 01010-81240 | Bolt | 85446-@ | |
| 18 | 01643-31232 | Washer | 85446-@ | |
| 19 | 17A-03-41831 | Bracket | 85446-@ | |
| 20 | 17A-03-41950 | Bracket | 85446-@ | |
| 21 | 01010-81250 | Bolt | 85446-@ | |
| 22 | 175-54-34170 | Washer | 85446-@ | |
| 23 | 175-54-34170 | Washer | 85446-@ | |
| 24 | 01580-11210 | Nut | 85446-@ | |
| 25 | 01010-81645 | Bolt | 85446-@ | |
| 26 | 01643-31645 | Washer | 85446-@ | |
| 27 | 17A-03-41421 | Baffle | 85446-@ | |
| 28 | 01010-81225 | Bolt | 85446-@ | |
| 29 | 01643-31232 | Washer | 85446-@ | |
| 30 | 17A-03-41431 | Baffle | 85446-@ | |
| 31 | 01010-81225 | Bolt | 85446-@ | |
| 32 | 01643-31232 | Washer | 85446-@ |
