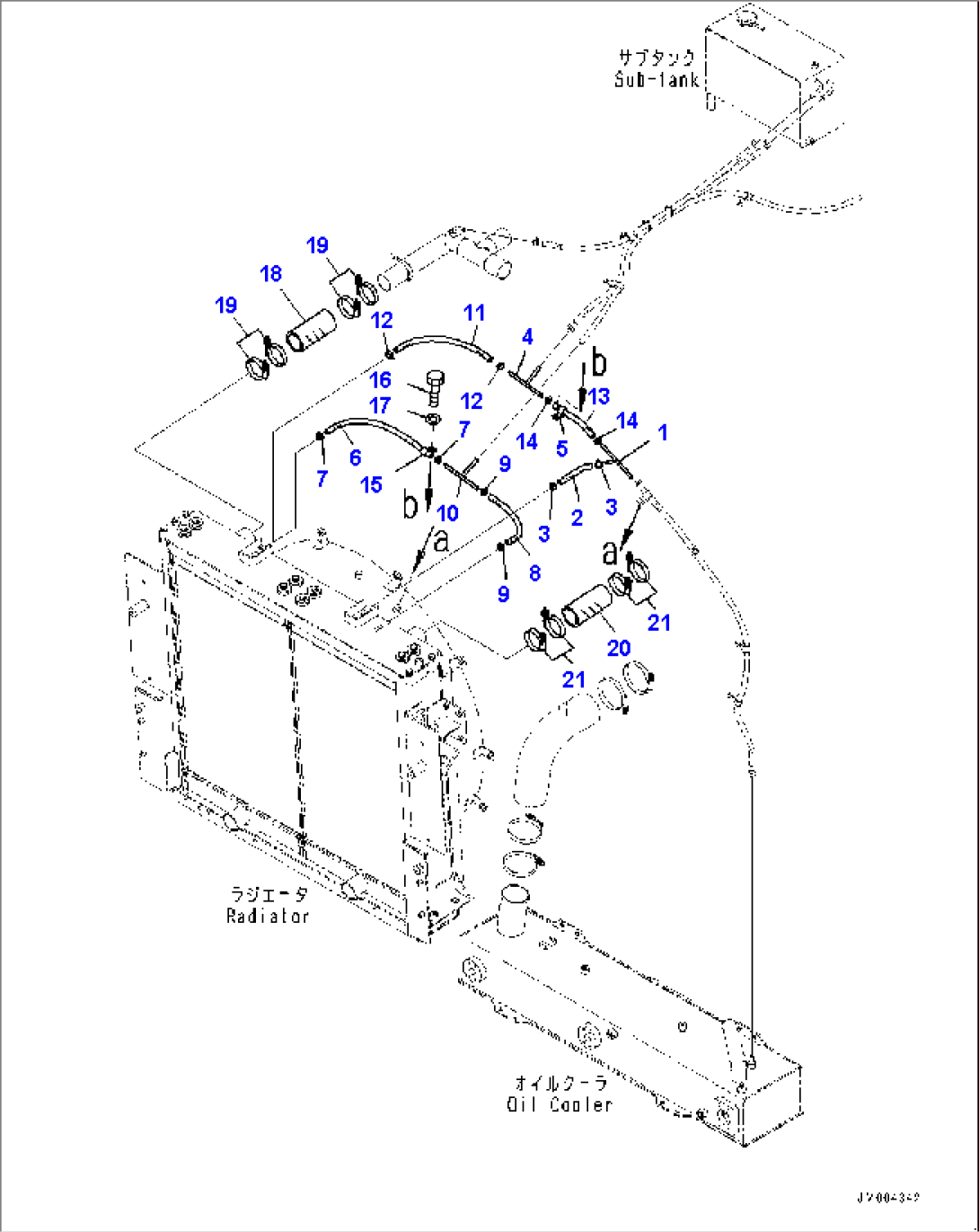

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-03-12460 | Tube | 2924- | |
| 2 | 203-01-12150 | Hose | 2924- | |
| 3 | 11Y-09-11140 | Clip | 2924- | |
| 4 | 427-03-12460 | Tube | 2924- | |
| 5 | 04434-51610 | Clip | 2924- | |
| 6 | 56B-03-24590 | Hose | 2924- | |
| 7 | 11Y-09-11140 | Clip | 2924- | |
| 8 | 56B-03-21410 | Hose | 2924- | |
| 9 | 11Y-09-11140 | Clip | 2924- | |
| 10 | 427-03-12460 | Tube | 2924- | |
| 11 | 09483-10304 | Hose | 2924- | |
| 12 | 11Y-09-11140 | Clip | 2924- | |
| 13 | 203-01-12150 | Hose | 2924- | |
| 14 | 11Y-09-11140 | Clip | 2924- | |
| 15 | 04434-51610 | Clip | 2924- | |
| 16 | 01010-81020 | Bolt | 2924- | |
| 17 | 01643-31032 | Washer | 2924- | |
| 18 | 56B-03-21470 | Hose | 2924- | |
| 19 | 07299-00070 | Clamp | 2924- | |
| 20 | 56B-03-21470 | Hose | 2924- | |
| 21 | 07299-00070 | Clamp | 2924- |
