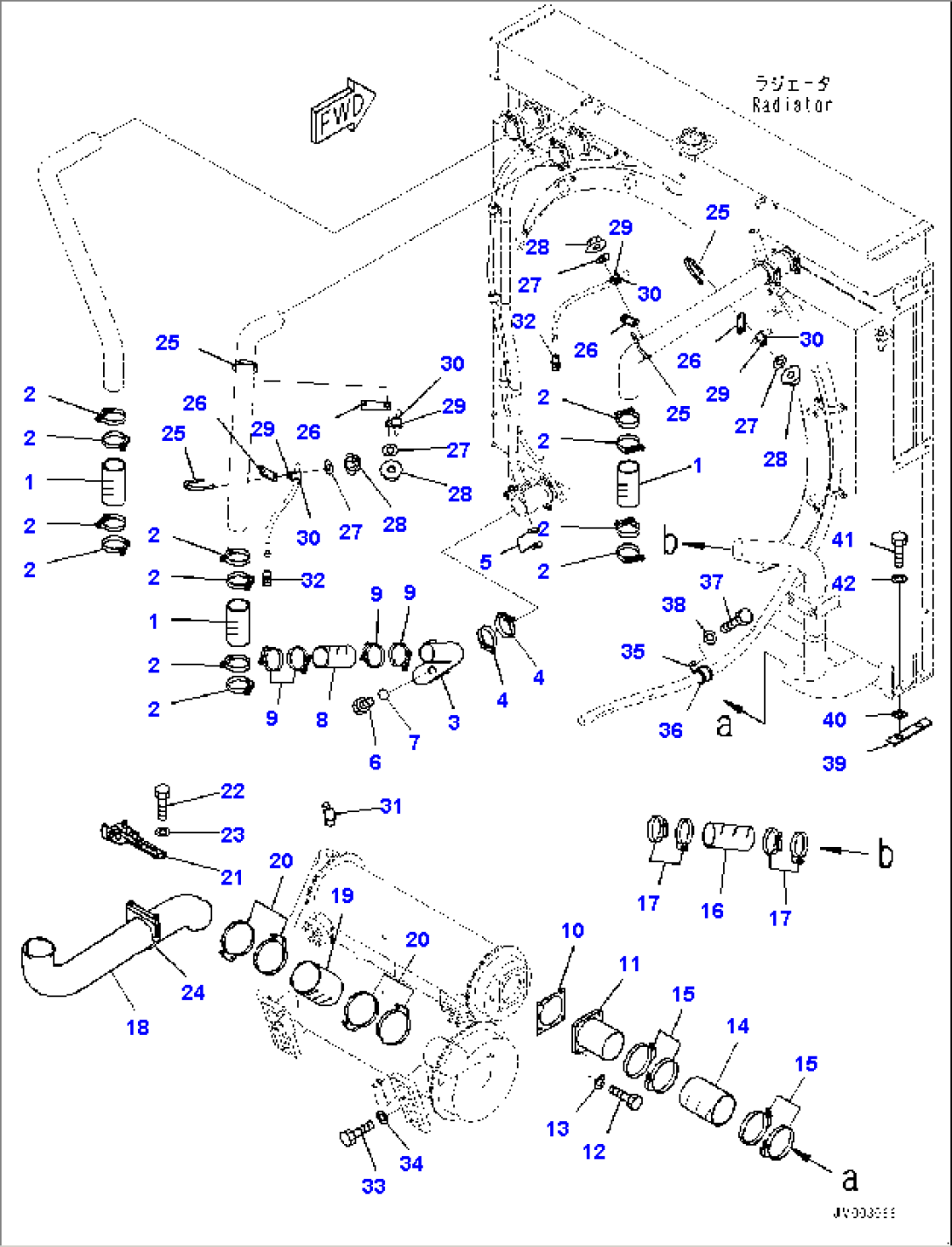

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AHEL9220 | Hose | 80138- | |
| 2 | AHWA1054 | Clamp | 80138- | |
| 3 | 562-03-31180 | Tube | 80138- | |
| 4 | AHWA1054 | Clamp | 80138- | |
| 5 | 07289-00035 | Clamp | 80158- | |
| 5 | AHCD8419 | Clamp | 80138-80157 | |
| 6 | 07040-12412 | Plug | 80138- | |
| 7 | 07002-12434 | O-ring | 80138- | |
| 8 | AHEL9220 | Hose | 80138- | |
| 9 | AHWA1054 | Clamp | 80138- | |
| 10 | 562-03-31250 | Gasket | 80138- | |
| 11 | 562-03-31110 | Tube | 80138- | |
| 12 | 02010-80632 | Bolt, Unified | 80138- | |
| 13 | 01643-31032 | Washer | 80138- | |
| 14 | AHEF7183 | Hose | 80138- | |
| 15 | AHWA1061 | Clamp | 80138- | |
| 16 | AHEF7181 | Hose | 80138- | |
| 17 | AHVN0823 | Clamp | 80138- | |
| 18 | AHEL9782 | Tube | 80138- | |
| 19 | AHEF7183 | Hose | 80138- | |
| 20 | AHWA1061 | Clamp | 80138- | |
| 21 | 562-03-31240 | Bracket | 80138- | |
| 22 | 01010-81220 | Bolt | 80138- | |
| 23 | 01643-31232 | Washer | 80138- | |
| 24 | AHKC4602 | Clamp | 80138- | |
| 25 | 07283-37663 | Clip | 80138- | |
| 26 | 561-04-61290 | Plate | 80138- | |
| 27 | 01643-31032 | Washer | 80138- | |
| 28 | 01597-01009 | Nut | 80138- | |
| 29 | 04434-52511 | Clip | 80158- | |
| 29 | 04434-52712 | Clip | 80138-80157 | |
| 30 | 07095-20318 | Cushion | 80158- | |
| 30 | 07095-20419 | Cushion | 80138-80157 | |
| 31 | AHWB0288 | Fitting | 80138- | |
| 32 | AHWB0581 | Fitting | 80138- | |
| 33 | 01010-81625 | Bolt | 80138- | |
| 34 | 01643-31645 | Washer | 80138- | |
| 35 | 561-61-65530 | Clip | 80138- | |
| 36 | 561-61-65540 | Insulator | 80138- | |
| 37 | 01010-81020 | Bolt | 80138- | |
| 38 | 01643-31032 | Washer | 80138- | |
| 39 | 562-03-31220 | Shim | 80138- | |
| 40 | 562-03-31230 | Shim | 80138- | |
| 41 | 01010-82050 | Bolt | 80138- | |
| 42 | 01643-32060 | Washer | 80138- |
