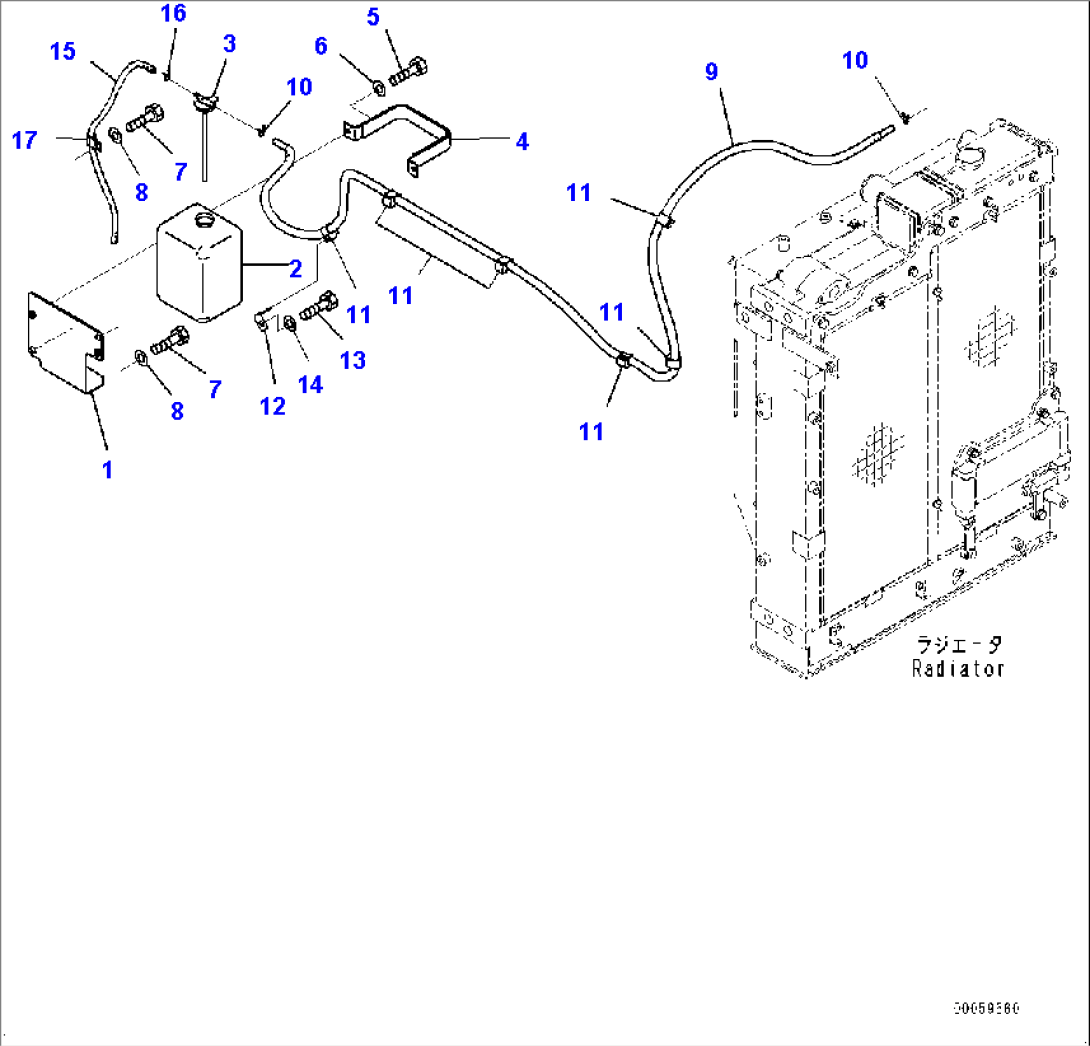

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-03-21311 | Bracket | 24510- | |
| 2 | 203-03-61640 | Tank | 24510- | |
| 3 | 205-03-71532 | Cap | 24510- | |
| 3 | 205-03-71540 | Packing | 24510- | |
| 4 | 203-03-56650 | Bracket | 24510- | |
| 5 | 01010-80816 | Bolt | 24510- | |
| 6 | 01643-30823 | Washer | 24510- | |
| 7 | 01010-81220 | Bolt | 24510- | |
| 8 | 01643-31232 | Washer | 24510- | |
| 9 | 22B-03-21641 | Hose Assembly | 24510- | |
| 10 | 206-03-43340 | Clip | 24510- | |
| 11 | 08211-11320 | Clip | 24510- | |
| 12 | 08057-14012 | Clip | 24510- | |
| 13 | 01010-81220 | Bolt | 24510- | |
| 14 | 01643-31232 | Washer | 24510- | |
| 15 | 208-03-58290 | Hose | 24510- | |
| 16 | 206-03-43340 | Clip | 24510- | |
| 17 | 04434-51212 | Clip | 24510- |
