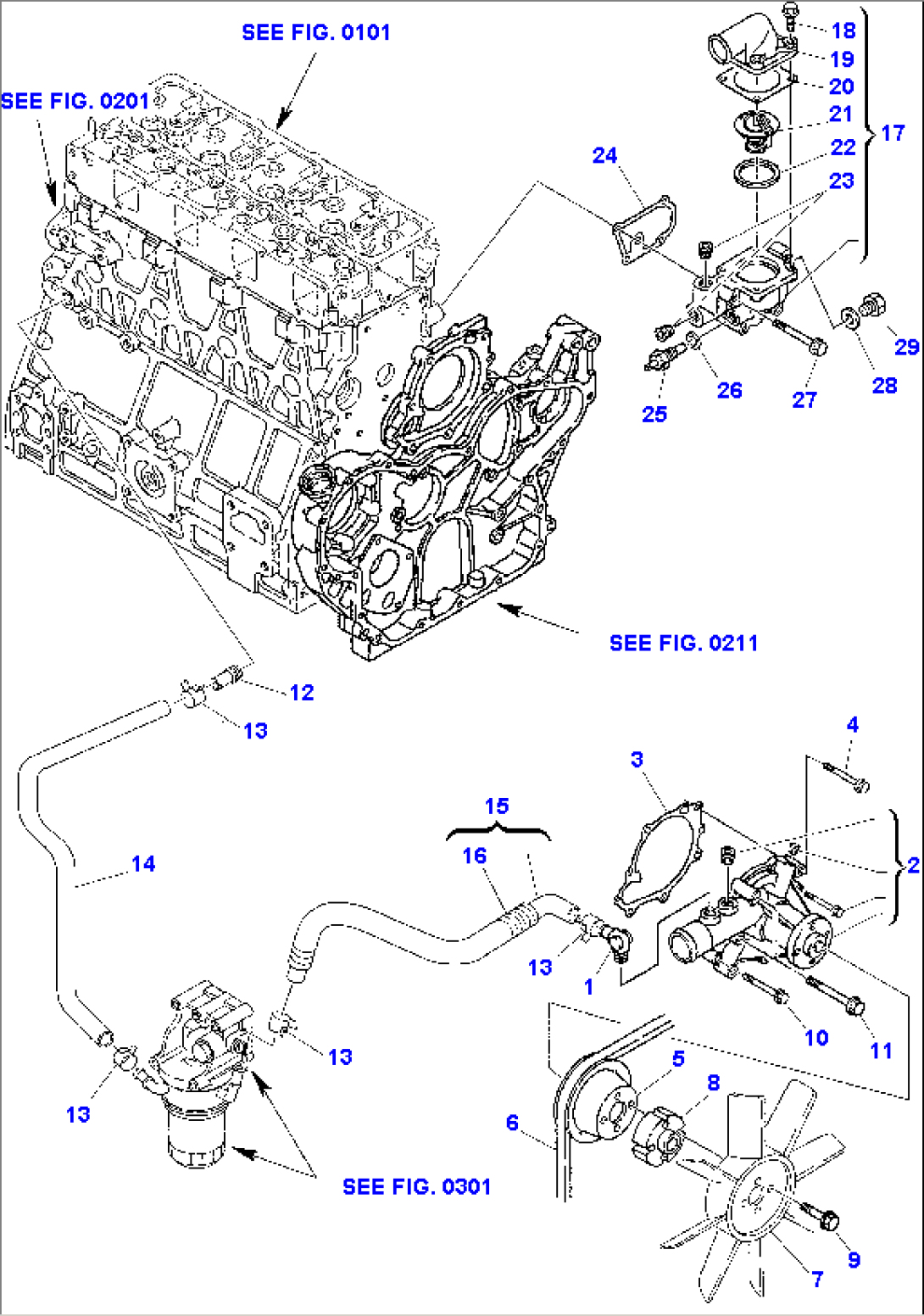

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (871070050) | TURBO ENGINE | ||
| 1 | YM129466-49300 | ELBOW | ||
| 2 | YM123900-42000 | WATER PUMP, ASSY. | ||
| 3 | YM123900-42050 | GASKET | ||
| 4 | YM26106-080552 | BOLT | ||
| 5 | YM123900-42450 | PULLEY | ||
| 6 | YM123900-42480 | V-BELT | ||
| 7 | YM123910-44740 | FAN | ||
| 8 | YM123900-44760 | SPACER | ||
| 9 | YM26106-100452 | BOLT | ||
| 10 | YM26106-060502 | BOLT | ||
| 11 | YM26106-080702 | BOLT | ||
| 12 | YM121851-11970 | PIPE | ||
| 13 | YM23000-025000 | COLLAR | ||
| 14 | YM123910-49032 | PIPE | ||
| 15 | YM123910-49600 | PIPE | ||
| 16 | YM123910-49610 | PROTECTION | ||
| 17 | YM123910-49800 | THERMOSTAT CASE, ASSY. | ||
| 18 | YM26106-080702 | BOLT | ||
| 19 | YM123910-49530 | COVER | ||
| 20 | YM124610-49291 | GASKET | ||
| 21 | YM123911-48620 | THERMOSTAT | ||
| 22 | YM123500-49550 | GASKET | ||
| 23 | YM23876-030000 | PLUG | ||
| 24 | YM123900-49820 | GASKET | ||
| 25 | YM121250-44901 | WATER TEMPERATURE TRANSMITTER (ALARM) | ||
| 26 | YM124465-44950 | GASKET | ||
| 27 | YM26106-080602 | BOLT | ||
| 28 | YM124465-44950 | GASKET | ||
| 29 | YM121450-42450 | PLUG | ||
| SEE FIG. 0101 | ||||
| SEE FIG. 0201 | ||||
| SEE FIG. 0211 | ||||
| SEE FIG. 0301 |
