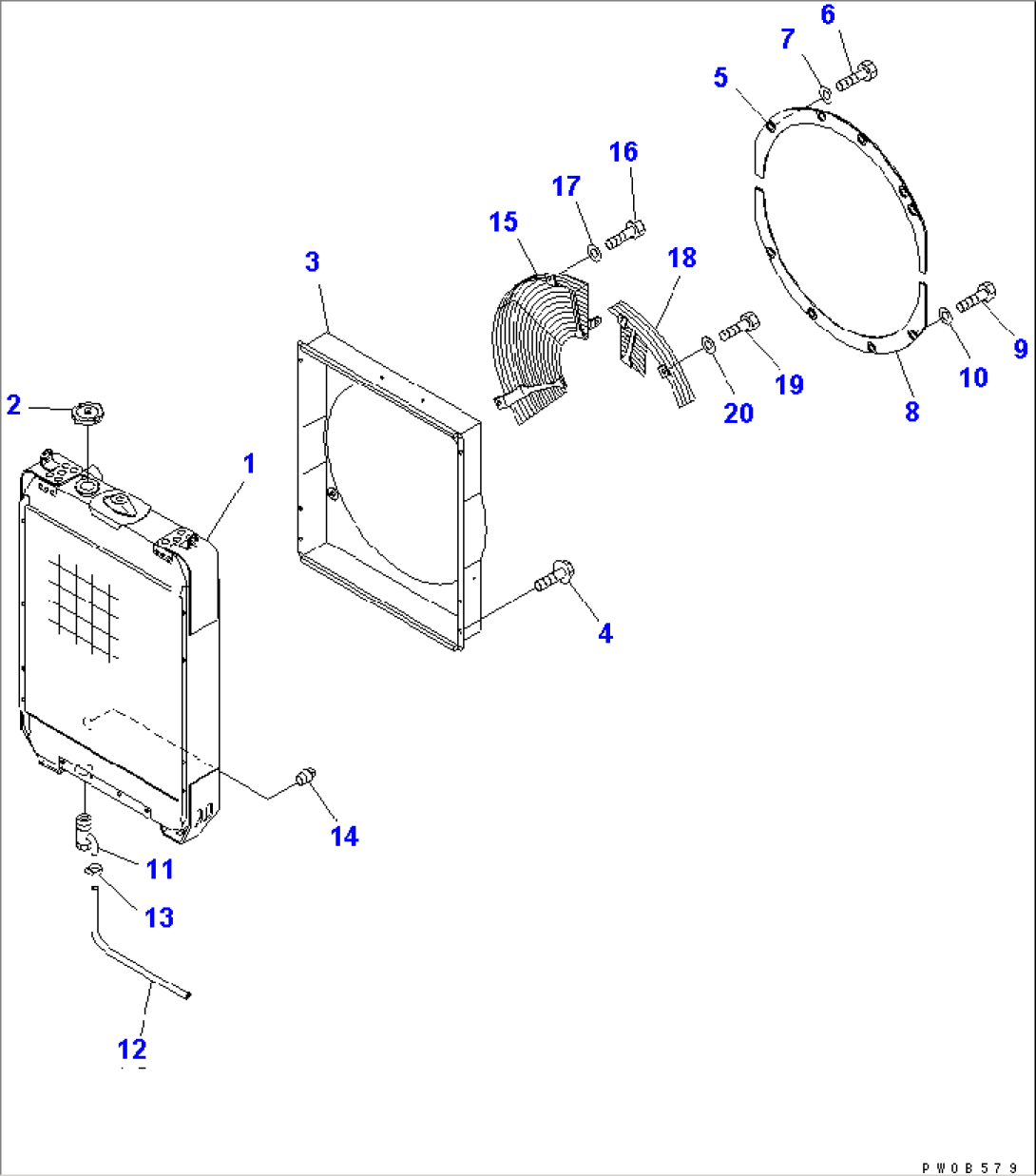

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 124-03-51141 | RADIATOR CORE ASS'Y | B30001- | |
| 2 | 114-03-48160 | CAP | B30001- | |
| 3 | 124-03-61122 | SHROUD | B30001- | |
| 4 | 01435-20814 | BOLT | B30001- | |
| 5 | 124-03-61522 | COVER | B30001- | |
| 6 | 01010-81030 | BOLT | B30001- | |
| 7 | 01643-31032 | WASHER | B30001- | |
| 8 | 124-03-61532 | COVER | B30001- | |
| 9 | 01010-81030 | BOLT | B30001- | |
| 10 | 01643-31032 | WASHER | B30001- | |
| 11 | 07730-50004 | VALVE | B30001- | |
| 12 | 07270-01525 | TUBE | B30001- | |
| 13 | 07280-01920 | CLAMP | B30001- | |
| 14 | 07042-70415 | PLUG | B30001- | |
| 15 | 124-03-61132 | GUARD | B30001- | |
| 16 | 01010-81030 | BOLT | B30001- | |
| 17 | 01643-31032 | WASHER | B30001- | |
| 18 | 124-03-61152 | GUARD | B30001- | |
| 19 | 01010-81030 | BOLT | B30001- | |
| 20 | 01643-31032 | WASHER | B30001- |
