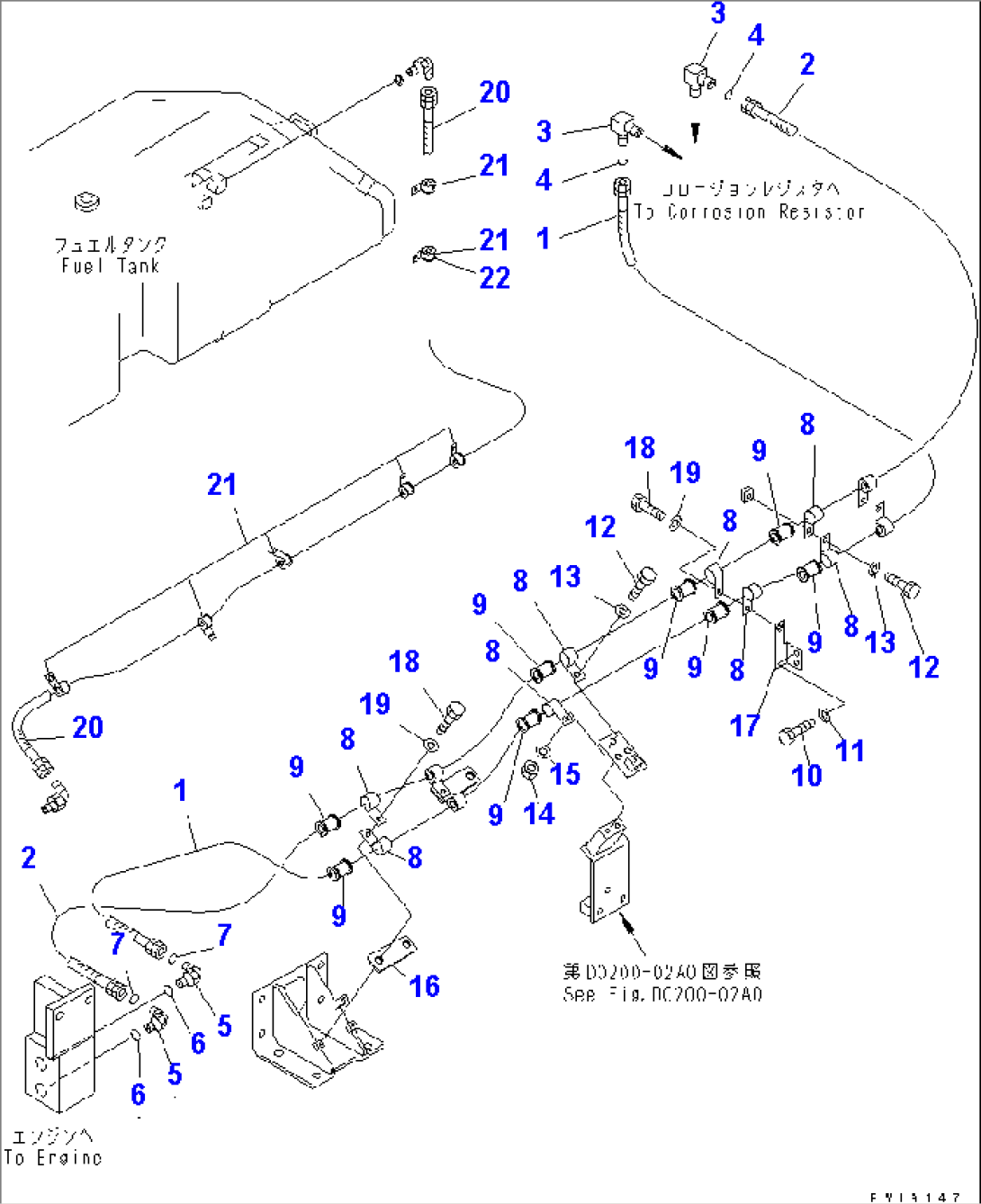

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02762-00323 | HOSE | 10101-@ | |
| 2 | 02762-00324 | HOSE | 10101-@ | |
| 3 | 19M-01-31140 | ELBOW | 10101-@ | |
| 4 | 02896-11009 | O-RING | 10101-@ | |
| 5 | 02782-10315 | ELBOW | 10101-@ | |
| 6 | 07002-12034 | O-RING | 10101-@ | |
| 7 | 02896-11009 | O-RING | 10101-@ | |
| 8 | 04434-52512 | CLIP | 10101-10103 | |
| 9 | 07095-20314 | CUSHION | 10101-@ | |
| 10 | 01010-81225 | BOLT | 10101-10103 | |
| 11 | 01643-31232 | WASHER | 10101-10103 | |
| 12 | 01010-81220 | BOLT | 10101-@ | |
| 13 | 01643-31232 | WASHER | 10101-@ | |
| 14 | 01580-11210 | NUT | 10101-@ | |
| 15 | 01643-31232 | WASHER | 10101-@ | |
| 16 | 154-Z11-5340 | BRACKET | 10101-10103 | |
| 17 | 20K-68-11160 | PLATE | 10101-10103 | |
| 18 | 01010-81225 | BOLT | 10101-10103 | |
| 19 | 01643-31232 | WASHER | 10101-10103 | |
| 20 | 07102-20230 | HOSE | 10101-10103 | |
| 21 | 04434-51912 | CLIP | 10101-10103 | |
| 22 | 07095-20213 | CUSHION | 10101-10103 |
