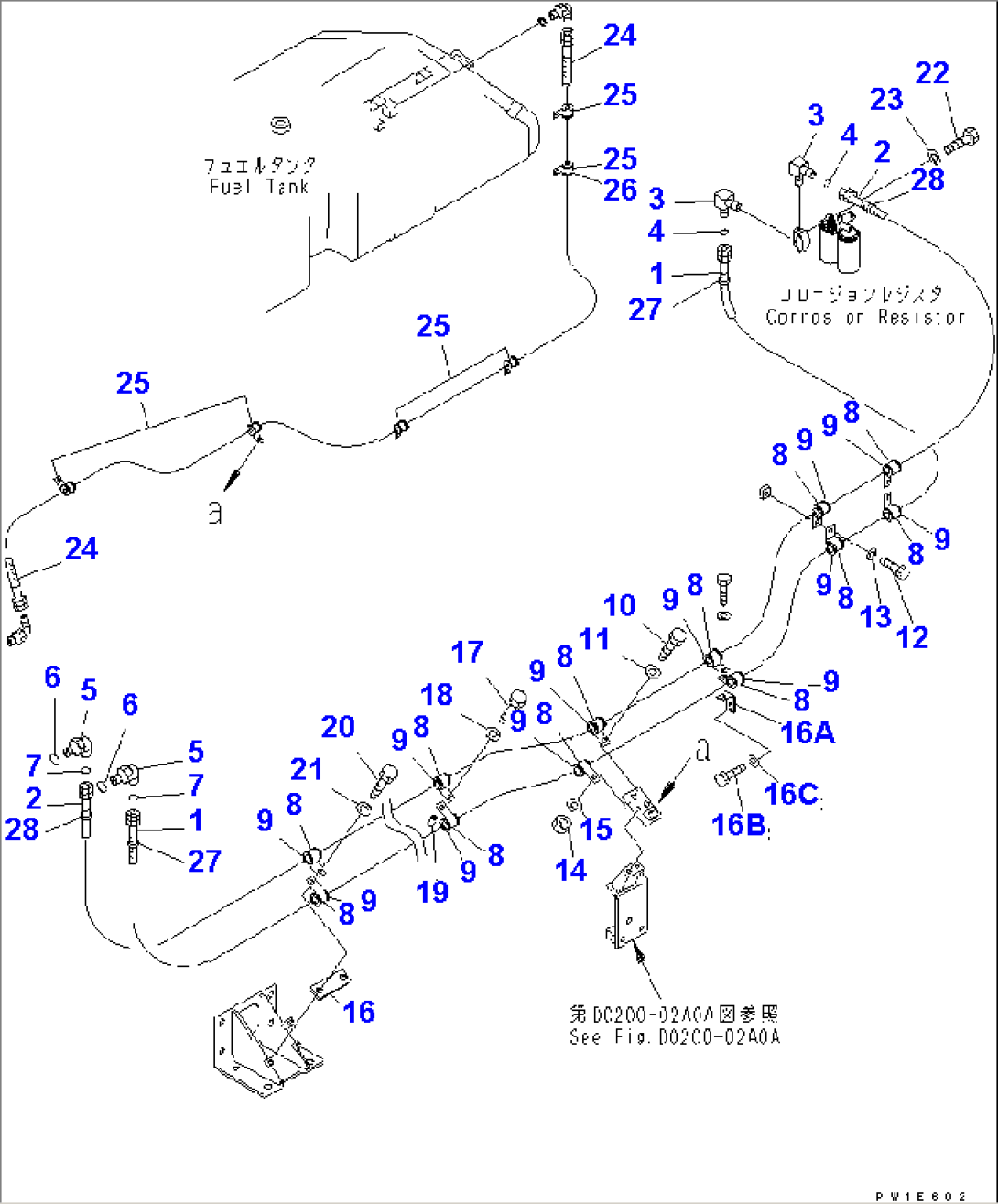

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02762-00323 | HOSE | 10101- | |
| 2 | 02762-00324 | HOSE | 10101- | |
| 3 | 19M-01-31140 | ELBOW | 10101- | |
| 4 | 02896-11009 | O-RING | 10101- | |
| 5 | 02782-10315 | ELBOW | 10101- | |
| 6 | 07002-12034 | O-RING | 10101- | |
| 7 | 02896-11009 | O-RING | 10101- | |
| 8 | 04434-52112 | CLIP | 10104- | |
| 9 | 07095-20314 | CUSHION | 10101- | |
| 10 | 01010-81225 | BOLT | 10104- | |
| 11 | 01643-31232 | WASHER | 10104- | |
| 12 | 01010-81220 | BOLT | 10101- | |
| 13 | 01643-31232 | WASHER | 10101- | |
| 14 | 01580-11210 | NUT | 10101- | |
| 15 | 01643-31232 | WASHER | 10101- | |
| 16 | 154-Z11-5340 | BRACKET | 10104- | |
| 16A | 196-61-31490 | BRACKET | 10104- | |
| 16B | 01010-81225 | BOLT | 10104- | |
| 16C | 01643-31232 | WASHER | 10104- | |
| 17 | 01010-81250 | BOLT | 10104- | |
| 18 | 01643-31232 | WASHER | 10104- | |
| 19 | 195-33-11220 | SPACER | 10104- | |
| 20 | 01010-81230 | BOLT | 10105- | |
| 21 | 01643-31232 | WASHER | 10105- | |
| 22 | 01010-81080 | BOLT | 10104- | |
| 23 | 01643-31032 | WASHER | 10104- | |
| 24 | 07102-20234 | HOSE | 10104- | |
| 25 | 04434-51912 | CLIP | 10104- | |
| 26 | 07095-20213 | CUSHION | 10104- | |
| 27 | 20Y-62-22820 | BAND, BLUE | 10104- | |
| 28 | 20Y-62-22850 | BAND, GREEN | 10104- |
