| Item | Part No. | Part Name | Qty | Serial No. |
| 10 | BW252267 | SHAFT | 311001- | |
| 20 | BW152940 | O-RING | 311001- | |
| 90 | BW252030 | GEAR | 311001- | |
| 100 | BW252031 | BOLT | 311001- | |
| 110 | BW252032 | BEARING | 311001- | |
| 114 | BW252033 | SHIM | 311001- | |
| 170 | BW252034 | WASHER | 311001- |
- Главная
- Каталог запчастей
- Самосвалы
- Ha270 1 s/n 65226 up
- Torque converter and transmission
- Counter shaft (t/m no.4644 026 063)(#311001 )
Поиск по каталогу

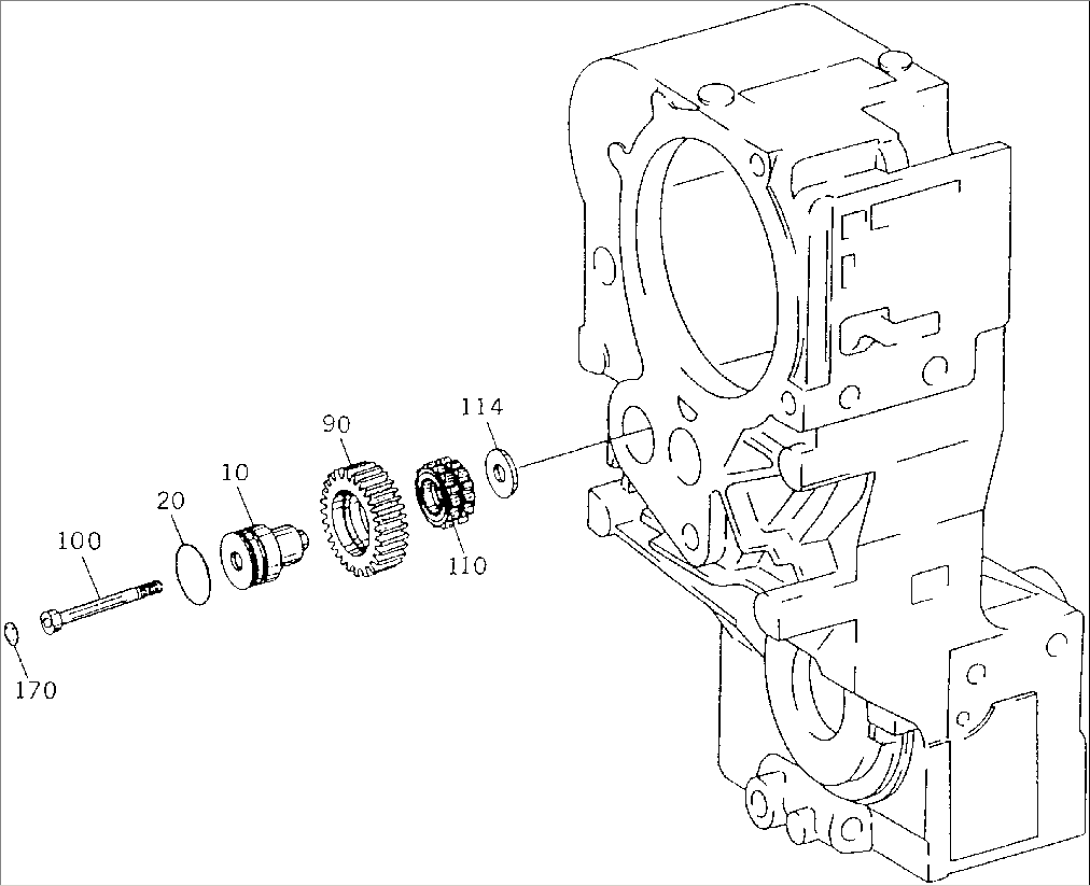

COUNTER SHAFT (T/M NO.4644 026 063)(#311001-)
