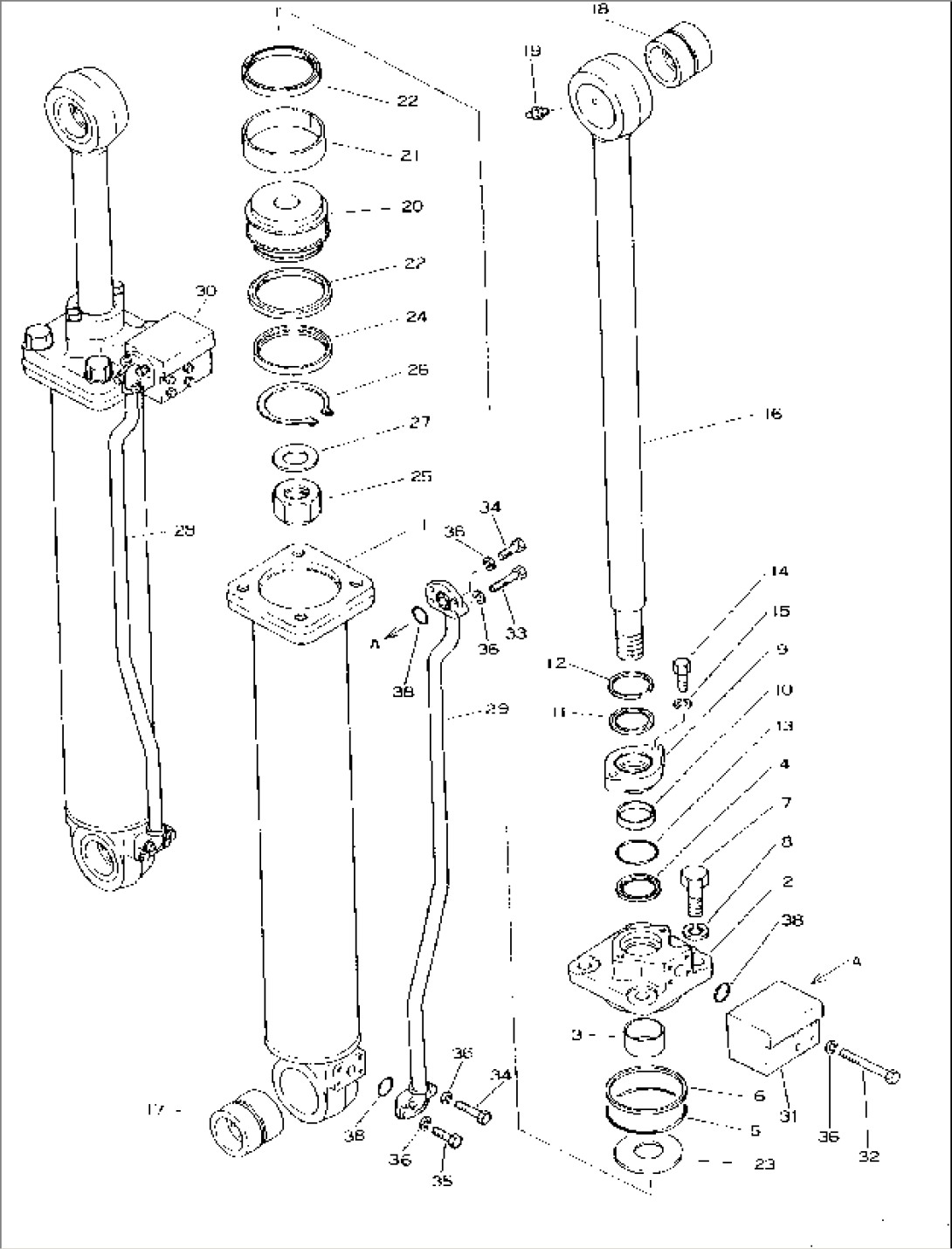

| Item | Part No. | Part Name | Qty | Serial No. |
| 176-63-48100 | CYLINDER ASS'Y,REAR | 15686- | ||
| 176-63-48200 | CYLINDER ASS'Y,FRONT | 15686- | ||
| 1 | 176-63-48140 | CYLINDER | 15686- | |
| 2 | 131-63-32131 | HEAD,CYLINDER | 15686- | |
| 3 | 07177-05030 | BUSHING | 15686- | |
| 4 | 707-51-50110 | PACKING | 15686- | |
| 5 | 07000-12115 | O-RING | 15686- | |
| 6 | 07146-02116 | RING,BACK UP | 15686- | |
| 7 | 01010-82260 | BOLT | 15686- | |
| 8 | 01602-02268 | WASHER,SPRING | 15686- | |
| 9 | 12F-63-13330 | GLAND | 15686- | |
| 10 | 07177-05012 | BUSHING | 15686- | |
| 11 | 07016-00507 | SEAL,DUST | 15686- | |
| 12 | 07179-00069 | RING,SNAP | 15686- | |
| 13 | 07000-03065 | O-RING | 15686- | |
| 14 | 01010-81240 | BOLT | 15686- | |
| 15 | 01643-51232 | WASHER,SPRING | 15686- | |
| 16 | 176-63-48120 | ROD,PISTON | 15686- | |
| 17 | 176-63-29381 | BUSHING | 15686- | |
| 18 | 176-63-29481 | BUSHING | 15686- | |
| 19 | 07020-00000 | FITTING,GREASE | 15686- | |
| 20 | 131-63-32350 | PISTON | 15686- | |
| 21 | 07155-01230 | RING,WEAR | 15686- | |
| 22 | 707-42-12012 | PACKING,PISTON | 15686- | |
| 23 | 707-40-12010 | RETAINER | 15686- | |
| 24 | 131-63-32270 | RETAINER | 15686- | |
| 25 | 07165-13941 | NUT,NYLON | 15686- | |
| 26 | 04069-00952 | RING,SNAP | 15686- | |
| 27 | 131-63-32360 | WASHER | 15686- | |
| 28 | 176-63-48190 | TUBE,L.H. | 15686- | |
| 29 | 176-63-48290 | TUBE,R.H. | 15686- | |
| 30 | 176-62-13240 | ELBOW,L.H. | 15686- | |
| 31 | 176-62-13250 | ELBOW,R.H. | 15686- | |
| 32 | 01010-80895 | BOLT | 15686- | |
| 33 | 01010-81245 | BOLT | 15686- | |
| 34 | 01010-80845 | BOLT | 15686- | |
| 35 | 01010-80835 | BOLT | 15686- | |
| 36 | 01643-50823 | WASHER,SPRING | 15686- | |
| 37 | 01643-51232 | WASHER,SPRING | 15686- | |
| 38 | 07000-13025 | O-RING | 15686- |
